The key 7mm PRC case dimensions include a maximum case length of 2.280 inches (57.91 mm) and a maximum overall cartridge length of 3.340 inches (84.84 mm). The case features a 0.532-inch rim diameter, a 0.532-inch base diameter, a 0.515-inch shoulder diameter, and a maximum neck diameter of 0.315 inches. The neck length measures approximately 0.270 inches to securely hold heavy 0.284-inch caliber projectiles. When reviewing these measurements, note that published dimensions may include nominal values, maximum limits, or specific tolerances depending on the specification source. These exact dimensions allow the cartridge to fit perfectly inside standard long-action rifle magazines while pushing long, high-ballistic-coefficient bullets.

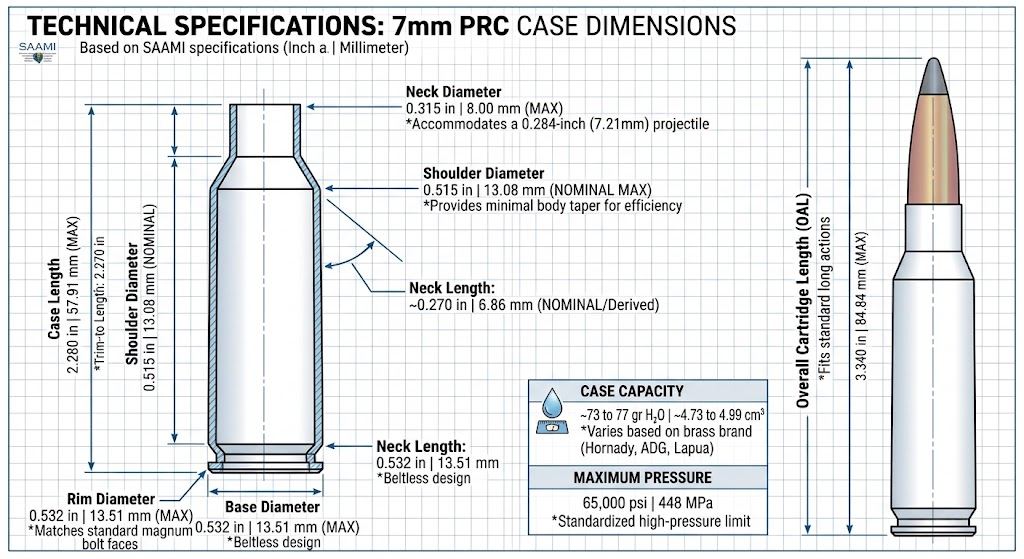

7mm PRC Case Dimensions
| Case Dimension | Inches | Millimeters | Specification Type | Source | Notes |
| Case Length | 2.280 | 57.91 | Maximum | SAAMI | Trim-to length is typically 2.270″ |
| Rim Diameter | 0.532 | 13.51 | Maximum | SAAMI | Matches standard magnum bolt faces |
| Base Diameter | 0.532 | 13.51 | Maximum | SAAMI | Beltless design |
| Shoulder Diameter | 0.515 | 13.08 | Nominal Maximum | SAAMI | Provides minimal body taper for efficiency |
| Neck Diameter | 0.315 | 8.00 | Maximum | SAAMI | Accommodates a 0.284-inch projectile |
| Neck Length | ~0.270 | 6.86 | Nominal | Derived | Ensures adequate neck tension |
| Shoulder Angle | 30° | N/A | Nominal | SAAMI | Promotes consistent powder ignition |
| Overall Cartridge Length | 3.340 | 84.84 | Maximum | SAAMI | Fits standard long actions |
| Case Capacity | ~73 to 77 gr H2O | ~4.73 to 4.99 cm³ | Measured Range | Industry / Mfg | Varies based on brass brand (Hornady, ADG, Lapua) |
| Maximum Pressure | 65,000 psi | 448 MPa | Maximum Average | SAAMI | Standardized high-pressure limit |
Understanding The 7mm PRC Case Dimensions
To fully grasp how the 7mm Precision Rifle Cartridge operates, it helps to understand what each specific measurement dictates inside the firearm:
- Case length: Measured from the base of the rim to the case mouth, this dictates how far the brass extends into the chamber.
- Rim diameter: The width of the extraction rim at the very bottom of the case. It utilizes the standard 0.532-inch magnum rim, allowing compatibility with standard magnum bolt faces.
- Base diameter: The width of the case body just above the extractor groove. The 7mm PRC is beltless, meaning the body diameter stays at 0.532 inches rather than shrinking down ahead of a belt.
- Shoulder diameter: The width of the case right before it tapers inward. At 0.515 inches, the case has very little taper, maximizing powder capacity.
- Neck diameter: The outside diameter of the case mouth once a bullet is seated.
- Neck length: The straight portion of the case that grips the bullet. A sufficient neck length ensures adequate tension for long, heavy projectiles.
- Shoulder geometry: The 30-degree angle that stops the cartridge in the chamber, establishing proper headspace.
- Overall cartridge length: The total length of the assembled round (brass plus bullet). This must not exceed 3.340 inches to feed reliably from standard long-action magazines.
- Case capacity: The internal volume of the case, typically measured in grains of water (H2O), dictating how much powder can be safely loaded.
7mm PRC Case Dimensions In Inches And Millimeters
A reliable 7mm PRC dimensions chart makes conversions simple. Here are the primary 7mm PRC dimensions in mm and inches, reflecting official maximum and nominal tolerances:
| Dimension | Inches | Millimeters |
| Maximum Case Length | 2.280″ | 57.91 mm |
| Base Diameter | 0.532″ | 13.51 mm |
| Rim Diameter | 0.532″ | 13.51 mm |
| Shoulder Diameter | 0.515″ | 13.08 mm |
| Neck Diameter | 0.315″ | 8.00 mm |
| Overall Cartridge Length | 3.340″ | 84.84 mm |
7mm PRC Case Length
The SAAMI maximum 7mm PRC case length is standardized at 2.280 inches (57.91 mm). Under the intense pressure of firing (65,000 psi), fired and resized cases will flow and stretch. If the case elongates past 2.280 inches, the case mouth can pinch against the end of the chamber, dangerously spiking internal pressure. For this reason, reloaders typically use a trim-to length of 2.270 inches to ensure consistent chamber fit and safe ammunition performance.
7mm PRC Base And Rim Dimensions
The 7mm PRC utilizes a standard 0.532-inch magnum rim, which means it operates flawlessly with existing magnum bolt faces common to rifles chambered in 7mm Remington Magnum or 300 Winchester Magnum. The critical difference is the base diameter. Traditional belted magnums shrink down ahead of the belt, but the 7mm PRC is a beltless design. The base diameter remains at a robust 0.532 inches just ahead of the extractor groove, granting the cartridge superior powder capacity and smoother feeding characteristics.
7mm PRC Shoulder And Neck Dimensions
The 7mm PRC uses a modernized 30-degree shoulder angle. The shoulder diameter sits at 0.515 inches, which prevents excessive body taper and promotes uniform powder ignition. The case steps down to a maximum neck diameter of 0.315 inches to securely hold a 0.284-inch (7mm) projectile. This geometry establishes extremely precise headspacing on the shoulder rather than a belt, which aligns the cartridge perfectly with the bore for enhanced accuracy.
7mm PRC Case Capacity
Internal 7mm PRC case capacity is vast but not entirely uniform across manufacturers. Depending on the brass brand and the thickness of the case walls, capacity typically ranges between 73 and 77 grains of water (H2O).
Hornady brass typically offers a higher capacity closer to 76 or 77 grains, while thicker-walled brass from boutique manufacturers like ADG or Lapua may measure closer to 73 or 74 grains. This variance is critical for reloaders, as swapping from a high-capacity case to a low-capacity case without reducing the powder charge can result in dangerous overpressure spikes.
7mm PRC Case Dimensions vs 7mm Remington Magnum
While both fire 0.284-inch projectiles, the 7mm PRC was designed to solve the dimensional shortcomings of the older belted 7mm Remington Magnum. Below is a dimensional comparison:
| Dimension | 7mm PRC | 7mm Remington Magnum | Source |
| Case Length | 2.280″ (57.91 mm) | 2.500″ (63.50 mm) | SAAMI |
| Rim Diameter | 0.532″ (13.51 mm) | 0.532″ (13.51 mm) | SAAMI |
| Base Diameter | 0.532″ (beltless) | 0.512″ (ahead of belt) | SAAMI |
| Shoulder Diameter | 0.515″ (13.08 mm) | 0.491″ (12.47 mm) | SAAMI |
| Neck Diameter | 0.315″ (8.00 mm) | 0.315″ (8.00 mm) | SAAMI |
| Overall Cartridge Length | 3.340″ (84.84 mm) | 3.290″ (83.57 mm) | SAAMI |
| Case Capacity | ~73 to 77 gr H2O | ~82 to 84 gr H2O | Industry Data |
The 7mm Remington Magnum has a longer brass case (2.500 inches) but a shorter overall cartridge length (3.290 inches). This forces long, heavy bullets to be seated deeply inside the 7mm Rem Mag case, eating up powder capacity. The 7mm PRC utilizes a shorter brass case (2.280 inches) but a longer overall length (3.340 inches), allowing heavy bullets to sit far out of the powder column.
7mm PRC Case Dimensions vs 300 PRC
Both cartridges belong to the same modern family developed by Hornady, but they are built for different action lengths.
| Dimension | 7mm PRC | 300 PRC | Source |
| Case Length | 2.280″ (57.91 mm) | 2.580″ (65.53 mm) | SAAMI |
| Rim Diameter | 0.532″ (13.51 mm) | 0.532″ (13.51 mm) | SAAMI |
| Base Diameter | 0.532″ (13.51 mm) | 0.532″ (13.51 mm) | SAAMI |
| Shoulder Diameter | 0.515″ (13.08 mm) | 0.515″ (13.08 mm) | SAAMI |
| Neck Diameter | 0.315″ (8.00 mm) | 0.342″ (8.69 mm) | SAAMI |
| Overall Cartridge Length | 3.340″ (84.84 mm) | 3.700″ (93.98 mm) | SAAMI |
| Case Capacity | ~73 to 77 gr H2O | ~88 to 97 gr H2O | Industry Data |
The 300 PRC requires a true magnum-length action to accommodate its 3.700-inch overall length. The 7mm PRC was intentionally shortened to a 3.340-inch overall length so it can fit comfortably inside standard long-action rifles while still taking advantage of the modern beltless case design.
7mm PRC Cartridge And Chamber Dimensions
A firearm’s chamber must precisely mirror the cartridge to ensure safety and accuracy. The 7mm PRC chamber was drafted with a highly specialized throat to accommodate long-range bullets. The SAAMI specification includes a deliberately long freebore (approximately 0.180 inches) with a tight diameter that measures only slightly larger than the bullet itself.
This tight clearance guarantees the bullet is perfectly aligned with the rifling before it fully leaves the case neck. Furthermore, by headspacing off the 30-degree case shoulder rather than a belt, the cartridge remains perfectly centered in the chamber, which drastically improves extreme long-range precision.
7mm PRC Case Forming And Resizing
The 7mm PRC is part of a cartridge family derived from the .375 Ruger case. Conceptually, producing 7mm PRC brass from a related parent case like the 300 PRC involves pushing the shoulder back significantly, shortening the brass case from 2.580 inches down to 2.280 inches, and necking the brass down from .308 caliber to .284 caliber. Because of the extreme amount of reshaping required, shooters rarely form this brass from other cartridges and instead rely on dedicated 7mm PRC factory brass.
Manufacturer Specifications vs Actual Measurements
When researching 7mm PRC dimensions, it is critical to distinguish between maximum specifications and actual measurements. SAAMI dictates a maximum average pressure of 65,000 psi.
Similarly, the SAAMI maximum case length is 2.280 inches. If you measure a brand new factory cartridge with calipers, you will often find it measures closer to 2.270 inches. Manufacturers intentionally produce brass slightly under the absolute maximum limit. This built-in tolerance guarantees that their ammunition will chamber easily and safely across a vast array of different rifle brands, accounting for minor chamber variations.
Common Questions
What are the 7mm PRC case dimensions?
Key dimensions include a 2.280-inch maximum case length, 0.532-inch rim diameter, 0.532-inch base diameter, 0.515-inch shoulder diameter, and a 0.315-inch maximum neck diameter.
What is the 7mm PRC case length?
The official SAAMI maximum case length for the 7mm PRC is 2.280 inches (57.91 mm).
What is the 7mm PRC base diameter?
The nominal base diameter is 0.532 inches, matching its rim diameter due to its beltless design.
What is the 7mm PRC rim diameter?
The rim diameter is 0.532 inches, allowing it to utilize standard magnum bolt faces.
What is the 7mm PRC shoulder diameter?
The shoulder diameter measures 0.515 inches, meeting the neck at a 30-degree angle.
What is the 7mm PRC neck diameter?
The maximum neck diameter is 0.315 inches to hold a 0.284-inch caliber bullet.
What is the 7mm PRC case capacity?
Depending on the brass manufacturer and wall thickness, capacity ranges from roughly 73 to 77 grains of water (H2O).
How does 7mm PRC case size compare with 7mm Rem Mag?
The 7mm PRC has a shorter case length (2.280 inches vs 2.500 inches), but it lacks a belt, features less body taper, and has a longer overall assembled cartridge length (3.340 inches vs 3.290 inches). This allows the 7mm PRC to seat heavy bullets further out of the powder column.
How does 7mm PRC case size compare with 300 PRC?
They share the same base, rim, and shoulder geometry, but the 7mm PRC case is significantly shorter (2.280 inches vs 2.580 inches) to fit a standard long action rather than a magnum action.
What is the 7mm PRC overall cartridge length?
The maximum overall cartridge length (OAL) is 3.340 inches (84.84 mm), allowing it to cycle in standard long-action rifles.
What is the 7mm PRC maximum pressure?
The SAAMI maximum average pressure for the 7mm PRC is 65,000 psi.
