45-70 Ballistics Chart

A 45-70 Ballistics Chart is a comprehensive reference table that details the velocity, kinetic energy, and trajectory curve of the historic 45-70 Government cartridge over various distances. By reviewing this chart, you can visualize exactly how your heavy, large caliber bullet behaves from the moment it leaves the barrel until it strikes a target downrange. This data allows you to accurately predict bullet drop, compensate for wind drift, and verify that your projectile retains enough energy for an ethical harvest on large, tough game animals.

Shooters, hunters, reloaders, and lever-action rifle enthusiasts use a 45-70 Ballistics Chart to unlock the true potential of this classic cartridge. Introduced in 1873 as a black powder military round for the Springfield Model 1873 “Trapdoor” rifle, the 45-70 has evolved into a premier dangerous game hunting cartridge when loaded with modern smokeless powder. By studying ballistics data, a big-game hunter can confidently take shots on elk, moose, or grizzly bear knowing their bullet will penetrate deeply and deliver massive energy. In this comprehensive guide, you will learn how to analyze ballistics data, choose the right bullet weight, select the optimal zero distance, and understand how the 45-70 performs across different firearm pressure tiers.

45-70 Ballistics Chart

Below is a ballistics table featuring popular factory-loaded ammunition across representative bullet weights and pressure levels. The data represents a standard 24-inch test barrel and assumes a 100-yard zero under standard sea-level atmospheric conditions.

Bullet Weight	Bullet Type	Manufacturer	Muzzle Velocity	Velocity At 100 Yards	Velocity At 200 Yards	Velocity At 300 Yards	Velocity At 400 Yards	Velocity At 500 Yards	Muzzle Energy	Energy At 100 Yards	Energy At 200 Yards	Energy At 300 Yards	Energy At 400 Yards	Energy At 500 Yards	Trajectory At 100 Yards	Trajectory At 200 Yards	Trajectory At 300 Yards	Trajectory At 400 Yards	Trajectory At 500 Yards	Ballistic Coefficient	Sectional Density
250 Grain	FTX LEVERevolution	Hornady	2025 fps	1708 fps	1432 fps	1210 fps	1060 fps	960 fps	2276 ft lbs	1619 ft lbs	1138 ft lbs	813 ft lbs	623 ft lbs	511 ft lbs	0 inches	6.0 inches drop	22.5 inches drop	53.0 inches drop	102.0 inches drop	0.185	0.170
300 Grain	JHP	Winchester	1880 fps	1500 fps	1220 fps	1040 fps	920 fps	830 fps	2354 ft lbs	1499 ft lbs	991 ft lbs	720 ft lbs	563 ft lbs	459 ft lbs	0 inches	8.5 inches drop	31.0 inches drop	72.0 inches drop	136.0 inches drop	0.140	0.204
300 Grain	SJHP	Remington	1810 fps	1440 fps	1180 fps	1010 fps	900 fps	815 fps	2182 ft lbs	1381 ft lbs	927 ft lbs	679 ft lbs	539 ft lbs	442 ft lbs	0 inches	9.2 inches drop	33.5 inches drop	77.0 inches drop	145.0 inches drop	0.130	0.204
325 Grain	FTX LEVERevolution	Hornady	2050 fps	1728 fps	1449 fps	1225 fps	1070 fps	968 fps	3032 ft lbs	2154 ft lbs	1515 ft lbs	1083 ft lbs	827 ft lbs	677 ft lbs	0 inches	5.5 inches drop	21.0 inches drop	49.5 inches drop	95.0 inches drop	0.230	0.221
350 Grain	InterLock FP	Hornady	1900 fps	1572 fps	1302 fps	1102 fps	973 fps	877 fps	2805 ft lbs	1922 ft lbs	1316 ft lbs	943 ft lbs	735 ft lbs	597 ft lbs	0 inches	8.0 inches drop	28.8 inches drop	65.5 inches drop	122.0 inches drop	0.195	0.238
405 Grain	FNB	Rem/Win Standard	1330 fps	1145 fps	1020 fps	930 fps	855 fps	790 fps	1590 ft lbs	1178 ft lbs	935 ft lbs	777 ft lbs	656 ft lbs	561 ft lbs	0 inches	16.5 inches drop	56.0 inches drop	122.0 inches drop	220.0 inches drop	0.214	0.276
405 Grain	JFP Heavy (Marlin/Ruger)	Buffalo Bore	2000 fps	1675 fps	1395 fps	1180 fps	1035 fps	940 fps	3597 ft lbs	2523 ft lbs	1750 ft lbs	1252 ft lbs	961 ft lbs	793 ft lbs	0 inches	6.8 inches drop	25.5 inches drop	58.0 inches drop	110.0 inches drop	0.214	0.276
430 Grain	Hard Cast Heavy	Buffalo Bore	1925 fps	1625 fps	1360 fps	1155 fps	1020 fps	930 fps	3537 ft lbs	2520 ft lbs	1765 ft lbs	1272 ft lbs	993 ft lbs	825 ft lbs	0 inches	7.5 inches drop	27.5 inches drop	62.0 inches drop	118.0 inches drop	0.225	0.293
500 Grain	FMJ Heavy	Underwood	1650 fps	1430 fps	1240 fps	1080 fps	970 fps	890 fps	3022 ft lbs	2270 ft lbs	1707 ft lbs	1295 ft lbs	1045 ft lbs	880 ft lbs	0 inches	10.5 inches drop	37.0 inches drop	82.0 inches drop	150.0 inches drop	0.280	0.341

Understanding The Chart

A ballistics chart displays several technical variables that dictate how a round performs downrange. Breaking down these metrics helps clarify the flight characteristics of the 45-70 Government.

Muzzle Velocity

Muzzle velocity is the speed at which the bullet exits the barrel, measured in feet per second. In the 45-70, muzzle velocity varies significantly depending on the pressure class of the ammunition. Traditional trapdoor-safe loads launch heavy bullets at 1100 to 1330 fps, whereas high-pressure modern loads for Ruger No. 1 or modern Marlin 1895 rifles push bullets at 1900 to 2050 fps.

Retained Velocity

Retained velocity measures the speed of the projectile at designated points downrange. Because 45-70 bullets feature wide flat noses or blunt profiles, they experience significant aerodynamic drag. As a result, retained velocity drops steadily, causing projectiles to lose speed faster than streamlined bottleneck rifle cartridges.

Kinetic Energy

Kinetic energy represents the striking force of the projectile, expressed in foot-pounds. Energy is calculated using both the bullet’s mass and its velocity. Standard 45-70 trapdoor loads produce roughly 1500 to 1600 foot-pounds of energy at the muzzle, while high-pressure “+P” loads generate well over 3500 foot-pounds, providing stopping power for large and dangerous game at short to medium ranges.

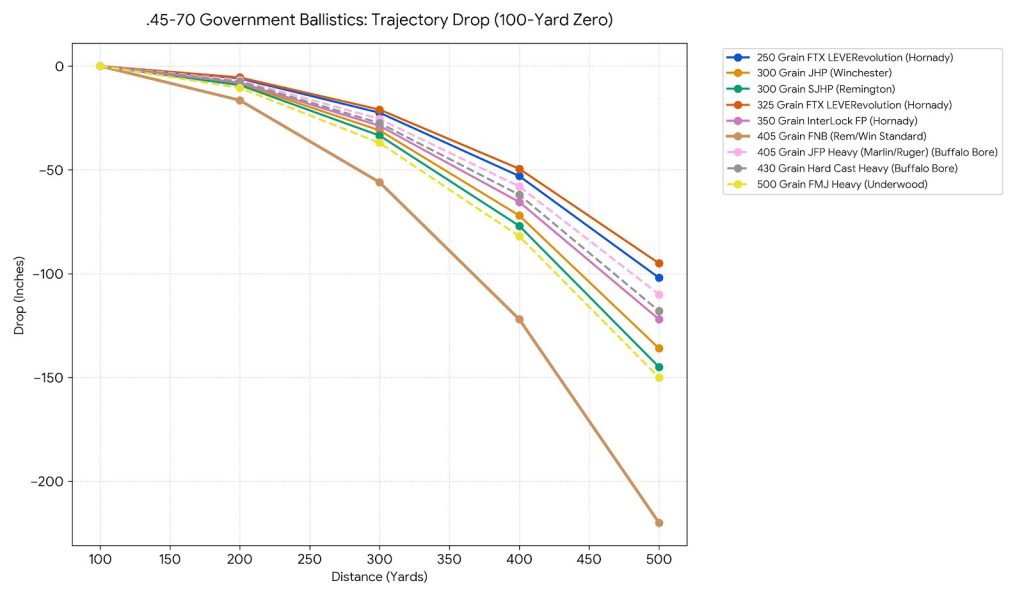

Trajectory

Trajectory details the flight path of the bullet relative to the sight line, tracking drop or elevation in inches. The 45-70 exhibits a curved, arcing trajectory. Standard 405-grain loads drop rapidly past 150 yards, requiring accurate distance estimation or scope turret adjustments for longer shots.

Ballistic Coefficient

The Ballistic Coefficient measures a bullet’s aerodynamic efficiency. Higher numbers indicate better air-cutting capability and less velocity degradation. Traditional 45-70 flat-nose lead bullets have relatively low Ballistic Coefficients ranging between 0.130 and 0.230. Modern rubber-tipped spitzer bullets, like Hornady’s FTX, offer improved ratings near 0.230.

Sectional Density

Sectional density compares a bullet’s mass directly to its diameter. A higher sectional density corresponds to greater penetration potential in target tissues. Heavy 45-70 bullets weighing 405 to 500 grains feature exceptionally high sectional densities (0.276 to 0.341), allowing them to penetrate deeply through thick muscle and bone.

45-70 Pressure Tiers and Action Types

The 45-70 cartridge is unique because commercial ammunition and handloading data are categorized into three distinct pressure tiers based on the strength of the firearm’s action. Using high-pressure ammunition in an older or weaker action can result in firearm failure.

Tier 1: Trapdoor Actions (SAAMI Limit: 28,000 PSI)

This tier includes original and replica Springfield Model 1873 Trapdoor rifles, original Sharps rifles, and original Remington Rolling Blocks. Ammunition in this class stays within the SAAMI pressure ceiling of 28,000 PSI. These loads typically launch 405-grain lead bullets at 1100 to 1330 fps. Standard factory ammunition from Remington, Winchester, and Federal is loaded to Tier 1 levels to remain safe in all functional firearms.

Tier 2: Lever Actions (Pressure Ceiling: 40,000 to 42,000 CUP / PSI)

This tier is designed for modern, strong lever-action rifles such as the Marlin 1895, Henry Lever Action 45-70, and Winchester Model 1886 production models. Ammunition manufacturers like Buffalo Bore, Underwood, and Grizzly produce specialized heavy loads or “+P” ammunition for this category, launching 300 to 430-grain bullets at 1900 to 2050 fps.

Tier 3: Ruger No. 1 and Modern Single Shots (Pressure Ceiling: 50,000+ PSI)

This tier encompasses single-shot rifles with strong actions, primarily the Ruger No. 1 and Browning 1885 High Wall. Reloaders can safely push the 45-70 to its absolute physical limits in these firearms, achieving performance levels that approach or match the 458 Winchester Magnum at short ranges.

Common 45-70 Bullet Weights

The 45-70 fires heavy projectiles ranging from 250 to 500 grains. Selecting the appropriate bullet weight depends on target size, range requirements, and felt recoil tolerance.

250 Grain

The 250-grain weight class features light, fast-moving projectiles often designed with polymer tips or copper construction. These loads offer higher muzzle velocities and flatter trajectories out to 200 yards, along with reduced felt recoil.

300 Grain

The 300-grain weight is one of the most versatile choices for general big-game hunting. Available in jacketed hollow point, soft point, and polymer-tipped options, it strikes a balance between velocity, trajectory, and penetration on deer, black bear, and wild hogs inside 200 yards.

325 Grain

Popularized by Hornady’s LEVERevolution line, the 325-grain FTX bullet incorporates a flexible elastomer tip. This design allows pointed spitzer-style bullets to be loaded safely end-to-end in tubular lever-action magazines, improving aerodynamic efficiency, velocity retention, and trajectory flatness.

350 Grain

The 350-grain bullet is favored by many hunters for elk, moose, and bear. It provides higher sectional density than 300-grain offerings, ensuring deeper penetration through thick muscle and heavy shoulder bones while maintaining practical velocities.

405 Grain

The 405-grain weight is the historical standard for the 45-70. In standard pressure loadings, it delivers mild recoil and dependable performance. In high-pressure “+P” loadings, hard-cast or jacketed 405-grain bullets deliver deep penetration, making them popular for protection against brown bear and grizzly bear in dense cover.

430 to 500 Grain

Heavy weight projectiles from 430 to 500 grains are designed for maximum structural penetration. Hard-cast lead bullets in this category feature non-expanding flat meplats that crush tissue and punch through heavy bone on large game like bison, cape buffalo, and dangerous game species.

Effective Hunting Range

Due to its bullet geometry and arcing trajectory, the effective range of the 45-70 is determined by trajectory drop and energy retention limits.

Whitetail Deer

The 45-70 is an effective cartridge for whitetail deer inside 200 yards. It creates large wound channels and causes minimal meat damage due to moderate impact velocities.

Elk and Moose

For elk and moose, the 45-70 loaded with 325 to 405-grain quality bullets is effective within 200 yards. It delivers deep penetration and heavy bone-breaking performance in timber and dense cover.

Black Bear and Grizzly Bear

The 45-70 is widely used for bear protection and hunting in dense brush. Heavy hard-cast loads weighing 405 to 430 grains carry sufficient kinetic energy and sectional density to penetrate tough hide and heavy skull or shoulder bones. Effective stopping range is typically under 100 yards.

Wild Hogs

Feral hogs feature a dense gristle shield over their shoulders. Heavy 300 to 405-grain 45-70 loads break through the shoulder shield easily, anchoring large boars quickly at close to medium ranges.

Target and Long-Range Shooting

In vintage black powder target competitions (such as Quigley-style matches), shooters engage steel targets out to 800 to 1000 yards using tang sights. Mastering this distance requires precise calculation of bullet drop, wind drift, and time of flight.

Factors That Affect 45-70 Ballistics

Several physical and mechanical variables influence downrange performance.

Barrel Length

Standard test data is based on 24-inch barrels. Modern guide guns and carbines often feature shorter 18.5 or 16.5-inch barrels. Shortening the barrel typically results in a velocity drop of approximately 20 to 30 feet per second per inch removed, along with increased muzzle flash and blast.

Bullet Design (Flat Meplat vs. Flex Tip)

Flat-nosed meplat bullets displace tissue effectively on impact but create high air resistance. Flexible polymer-tipped bullets cut through the air more efficiently, resulting in flatter trajectories and higher retained energy downrange.

Altitude and Air Density

Because 45-70 bullets have low aerodynamic ratings, high elevation significantly reduces drag. Shooting in mountain environments yields flatter trajectories and less velocity loss compared to sea-level shooting.

Wind Drift

Due to low Ballistic Coefficients and relatively slow flight speeds, 45-70 bullets spend more time in the air and are susceptible to crosswind displacement. Reading wind velocity and direction is critical for shots past 100 yards.

Best Zero Distance

Choosing a zero distance depends on optic selection, bullet type, and shooting terrain.

50-Yard Zero

A 50-yard zero works well for brush hunting and iron-sight lever guns. The bullet remains close to the line of sight out to 100 yards and drops predictably beyond that distance.

100-Yard Zero

A 100-yard zero is the standard configuration for rifles equipped with scopes or red dot sights. It provides a clear baseline for tracking holdover at 150 and 200 yards.

150-Yard MPBR Zero

Using a Maximum Point-Blank Range zero (typically zeroed around 130 to 150 yards depending on velocity) keeps the bullet trajectory within a 3-inch rise above or fall below the line of sight from the muzzle out to roughly 175 yards.

45-70 Ballistics Compared To Other Cartridges

The following table compares the 45-70 Government against other popular big-bore and hunting cartridges at 200 yards using standard hunting factory loads.

Cartridge	Muzzle Velocity	Muzzle Energy	Trajectory At 200 Yards	Recoil	Effective Hunting Range	Rifle Action Compatibility
45-70 Govt (Marlin Load)	2000 fps	3597 ft lbs	6.8 inches drop	Heavy	200 Yards	Lever / Single-Shot
450 Bushmaster	2200 fps	2686 ft lbs	4.5 inches drop	Moderate-Heavy	250 Yards	Bolt / AR-15 / Lever
454 Casull (Rifle)	1900 fps	2400 ft lbs	8.0 inches drop	Moderate	150 Yards	Lever / Revolver
458 Winchester Magnum	2500 fps	5000 ft lbs	3.5 inches drop	Extremely Heavy	300 Yards	Bolt / Single-Shot
30-30 Winchester	2390 fps	1902 ft lbs	7.5 inches drop	Light-Moderate	200 Yards	Lever / Bolt

The 45-70 offers heavier bullet mass and higher frontal cross-section than straight-wall options like the 450 Bushmaster, while delivering manageable recoil compared to full-length safari magnums like the 458 Winchester Magnum.

Frequently Asked Questions

What is a 45-70 Ballistics Chart?

A 45-70 Ballistics Chart is a reference table detailing muzzle velocity, downrange speed, kinetic energy, and drop across specific distances to assist with target holdover and cartridge evaluation.

How far can a 45-70 accurately shoot?

With target sights and known distances, 45-70 rifles can engage targets past 800 yards. For big-game hunting, its effective range is generally inside 200 yards due to trajectory drop and velocity loss.

How much does a 45-70 drop at 200 yards?

With a 100-yard zero, high-velocity 325 to 405-grain loads drop approximately 5.5 to 7.5 inches at 200 yards, while low-pressure 405-grain trapdoor loads drop around 16.5 inches.

Is the 45-70 suitable for grizzly bear defense?

Yes. Loaded with heavy hard-cast bullets weighing 405 to 430 grains at high-pressure lever-action levels, the 45-70 provides deep penetration through thick muscle and bone.

What is the best bullet weight for deer hunting with a 45-70?

Bullet weights between 250 and 325 grains are well-suited for deer, providing flatter trajectories, moderate recoil, and rapid expansion.

What pressure limits apply to 45-70 rifles?

SAAMI sets the standard limit at 28,000 PSI for trapdoor actions. Modern lever actions handle up to 40,000–42,000 CUP/PSI, while strong single-shot actions like the Ruger No. 1 can handle 50,000+ PSI.

Conclusion

A 45-70 Ballistics Chart highlights the capabilities of one of America’s oldest active rifle cartridges. From standard pressure trapdoor loads to high-pressure modern lever-action and single-shot offerings, the 45-70 delivers heavy projectile mass, reliable deep penetration, and high stopping power inside 200 yards. Understanding trajectory curvature, retained energy, and pressure limits enables shooters and hunters to select the proper setup for their field requirements.
