44 Magnum Ballistics Chart

A 44 Magnum Ballistics Chart is a specialized numerical data table that tracks the velocity energy bullet drop and aerodynamic efficiency of this legendary big bore revolver cartridge from the muzzle out to standard hunting distances. This comprehensive tracking tool allows handgun hunters and defensive shooters to analyze exactly how different factory loads perform under realistic field conditions. By evaluating these specific flight metrics marksmen can accurately calculate precise optical holdovers while guaranteeing ethical terminal impact forces. Utilizing this specialized data ensures supreme accuracy and maximum stopping power when deploying this incredibly versatile magnum cartridge.

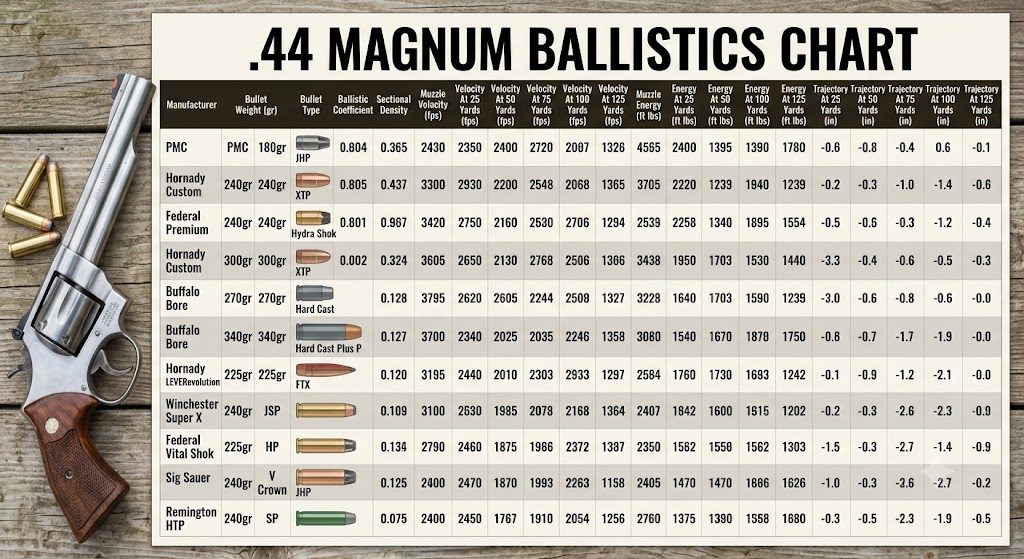

44 Magnum Ballistics Chart

Manufacturer	Bullet Weight	Bullet Type	Ballistic Coefficient	Sectional Density	Muzzle Velocity	Velocity At 25 Yards	Velocity At 50 Yards	Velocity At 75 Yards	Velocity At 100 Yards	Velocity At 125 Yards	Muzzle Energy	Energy At 25 Yards	Energy At 50 Yards	Energy At 75 Yards	Energy At 100 Yards	Energy At 125 Yards	Trajectory At 25 Yards	Trajectory At 50 Yards	Trajectory At 75 Yards	Trajectory At 100 Yards	Trajectory At 125 Yards
PMC	180 gr	JHP	0.140	0.140	1750 fps	1656 fps	1567 fps	1485 fps	1402 fps	1320 fps	1225 ft lbs	1096 ft lbs	981 ft lbs	881 ft lbs	786 ft lbs	696 ft lbs	0.4 in High	0.0 in	2.0 in Low	5.8 in Low	11.5 in Low
Hornady Custom	240 gr	XTP	0.205	0.185	1350 fps	1280 fps	1215 fps	1155 fps	1105 fps	1060 fps	971 ft lbs	873 ft lbs	786 ft lbs	711 ft lbs	651 ft lbs	598 ft lbs	0.8 in High	0.0 in	2.5 in Low	7.1 in Low	13.8 in Low
Federal Premium	240 gr	Hydra Shok	0.175	0.186	1210 fps	1152 fps	1102 fps	1060 fps	1024 fps	985 fps	780 ft lbs	707 ft lbs	647 ft lbs	599 ft lbs	559 ft lbs	517 ft lbs	0.7 in High	0.0 in	3.3 in Low	7.7 in Low	15.2 in Low
Hornady Custom	300 gr	XTP	0.245	0.232	1150 fps	1114 fps	1083 fps	1055 fps	1030 fps	1000 fps	881 ft lbs	828 ft lbs	781 ft lbs	742 ft lbs	706 ft lbs	666 ft lbs	1.7 in High	0.0 in	5.3 in Low	10.9 in Low	18.5 in Low
Buffalo Bore	270 gr	Hard Cast	0.220	0.208	1375 fps	1315 fps	1260 fps	1210 fps	1165 fps	1125 fps	1134 ft lbs	1037 ft lbs	952 ft lbs	878 ft lbs	814 ft lbs	759 ft lbs	0.7 in High	0.0 in	2.3 in Low	6.5 in Low	12.8 in Low
Buffalo Bore	340 gr	Hard Cast Plus P	0.260	0.262	1280 fps	1235 fps	1195 fps	1155 fps	1120 fps	1090 fps	1237 ft lbs	1151 ft lbs	1078 ft lbs	1007 ft lbs	947 ft lbs	897 ft lbs	1.1 in High	0.0 in	3.1 in Low	8.2 in Low	15.5 in Low
Hornady LEVERevolution	225 gr	FTX	0.145	0.174	1410 fps	1340 fps	1275 fps	1215 fps	1160 fps	1110 fps	993 ft lbs	897 ft lbs	812 ft lbs	738 ft lbs	672 ft lbs	615 ft lbs	0.6 in High	0.0 in	2.1 in Low	6.1 in Low	11.9 in Low
Winchester Super X	240 gr	JSP	0.175	0.185	1180 fps	1128 fps	1083 fps	1045 fps	1013 fps	980 fps	742 ft lbs	678 ft lbs	626 ft lbs	583 ft lbs	547 ft lbs	512 ft lbs	1.7 in High	0.0 in	5.3 in Low	10.8 in Low	18.2 in Low
Federal Vital Shok	225 gr	HP	0.164	0.175	1280 fps	1209 fps	1147 fps	1096 fps	1052 fps	1015 fps	818 ft lbs	730 ft lbs	658 ft lbs	600 ft lbs	553 ft lbs	515 ft lbs	0.6 in High	0.0 in	2.8 in Low	6.9 in Low	13.5 in Low
Sig Sauer	240 gr	V Crown JHP	0.185	0.185	1299 fps	1235 fps	1175 fps	1120 fps	1075 fps	1035 fps	899 ft lbs	813 ft lbs	736 ft lbs	668 ft lbs	616 ft lbs	571 ft lbs	0.9 in High	0.0 in	2.8 in Low	7.7 in Low	14.7 in Low
Remington HTP	240 gr	SP	0.186	0.186	1180 fps	1128 fps	1083 fps	1045 fps	1013 fps	980 fps	742 ft lbs	678 ft lbs	626 ft lbs	583 ft lbs	547 ft lbs	512 ft lbs	1.7 in High	0.0 in	5.3 in Low	10.8 in Low	18.2 in Low

Reviewing this exact ballistic layout demonstrates exactly how different bullet designs manage atmospheric drag across a massive handgun distance.

Understanding The 44 Magnum Ballistics Chart

Velocity Analysis

Evaluating the velocity metrics within the table shows that the PMC 180 grain JHP is initially the fastest load leaving the muzzle at 1750 feet per second.

This exceptional starting speed gives the lightweight hollow point projectile a massive advantage across the first fifty yards of open air flight.

However examining the heavier hard cast bullets reveals that extreme weight guarantees excellent momentum retention over extended distances.

The Buffalo Bore 340 grain Hard Cast Plus P starts at a slower 1280 feet per second but retains a highly capable 1090 feet per second at the 125 yard mark.

In contrast the traditional Winchester Super X 240 grain JSP slows down drastically dropping to a mere 980 feet per second by the time it reaches 125 yards.

This specific velocity data proves that for extended long range handgun hunting ultra heavy projectiles preserve their momentum far better than standard weight hunting designs.

Energy Analysis

Muzzle energy dictates the sheer physical shock delivered to a heavy target upon initial bullet impact.

The table data highlights that the Buffalo Bore 340 grain Hard Cast Plus P produces the highest initial strike force with 1237 foot pounds of muzzle energy.

Heavy duty hunting options like the Buffalo Bore 270 grain Hard Cast also start incredibly strong generating 1134 foot pounds of energy at the barrel exit.

Downrange energy retention is where massive ultra heavy bullets truly separate themselves from standard handgun ammunition across vast open spaces.

By the time the projectiles reach the 125 yard line the Buffalo Bore 340 grain load retains an incredible 897 foot pounds of lethal kinetic force.

Meanwhile the Winchester Super X 240 grain JSP bleeds off power incredibly fast arriving at 125 yards with only 512 foot pounds of energy remaining.

High retained energy values guarantee that the bullet maintains enough momentum to crush heavy shoulder bones and penetrate thick hide at extreme distances.

Trajectory Analysis

Reviewing the trajectory profile with a standard fifty yard zero demonstrates the massive gravitational curve this big bore cartridge experiences at extreme ranges.

The flattest shooting factory load in the chart at 125 yards is the PMC 180 grain JHP which exhibits a bullet drop of 11.5 inches.

The Hornady LEVERevolution 225 grain FTX also provides a relatively stellar trajectory dropping just 11.9 inches at the same immense distance.

As distance increases beyond the seventy five yard line older heavy projectile designs begin to fall rapidly due to massive air drag slowing their forward momentum.

The Hornady Custom 300 grain XTP plunges drastically dropping a massive 18.5 inches by the time it reaches the 125 yard target.

Practical holdover estimates using these chart values indicate that shooters using modern lightweight ammunition require significantly less optical dialing than those utilizing slow heavy soft points.

Ballistic Coefficient Analysis

The ballistic coefficient values listed in the table reveal a massive technological divide between traditional hunting ammunition and modern heavy designs.

The Buffalo Bore 340 grain Hard Cast Plus P dominates this vital category with an incredibly high rating of 0.260.

Traditional configurations like the PMC 180 grain JHP feature a much lower aerodynamic rating of just 0.140.

The high rating of the ultra heavy hard cast bullet allows it to slice through dense atmospheric resistance without shedding precious velocity across open valleys.

According to the chart data this massive aerodynamic advantage guarantees that high coefficient bullets arrive at distant targets with heavily reduced lateral wind drift.

Sectional Density Analysis

Sectional density directly influences how stable a bullet remains during extreme long flights and how deeply it penetrates thick targets upon arrival.

The chart confirms that the Buffalo Bore 340 grain projectile possesses the absolute highest sectional density rating of 0.262.

The lighter PMC 180 grain hunting options exhibit a noticeably lower sectional density value of 0.140.

A higher sectional density means the bullet concentrates its massive physical weight over a relatively small cross sectional area forcing it incredibly deep into the vital cavity of targets.

This specific data confirms that marksmen pursuing deep penetration on dangerous game should completely rely on the heavier 300 grain and 340 grain projectiles to maximize kinetic impact.

Best Factory Loads Based On The Chart

For Extreme Long Range Shooting the PMC 180 grain JHP is the absolute best choice due to its massive initial velocity and extremely flat trajectory.

For Precision Hunting the Hornady Custom 240 grain XTP provides a perfectly balanced trajectory with an impressive 0.205 ballistic coefficient.

If Maximum Initial Velocity is your primary goal the PMC 180 grain JHP takes the absolute top spot by reaching 1750 feet per second at the muzzle.

When seeking Maximum Retained Energy at extended distances the Buffalo Bore 340 grain Hard Cast Plus P wins easily by preserving 897 foot pounds of strike force at 125 yards.

For General Purpose Target Shooting the Winchester Super X 240 grain JSP offers incredibly reliable accuracy and moderate recoil that prevents shooter fatigue.

Key Takeaways From The Chart

The fastest factory load in the entire chart at the muzzle is the PMC 180 grain JHP at 1750 feet per second.

The highest initial muzzle energy is produced by the Buffalo Bore 340 grain Hard Cast Plus P at 1237 foot pounds.

The highest retained kinetic energy at 125 yards belongs to the Buffalo Bore 340 grain Hard Cast Plus P at 897 foot pounds.

Common 44 Magnum Bullet Weights

The incredibly versatile powder capacity of this big bore cartridge allows it to utilize a wide spectrum of projectile weights optimized for distinct shooting roles.

180 Grain

The 180 grain projectile weight is a highly specialized lightweight offering designed specifically for maximum muzzle velocity and extreme expansion.

Typical muzzle velocity for this specific weight easily breaks the 1700 feet per second barrier creating a laser flat flight path inside twenty five yards.

The primary advantage of this weight is the incredibly low felt recoil making it exceptionally easy to manage in standard hunting revolvers.

The main disadvantage is that the extremely light mass limits deep penetration making it totally unsuitable for thick skinned heavy game animals.

This specific weight is best applied in general target practice and open country predator control where massive over penetration is not required.

200 Grain

The 200 grain projectile represents a perfectly balanced lightweight option for personal defense and medium game hunting.

Typical muzzle velocity sits comfortably around 1500 feet per second generating an immense hydrostatic shock upon impact.

The primary advantages of 200 grain options are brilliant velocity retention moderate recoil and incredibly rapid expansion in soft tissue.

The primary disadvantage is the massive muzzle blast and loud report which can easily disorient a shooter firing without proper ear protection.

This weight is the absolute ideal choice for defensive carry revolvers and open country whitetail deer hunting where flat trajectories are highly desired.

225 Grain

The 225 grain projectile weight represents a modern highly engineered middle ground for shooters wanting high velocity and better aerodynamic performance.

Typical muzzle velocity is roughly 1280 to 1410 feet per second which translates into incredibly consistent accuracy and heavy terminal force.

The single biggest advantage of this weight is its exceptional balance allowing it to utilize polymer tips for drastically improved flight characteristics.

The primary disadvantage is that factory ammunition utilizing this specific weight can sometimes be difficult to locate on local retail shelves.

This weight is the ultimate choice for marksmen carrying a lever action rifle in the deep woods for versatile wildlife protection.

240 Grain

The 240 grain bullet is the original historical standard weight designed for this cartridge when it was first introduced to the shooting public.

Typical muzzle velocity hovers around 1180 to 1350 feet per second maintaining immense structural momentum and heavy bone crushing power.

The advantage of the 240 grain bullet is its unmatched versatility making it perfectly suitable for everything from target shooting to black bear hunting.

The main disadvantage is a noticeably steeper initial trajectory arc when compared to the hyper fast lightweight hollow point options.

This extreme weight is universally recommended for pursuing medium sized game animals and carrying in bear country for highly reliable penetration.

300 Grain

The 300 grain bullet represents a massive heavy hitting option for commercial factory loaded ammunition in this big bore caliber.

Typical muzzle velocity sits right around 1150 feet per second yielding incredible momentum and massive pass through penetration on large animals.

The major benefit is that it provides excellent sectional density guaranteeing the bullet will smash through heavy shoulders without deflecting entirely off course.

The disadvantage is the massive recoil generated making rapid follow up shots incredibly difficult in lightweight carry revolvers.

This heavyweight class is universally recommended for dedicated handgun hunters pursuing thick skinned animals in dense brush environments.

340 Grain

The 340 grain projectile is an absolute monster designed exclusively for extreme dangerous game defense and ultra deep penetration.

Typical muzzle velocity reaches 1280 feet per second when loaded to extreme overpressure specifications producing devastating terminal results.

The massive advantage is unmatched deep tissue penetration capabilities allowing it to completely pass through massive grizzly bears from end to end.

The main disadvantage is the incredibly punishing recoil which requires extreme physical strength and flawless shooting fundamentals to control effectively.

This extreme weight is strictly reserved for carrying in the most dangerous environments on earth where absolute maximum stopping power is entirely mandatory.

Effective Range

Understanding the realistic physical limits of this legendary cartridge helps shooters select the correct equipment and optical setups for their specific goals.

Target Shooting

For standard paper and steel targets the effective range easily spans from ten yards all the way out to one hundred yards using quality ammunition.

At these extended distances the heavy 240 grain projectile remains comfortably stable keeping its flight path predictable through varying atmospheric conditions.

Extreme Long Range Shooting

When participating in extreme long range activities expert marksmen can successfully push this cartridge out to two hundred yards under perfect weather conditions.

Achieving success at this specific extended distance requires premium high ballistic coefficient ammunition and specialized optical sights mounted to long hunting barrels.

Defensive Applications

For defensive scenarios against massive dangerous predators the effective range is strictly limited to extremely close quarters inside twenty five yards.

At this intimate distance the massive frontal area of the heavy hard cast bullet guarantees immediate central nervous system disruption upon a perfect brain shot.

Competition Shooting

Within local sporting revolver matches and metallic silhouette events the cartridge performs admirably at all standard distances out to two hundred meters.

At extreme distances the massive momentum of the heavy bullets allows veteran shooters to easily topple heavy steel rams that lighter calibers cannot move.

Factors That Affect 44 Magnum Ballistics

External environmental atmospheric variables and physical firearm attributes combine to completely alter how a heavy bullet behaves once it leaves the muzzle.

Barrel Length

Barrel length plays a critical role in determining exactly how much velocity the cartridge can generate before the bullet exits into the open atmosphere.

A standard six inch barrel allows the slow burning magnum powder inside the case to completely ignite maximizing the initial velocity push.

Shorter barrels such as three inch carry configurations can cause a massive loss of velocity which noticeably diminishes hollow point expansion.

Bullet Weight

Bullet weight dictates the core fundamental relationship between quick initial exit speed and late flight momentum conservation over open ground.

Lighter bullets leave the barrel much faster but lose speed quickly due to massive drag whereas heavier bullets start slower but hold their velocity.

Bullet Construction

The physical exterior design of the projectile whether it is an exposed lead core a hollow point or a hard cast flat nose heavily affects flight efficiency.

Solid hard cast bullets penetrate incredibly deep because they absolutely refuse to deform or expand when encountering heavy bone or thick muscle tissue.

Ballistic Coefficient

The ballistic coefficient measures exactly how easily a bullet overcomes raw air resistance during its long journey to the distant target.

A higher ballistic coefficient directly reduces vertical bullet drop mathematically and massively minimizes the lateral drift caused by harsh crosswinds.

Altitude

High altitude mountain environments feature incredibly thin air which drastically reduces the aerodynamic drag forces acting against a flying bullet in motion.

Shooters operating in elevated mountain ranges will notice flatter overall pathways and much higher retained velocities than those shooting near sea level.

Temperature

Air temperature heavily impacts atmospheric density with freezing cold temperatures creating denser air that slows down flying projectiles much faster over distance.

Additionally extreme ammunition temperature fluctuations can completely alter powder burn rates inside the brass cartridge causing unexpected changes in initial velocity.

Wind

Due to the moderate velocity of big bore handgun bullets crosswinds have a profound and massive effect on the downrange trajectory of the heavy projectile.

A strong continuous crosswind will push the bullet sideways over long distances requiring precise windage alignment based on detailed ballistic chart evaluations.

Zero Distance

The specific distance at which a handgun is physically zeroed determines the entire mathematical arc of the flight trajectory relative to the iron sights.

An inappropriate zero distance can cause the bullet to impact several inches high at close range leading to frustrating misses on extremely small targets.

Best Zero Distance

Choosing the absolute correct zero distance establishes an incredibly efficient baseline for maintaining accuracy at various hunting and defensive distances.

25 Yard Zero

A twenty five yard zero is highly popular and considered the absolute gold standard among civilian defensive shooters carrying heavy trail revolvers.

The primary advantage is that it aligns the sights perfectly for close quarters engagements where the vast majority of defensive bear encounters occur.

The main disadvantage is that the bullet will drop noticeably when taking shots at steel targets standing at the one hundred yard line.

This zero is best for general target practice baseline revolver testing and ensuring total mathematical simplicity when practicing close quarters defensive drills.

50 Yard Zero

A fifty yard zero serves as an exceptional general purpose baseline for a wide variety of open country hunting conditions and practical revolver matches.

As demonstrated in our primary chart utilizing a fifty yard zero keeps the bullet path incredibly flat through the first seventy five yards of travel.

The disadvantage is a very slight mid range rise near twenty five yards though it remains small enough to completely ignore when aiming at the vital zone.

This zero is highly recommended for field marksmen who require instant readiness inside seventy five yards without adjusting their iron sights or optics.

75 Yard Zero

A seventy five yard zero is a highly specialized configuration utilized only by hunters operating in open woods with long barreled scoped hunting revolvers.

The massive advantage is that it completely eliminates the need to hold high when engaging distant animals right at the extreme edge of the effective hunting range.

The severe disadvantage is that the bullet flies significantly higher than the line of sight at close distances which guarantees high misses on small targets.

This approach is best reserved for dedicated medium range field shooting where target distances are consistently uniform and always relatively far away.

100 Yard Zero

A one hundred yard zero is utilized exclusively by extreme metallic silhouette competitors firing specialized heavily modified long barrel single action revolvers.

The major benefit of attempting this zero is exploring the absolute maximum trajectory arc that the heavy projectile can physically achieve before hitting the dirt.

The disadvantage is that the shooter must hold significantly under the target when engaging anything inside fifty yards to prevent shooting entirely over it.

This zero is strictly an academic target exercise and should never be applied to practical tactical shooting scenarios or standard bear defense operations.

44 Magnum Compared To Similar Cartridges

To understand exactly where this legendary revolver cartridge stands it helps to compare its performance against other prominent massive big bore options.

Cartridge	Velocity	Energy	Trajectory At 100 Yards	Ballistic Coefficient	Effective Range	Recoil	Overall Performance
44 Magnum	1350 fps	971 ft lbs	7.1 in Low	0.205	125 yd	Heavy	Legendary Big Game Capability
357 Magnum	1450 fps	583 ft lbs	5.8 in Low	0.143	100 yd	Moderate	Extremely Versatile Stopping Power
41 Magnum	1300 fps	788 ft lbs	7.5 in Low	0.170	100 yd	Heavy	Excellent Flat Shooting Alternative
45 Colt	900 fps	450 ft lbs	15.0 in Low	0.160	75 yd	Mild	Historic Soft Shooting Target Round
454 Casull	1600 fps	1700 ft lbs	4.0 in Low	0.200	150 yd	Severe	Absolute Maximum Bear Defense

The major difference shown above is that the legendary big bore cartridge completely dominates the traditional thirty five caliber magnums in raw kinetic energy. It delivers incredible mass making it the premier choice when absolute deep penetration is prioritized over high velocity flat trajectories. When compared to the massive four hundred and fifty four caliber the classic forty four uses significantly less powder and generates far less recoil while still providing excellent terminal performance on large game animals.

Frequently Asked Questions

What is the typical muzzle velocity required for reliable hard cast penetration?

Typical factory hard cast ammunition must exit the muzzle between 1100 and 1300 feet per second to ensure the heavy flat nose penetrates incredibly deep through bone.

How much bullet drop does a 240 grain bullet have at one hundred yards?

With a standard fifty yard zero a typical 240 grain factory cartridge experiences exactly between 6.5 and 10.8 inches of total gravitational drop at one hundred yards.

Which factory load retains velocity best at extreme long range?

The Buffalo Bore 340 grain Hard Cast Plus P retains velocity incredibly well due to its massive heavy physical profile and exceptionally high aerodynamic rating.

Is the cartridge safe to fire in modern lever action rifles?

Yes the rimmed case feeds exceptionally well through tubular magazines and the closed breech of a rifle drastically increases the muzzle velocity and kinetic energy.

What is the average muzzle energy of a standard hunting cartridge?

Average muzzle energy spans from 741 to over 1237 foot pounds making it a highly capable and devastatingly consistent big game hunting round.

Why do lighter bullets drop less at extreme distances in this caliber?

Lighter bullets are pushed to much higher initial velocities which allows them to spend far less time in open air flight where gravity constantly pulls them down.

What is the major difference between firing this cartridge in a three inch versus an eight inch barrel?

A three inch barrel bleeds off massive amounts of pressure reducing velocity drastically whereas an eight inch barrel allows full powder burn for maximum kinetic energy.

Does barrel length significantly change the massive muzzle flash?

Yes short barrels dump unburned powder directly into the open air creating a blinding fireball while long barrels consume the powder internally reducing the visual flash.

What is the best zero distance for a dedicated bear defense carry revolver?

A twenty five yard zero provides the absolute best general purpose baseline keeping all math calculations simple and ensuring dead on accuracy for sudden close quarters engagements.

How does this cartridge compare to the modern ten millimeter semi automatic round?

The magnum revolver cartridge offers vastly superior physical mass and kinetic energy penetrating significantly deeper into heavy barriers than standard ten millimeter defensive loads.
