The 6mm ARC (Advanced Rifle Cartridge) delivers exceptional long-range ballistics from the AR-15 platform by pushing high-BC projectiles to impressive speeds using medium-burning rifle powders.
When firing a standard 108-grain match load, muzzle velocities average approximately 2,530 fps from a 14.5-inch tactical barrel and 2,580 fps from a 16-inch standard barrel.
As barrel length scales upward, velocity reaches approximately 2,630 fps from an 18-inch barrel, 2,680 fps from a 20-inch barrel, and hits a factory-advertised 2,750 fps from a 24-inch precision test platform.
Because the cartridge is designed to maximize the internal powder capacity of an AR-15 magazine well, it requires adequate bore length to fully harness its propellant charge.
It is critical to note that exact muzzle velocity varies by ammunition lot, bullet weight, gas system tuning, chamber tolerances, and environmental test conditions.
Analyzing 6mm ARC barrel length velocity statistics allows shooters to choose the optimal barrel configuration for tactical carbine maneuverability, designated marksman roles, or extreme long-range target shooting.

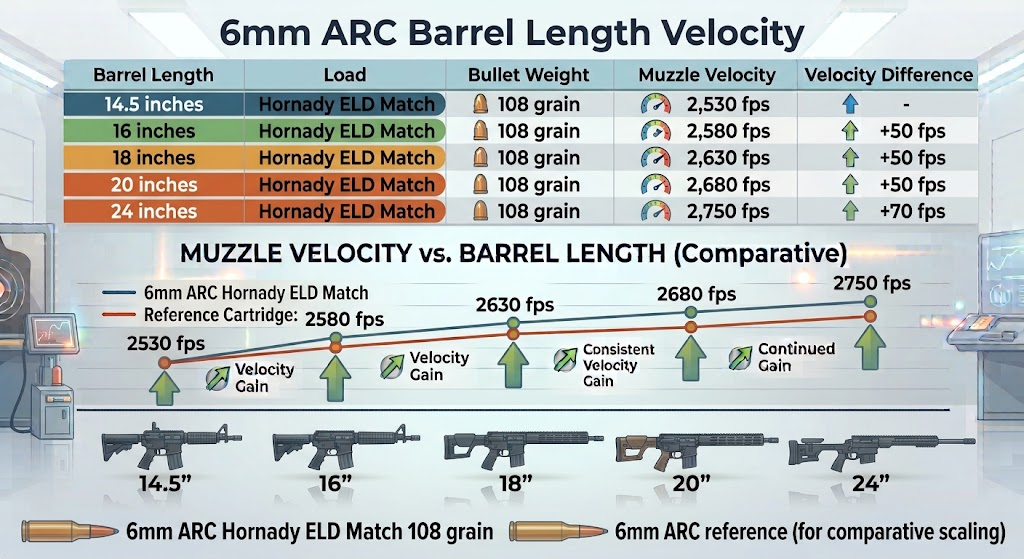

6mm ARC Barrel Length Velocity Chart
| Barrel Length | Load | Bullet Weight | Muzzle Velocity | Velocity Difference |
| 14.5 inches | Hornady ELD Match | 108 grain | 2,530 fps | — |
| 16 inches | Hornady ELD Match | 108 grain | 2,580 fps | +50 fps |
| 18 inches | Hornady ELD Match | 108 grain | 2,630 fps | +50 fps |
| 20 inches | Hornady ELD Match | 108 grain | 2,680 fps | +50 fps |
| 24 inches | Hornady ELD Match | 108 grain | 2,750 fps | +70 fps |
How Much Velocity Does 6mm ARC Gain From Barrel Length?
Chronograph data indicates that the 6mm ARC gains an average of 20 to 30 fps per inch of barrel added across standard AR-15 lengths.
Because the 6mm ARC utilizes a relatively large charge of medium-burning rifle powder to push heavy .243-caliber bullets, it benefits significantly from extended dwell time and bore length. Moving from a compact 14.5-inch tactical carbine up to a 24-inch precision benchrest rifle yields a total velocity gain of roughly 220 fps.
Does Barrel Length Affect 6mm ARC Velocity?
Yes, barrel length drastically affects 6mm ARC velocity, which in turn dictates the maximum effective supersonic range of the cartridge.
A 24-inch barrel pushing a 108-grain bullet at 2,750 fps will keep that high-BC projectile supersonic well past 1,000 yards. Dropping down to a 14.5-inch barrel strips away 220 fps, forcing the bullet to transition into the turbulent transonic zone much earlier in its flight path. If two identical 18-inch barrels record varying speeds, the discrepancy is usually caused by differences in chamber tolerances, gas port sizes bleeding off pressure, or lot-to-lot inconsistencies in factory ammunition.
6mm ARC Supersonic Velocity By Barrel Length
The 6mm ARC is engineered entirely as a high-performance supersonic cartridge, utilizing long, highly aerodynamic bullets to defeat wind drift at distance.
- 103 Grain (ELD-X): Designed for medium game hunting, this load maximizes initial speed for terminal expansion. It achieves approximately 2,800 fps out of a 24-inch barrel and retains roughly 2,630 fps from a 16-inch barrel.
- 105 Grain (BTHP): The Hornady Black factory load is a highly popular target round. It yields roughly 2,750 fps in a 24-inch barrel and approximately 2,590 fps in a 16-inch carbine.
- 108 Grain (ELD Match): The gold standard for extreme-range AR-15 shooting. It launches at roughly 2,750 fps from a 24-inch barrel, retaining enough velocity to buck the wind at 1,000 yards. Out of a short 14.5-inch barrel, it averages 2,530 fps.
6mm ARC Subsonic Velocity By Barrel Length
While AR-15 shooters frequently utilize subsonic ammunition in calibers like the .300 Blackout, there is no commercially viable subsonic 6mm ARC ammunition.
The 6mm ARC case holds too much powder capacity to efficiently run subsonic loads, and standard 1:7 or 1:7.5 barrel twist rates are optimized for extreme velocities. Attempting to artificially download a heavy 108-grain bullet to travel below the 1,125 fps sound barrier would cause erratic powder ignition, massive pressure drops, and dangerous squib loads. A 108-grain .243 bullet traveling at subsonic speeds also produces dismal kinetic energy, rendering the concept ballistically useless.
6mm ARC 14.5 Inch Barrel Velocity
A 14.5-inch barrel is an incredibly compact setup, heavily favored for tactical applications when paired with a pinned and welded suppressor mount.
- 108-Grain Load: Averages roughly 2,530 fps.
- Considerations: Despite the velocity handicap, the 108-grain bullet’s massive ballistic coefficient means this short barrel configuration still vastly outperforms a 16-inch 5.56 NATO in retained energy and wind deflection at 500 yards.
6mm ARC 16 Inch Barrel Velocity
The 16-inch barrel is the legal minimum for standard rifles in the US and serves as the most popular general-purpose hunting length.
- 108-Grain Load: Reaches approximately 2,580 fps.
- Considerations: This length provides a highly maneuverable platform. The powder column is nearly completely combusted, allowing the bullet to generate nearly 1,600 ft-lbs of muzzle energy.
6mm ARC 18 Inch Barrel Velocity
An 18-inch barrel is widely considered the optimal SPR (Special Purpose Rifle) configuration for the AR-15.
- 108-Grain Load: Yields roughly 2,630 fps.
- Considerations: Adding 50 fps over the 16-inch carbine extends the supersonic threshold and provides a noticeably flatter trajectory for engaging targets out to 800 yards.
6mm ARC 20 Inch Barrel Velocity
The 20-inch barrel is the ballistic sweet spot for dedicated DMR (Designated Marksman Rifle) builds or stationary predator hunters.
- 108-Grain Load: Hits approximately 2,680 fps.
- Considerations: This length extracts the vast majority of the cartridge’s velocity potential, ensuring complete powder combustion and minimizing muzzle flash for shooters using thermal optics or suppressors.
6mm ARC 24 Inch Barrel Velocity
The 24-inch barrel is the factory testing standard for Hornady and represents the maximum velocity capability of the cartridge.
- 108-Grain Load: Achieves the advertised 2,750 fps.
- Considerations: This length is strictly utilized for PRS (Precision Rifle Series) gas-gun competitions or benchrest shooting, where mitigating wind drift is the absolute highest priority and overall rifle weight is not a concern.
6mm ARC Velocity And Energy By Barrel Length
The following table calculates muzzle energy based on tested velocity averages for a standard 108-grain Hornady ELD Match load.
| Barrel Length | Bullet Weight | Velocity | Muzzle Energy |
| 16 inches | 108 grain | 2,580 fps | 1,597 ft-lbs |
| 18 inches | 108 grain | 2,630 fps | 1,659 ft-lbs |
| 20 inches | 108 grain | 2,680 fps | 1,723 ft-lbs |
| 24 inches | 108 grain | 2,750 fps | 1,814 ft-lbs |
Practical Applications
Understanding 6mm ARC barrel length velocity heavily dictates how a platform should be utilized in the field:
- Medium Game Hunting: For whitetail deer or antelope, the 103-grain ELD-X requires sufficient impact velocity (generally above 1,600 fps) to expand reliably. A 16 to 18-inch barrel providing 2,630+ fps at the muzzle ensures massive energy transfer and reliable expansion out to 400 yards.
- Long-Range Target Shooting (1,000+ Yards): To keep a 108-grain bullet supersonic past 1,000 yards, a high starting velocity is mandatory. A 20-inch or 24-inch barrel is required to launch the projectile fast enough to prevent it from destabilizing at extended ranges.
- Suppressed Use: Because the 6mm ARC utilizes a large charge of slower-burning powder, firing it from a 14.5 or 16-inch barrel will expel slightly more unburnt gas into the suppressor. An adjustable gas block is highly recommended to manage the increased backpressure.
What Is The Best Barrel Length For 6mm ARC?
The chronograph data strongly points to the 18-inch to 20-inch range as the absolute best barrel length for the 6mm ARC.
The 6mm ARC was purposefully designed to bring genuine long-range precision to the standard AR-15. Saddling it with a 14.5-inch barrel strips away too much of that trajectory advantage. Conversely, bolting a heavy 24-inch barrel onto an AR-15 turns a lightweight platform into an unwieldy, front-heavy bench gun.
The 18 and 20-inch barrels strike the perfect equilibrium. They only surrender roughly 70 to 120 fps compared to the 24-inch maximum, but they effortlessly push 108-grain match bullets past 2,630 fps. This length fully utilizes the cartridge’s extreme ballistic coefficient advantage while keeping the rifle maneuverable enough to carry on a hunt or swing through barricades.
Pros and Cons
Short Barrel Pros (14.5-16 Inches)
- Superior agility for hunting in dense brush or shooting from vehicles.
- Ideal overall length when hosting a full-size suppressor.
- Lighter overall platform weight for field carry.
Short Barrel Cons (14.5-16 Inches)
- Loses 170 to 220 fps of velocity compared to 24-inch barrels.
- Noticeably more muzzle blast and flash due to unburnt powder.
- Earlier transonic transition, degrading accuracy past 800 yards.
Long Barrel Pros (18-24 Inches)
- Extracts maximum muzzle velocity and downrange kinetic energy.
- Fully optimizes the ballistic coefficient advantages of heavy 108-grain bullets.
- Complete powder burn reduces gas port pressure and muzzle flash for smoother cycling.
Long Barrel Cons (18-24 Inches)
- A 24-inch barrel makes an AR-15 exceedingly long and front-heavy, especially when suppressed.
- Yields diminishing returns; the last four inches only add about 70 fps.
6mm ARC Barrel Length Velocity: What The Data Shows
Chronograph testing clearly establishes that the 6mm ARC performs exceptionally well as barrel length increases. The 24-inch precision barrel yields the highest tested velocity, pushing standard 108-grain loads to 2,750 fps and maximizing kinetic energy beyond 1,800 ft-lbs.
However, by analyzing the data curve, shooters can see that the cartridge remains incredibly potent even in compact packages. Dropping from a 24-inch precision setup down to a 16-inch carbine sacrifices roughly 170 fps. Yet, even with this velocity penalty, a 16-inch 6mm ARC effortlessly outperforms a 20-inch 5.56 NATO at distance due to its vastly superior bullet weight and aerodynamics. For shooters wanting to harness the absolute limit of the cartridge’s range, a 20 or 24-inch barrel makes the most mathematical sense, while the 18-inch barrel reigns supreme as the ultimate general-purpose choice.
FAQs
How fast is 6mm ARC from a 16-inch barrel?
From a 16-inch barrel, a 108-grain match load averages roughly 2,580 fps. Lighter 103-grain hunting loads will average closer to 2,630 fps.
How fast is 6mm ARC from an 18-inch barrel?
An 18-inch barrel pushes a 108-grain bullet to approximately 2,630 fps, capturing a perfect balance of speed and AR-15 maneuverability.
How fast is 6mm ARC from a 24-inch barrel?
A 24-inch barrel is the factory testing standard, yielding 2,750 fps for 108-grain loads and roughly 2,800 fps for 103-grain ELD-X loads.
Does barrel length affect 6mm ARC velocity?
Yes, significantly. Because the 6mm ARC utilizes a large case capacity to push heavy high-BC bullets, it requires a longer barrel to fully combust its powder charge efficiently.
How much velocity does 6mm ARC lose per inch?
Based on chronograph testing between 14.5 and 24 inches, the 6mm ARC loses an estimated 20 to 30 fps per inch of reduced barrel length.
What is the fastest 6mm ARC barrel length?
A 24-inch barrel produces the fastest standard AR-15 muzzle velocity for the 6mm ARC, allowing maximum time for the powder volume to accelerate the projectile.
What is the best barrel length for 6mm ARC?
The 18 to 20-inch range is widely considered optimal for tactical, field, and hunting use, while 24-inch barrels are best strictly for precision long-range benchrest shooting.
Does 6mm ARC gain velocity from a longer barrel?
Yes. The 6mm ARC continues to gain meaningful velocity (roughly 25 fps per inch) all the way up to 24 inches.
How fast is subsonic 6mm ARC?
Subsonic 6mm ARC ammunition does not exist commercially. The cartridge is engineered strictly for high-velocity, supersonic long-range performance.
How fast is supersonic 6mm ARC?
Depending on the bullet weight (103gr to 108gr) and barrel length, standard supersonic 6mm ARC velocity ranges anywhere between 2,530 fps and 2,800 fps.
What is the velocity difference between a 16 and 24 inch 6mm ARC barrel?
For a standard 108-grain supersonic load, the velocity difference is roughly 170 fps (2,580 fps vs. 2,750 fps), which noticeably impacts bullet drop and wind deflection at 1,000 yards.
