22 Hornet Ballistics Chart – All Manufacturers Data

The 22 Hornet is a small varmint cartridge with a long history, and the factory charts below collect every load the makers publish with downrange figures. Twelve loads from eight brands carry complete published tables, and the main chart runs seven of them out to 500 yards with velocity, energy and trajectory in every column. Two more loads publish muzzle figures only, and they sit in a short listing at the end.

22 Hornet Ballistics Chart: Factory Loads Charted to 500 Yards

Each row is one factory load exactly as its maker prints it. Velocity and energy run from the muzzle to 500 yards, and the trajectory columns use the 200 yard zero path each maker publishes for the load. Hornady prints no ballistic coefficient in its chart and the Nosler listing states none, so those three rows carry a hyphen in the BC column only.

BrandLoadProduct LineSKUBC (G1)Vel. Muzzle (fps)Vel. 100 yd (fps)Vel. 200 yd (fps)Vel. 300 yd (fps)Vel. 400 yd (fps)Vel. 500 yd (fps)Energy Muzzle (ft-lb)Energy 100 yd (ft-lb)Energy 200 yd (ft-lb)Energy 300 yd (ft-lb)Energy 400 yd (ft-lb)Energy 500 yd (ft-lb)Traj. 100 yd (in)Traj. 200 yd (in)Traj. 300 yd (in)Traj. 400 yd (in)Traj. 500 yd (in)
Hornady35 gr V-MAX®Varmint Express8302–30702247157411179188027323921929765502.90-17.5-62.7-149.2
Hornady45 gr SPCustom83028–2665224118581523125210717105023452321571152.80-13-41.2-91.6
Browning35 gr Rapid Controlled Expansion Polymer TipBXVB1923002210.109310022831611114694082274740520210269522.70-16.7-59.7-142
Federal35 gr Tipped VarmintVarmint & PredatorAE22H35TVP0.10930002188152610949087956993721819364493.10-19.1-66.9-152.6
Remington45 gr Pointed Soft PointHigh Performance Rifle283760.130269020441505113094984272341722612890713.60-19.7-66.7-149.2
Remington35 gr AccuTip-VPremier Accutip-V291540.10931002271159111269238067474011979966512.80-17.6-62.7-144.6
Nosler35 gr Varmageddon TippedVarmageddon41132–300022861683122999286969940622011776582.60-15.3-53.7-127.3

The six plotted loads bunch tightly in the velocity and energy panels, then separate in the drop panel, where the Hornady 45 gr soft point ends the chart well above the rest.

See also  22lr vs 22 Mag Ballistics Chart

Velocity: A Tie at the Top

Two loads share the fastest muzzle velocity in the chart, the Browning BXV 35 gr and the Remington AccuTip-V 35 gr, both at 3,100 fps. The Hornady 35 gr V-MAX starts close behind at 3,070 fps, while the Federal and Nosler 35 gr loads open at 3,000 fps. The slowest starter in this chart is the Hornady 45 gr SP at 2,665 fps, yet it holds speed better than any rival and still travels 1,071 fps at 500 yards.

Energy: The Heavy Soft Point Pulls Ahead Late

The Browning and Remington 35 gr loads also share the top muzzle energy, 747 ft-lb each. Light bullets shed energy quickly, though, and by 500 yards every 35 gr load in the chart is down between 49 and 58 ft-lb. The heavier Hornady 45 gr SP starts at 710 ft-lb, keeps 345 ft-lb at 200 yards, and finishes with 115 ft-lb at 500 yards, more than double any other load in the chart.

Trajectory on the Published 200 Yard Zero

On the 200 yard zero printed for these loads, the bullet sits 2.6 to 3.6 inches high at 100 yards and falls 13.0 to 19.7 inches by 300 yards. At 500 yards the spread opens wide: the Hornady 45 gr SP drops 91.6 inches, the Nosler Varmageddon drops 127.3 inches, and the Federal Tipped Varmint falls 152.6 inches. Nosler prints its Varmageddon figures beyond this chart, out to 800 yards, where it lists 637 fps and 672.3 inches of drop on the same zero.

See also  410 Slug Ballistics Chart

Winchester Loads on Their Own Grid

Winchester prints velocity and energy to 500 yards for its two Super X loads, but its published path is the short range set that reads zero at 100 yards, so the pair gets its own table with that path. The 45 gr load also prints 0 at 50 yards on the same set.

BrandLoadProduct LineSKUBC (G1)Vel. Muzzle (fps)Vel. 100 yd (fps)Vel. 200 yd (fps)Vel. 300 yd (fps)Vel. 400 yd (fps)Vel. 500 yd (fps)Energy Muzzle (ft-lb)Energy 100 yd (ft-lb)Energy 200 yd (ft-lb)Energy 300 yd (ft-lb)Energy 400 yd (ft-lb)Energy 500 yd (ft-lb)Path 100 yd (in)Path 200 yd (in)Path 300 yd (in)Path 400 yd (in)
Winchester45 gr Jacketed Soft PointSuper XX22H10.130269020421502112894784072341622512790700-7.1-30.1-80.3
Winchester46 gr Jacketed Hollow PointSuper XX22H20.130269020431504112994984173942623113092720-7.1-30-80.1

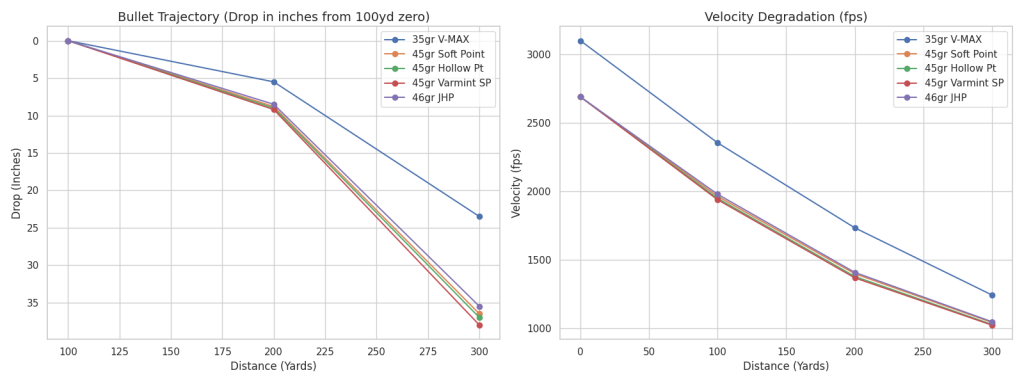

Bullet Drop on a 100 Yard Zero

Most Hornet makers also publish a path that reads zero at 100 yards, and this table gathers those sets at the three distances every maker prints. Sellier & Bellot calls its figures points of impact and PPU calls them bullet path; both read zero at 100 yards and are shown as printed. Drop at 300 yards runs from 23.0 inches for the Nosler load to 40.6 inches for the Sellier & Bellot soft point.

See also  10mm vs 40 S&W Ballistics Chart
BrandLoadSKUPath 100 yd (in)Path 200 yd (in)Path 300 yd (in)
Nosler35 gr Varmageddon Tipped411320-5.1-23
Browning35 gr Rapid Controlled Expansion Polymer TipB1923002210-5.5-24.9
Remington35 gr AccuTip-V291540-5.6-26
Federal35 gr Tipped VarmintAE22H35TVP0-6.1-28.3
Winchester45 gr Jacketed Soft PointX22H10-7.1-30.1
Winchester46 gr Jacketed Hollow PointX22H20-7.1-30
Remington45 gr Pointed Soft Point283760-7.1-30.4
PPU45 gr SPPP22H0-9.1-37.2
Sellier & Bellot45 gr FMJSB22HA0-9.2-39.4
Sellier & Bellot45 gr SPSB22HB0-9.4-40.6

Sellier & Bellot Loads Charted to 400 Yards

The two Sellier & Bellot loads sold in the United States are the slowest in this article at 2,346 fps, and their published grid stops at 400 yards. Both print 0.0 at 50 and 100 yards in the points of impact columns, and the figures come from a 23.5 inch test barrel, one of only two test barrels any maker states for this cartridge.

BrandLoadProduct LineSKUBC (G1)Vel. Muzzle (fps)Vel. 100 yd (fps)Vel. 200 yd (fps)Vel. 300 yd (fps)Vel. 400 yd (fps)Energy Muzzle (ft-lb)Energy 100 yd (ft-lb)Energy 200 yd (ft-lb)Energy 300 yd (ft-lb)Energy 400 yd (ft-lb)POI 200 yd (in)POI 300 yd (in)POI 400 yd (in)
Sellier & Bellot45 gr SPRifle ammunition SPSB22HB0.13823461778128499988855031616510079-9.4-40.6-106.3
Sellier & Bellot45 gr FMJRifle ammunition FMJSB22HA0.143234617931310101089955032117110281-9.2-39.4-103.3

The PPU Load Charted to 300 Yards

PPU publishes one Hornet load for the United States market, a 45 gr soft point at 2,430 fps, and its grid ends at 300 yards. Its bullet path reads zero at 100 yards, then falls 9.1 inches at 200 yards and 37.2 inches at 300 yards.

BrandLoadProduct LineSKUBC (G1)Vel. Muzzle (fps)Vel. 100 yd (fps)Vel. 200 yd (fps)Vel. 300 yd (fps)Energy Muzzle (ft-lb)Energy 100 yd (ft-lb)Energy 200 yd (ft-lb)Energy 300 yd (ft-lb)Path 200 yd (in)Path 300 yd (in)
PPU45 gr SPStandard RiflePP22H0.1362430184513751070590341188115-9.1-37.2

Wind Drift: Only Two Makers Print It

Federal and Remington are the only makers in this article that publish wind drift, both for a 10 mph crosswind. Drift is modest inside 200 yards, at 2.9 to 3.0 inches at 100 yards and 13.4 to 14.4 inches at 200 yards, then grows fast on the light bullets. At 500 yards the Remington soft point drifts 106.1 inches and the Federal load drifts 118.8 inches.

BrandLoadSKUDrift 100 yd (in)Drift 200 yd (in)Drift 300 yd (in)Drift 400 yd (in)Drift 500 yd (in)
Remington45 gr Pointed Soft Point283762.913.434.766.5106.1
Remington35 gr AccuTip-V291542.913.736.672116.3
Federal35 gr Tipped VarmintAE22H35TVP314.438.374.2118.8

Loads Published at the Muzzle Only

HSM prints a muzzle velocity and a muzzle energy for its two Hornet loads and nothing downrange, so both sit in this listing with just the figures the maker publishes.

BrandLoadProduct LineSKUMuzzle Velocity (fps)Muzzle Energy (ft-lb)
HSM35 gr V-MaxVarmintHSM-22H-3-N2975688
HSM40 gr Match Varmint Flat BaseVarmintBER-22H40MVFB2800697

Coverage and What Is Not Charted

The charted loads split into five at 35 gr, six at 45 gr and one at 46 gr. Two further listings publish no ballistics at all, the Nosler NoslerCustom 40 gr Ballistic Tip and the Doubletap 40 gr DT Varmint, so neither appears in any table. Sellier & Bellot and PPU also print these same loads in metric catalogues; those tables were not converted, and the United States imperial tables are the ones used here. Only Nosler, with a 24 inch barrel, and Sellier & Bellot state a test barrel length.

Frequently Asked Questions

What muzzle velocity does a 22 Hornet have?

Factory loads in this article run from 2,346 fps for the Sellier & Bellot pair to 3,100 fps for the fastest 35 gr loads. Most of the charted loads start between 2,665 and 3,100 fps.

Which 22 Hornet load is the fastest?

The Browning BXV 35 gr and the Remington AccuTip-V 35 gr tie at 3,100 fps. The Hornady 35 gr V-MAX follows at 3,070 fps.

How much does a 22 Hornet drop at 300 yards?

On the published 200 yard zero paths, drop at 300 yards runs 13.0 to 19.7 inches. On the 100 yard zero paths, the same distance shows 23.0 to 40.6 inches of drop.

How much does a 22 Hornet drop at 500 yards?

On a 200 yard zero, the charted loads fall 91.6 to 152.6 inches at 500 yards. The Hornady 45 gr SP drops least and the Federal 35 gr Tipped Varmint drops most.

Which 22 Hornet load holds the most energy at 500 yards?

The Hornady 45 gr SP, with 115 ft-lb at 500 yards. Every 35 gr load in the main chart ends that distance between 49 and 58 ft-lb.

What bullet weights do factory 22 Hornet loads use?

The charted loads use 35, 45 and 46 gr bullets, five at 35 gr, six at 45 gr and one at 46 gr. The two muzzle-only HSM listings add 35 and 40 gr loads.

How far out do the factory charts run?

The main chart runs to 500 yards, the Sellier & Bellot grid stops at 400 yards and the PPU grid stops at 300 yards. Nosler prints its Varmageddon load further still, to 800 yards.

Do the makers publish trajectory for 22 Hornet loads?

Yes, every charted load here carries a published path, but the zero differs by maker and by table. Each table in this article states the zero its figures use, and no path has been re-zeroed.

How much does a 22 Hornet drift in the wind?

Federal and Remington publish drift for a 10 mph crosswind, and at 500 yards their loads drift 106.1 to 118.8 inches. At 200 yards the same loads drift 13.4 to 14.4 inches.

What test barrel are 22 Hornet ballistics shot from?

Only two makers say. Nosler lists a 24 inch test barrel for its Varmageddon load, and Sellier & Bellot lists a 23.5 inch barrel for its pair.
