Explore the Hornady Ballistics Chart to compare ammunition performance across rifle, handgun, shotgun, and muzzleloader loads. Find manufacturer-provided velocity and energy data at different distances, along with bullet weights, cartridge details, and barrel lengths. Use these charts to understand how different Hornady ammunition options compare before choosing a load for your needs.
Table of Contents [Click to minimize]

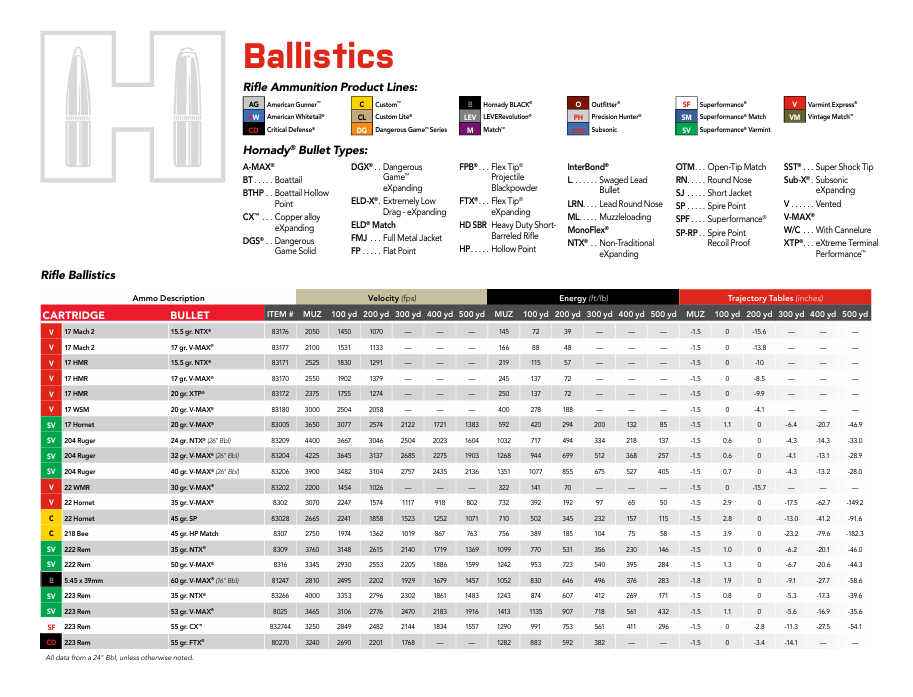

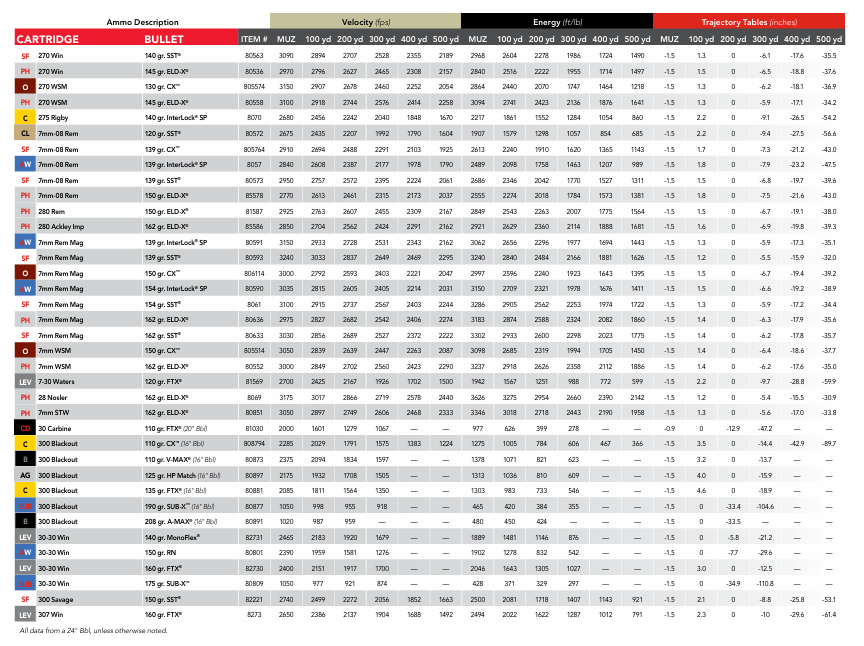

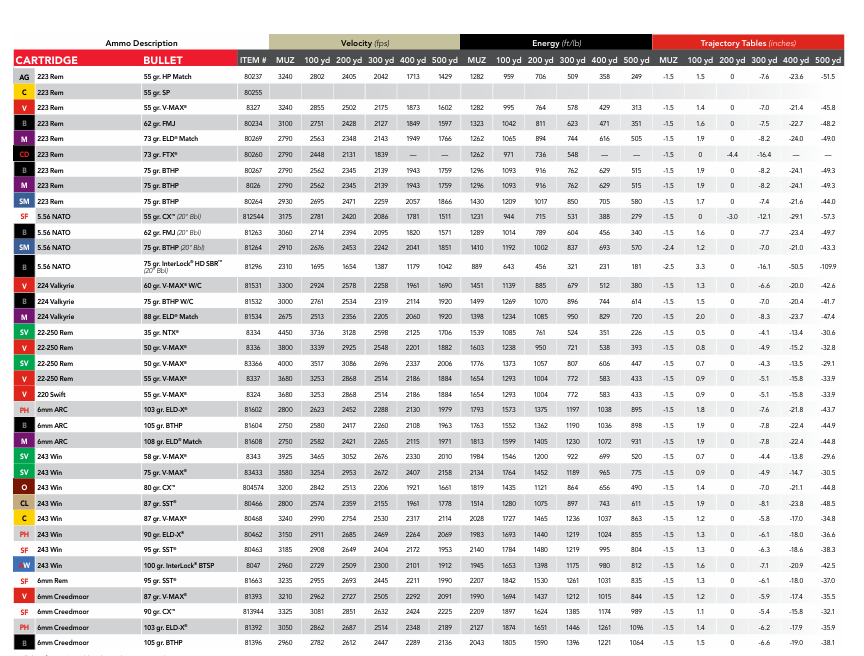

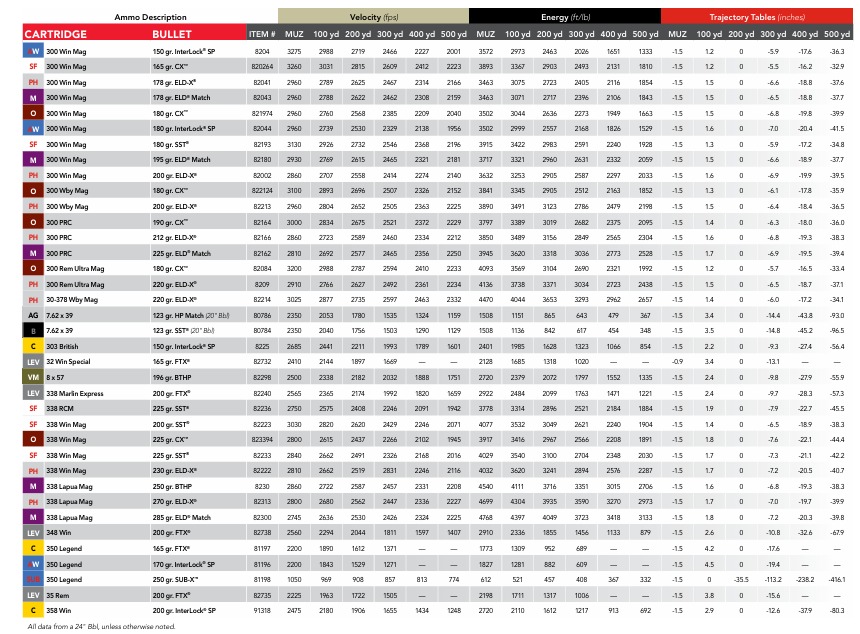

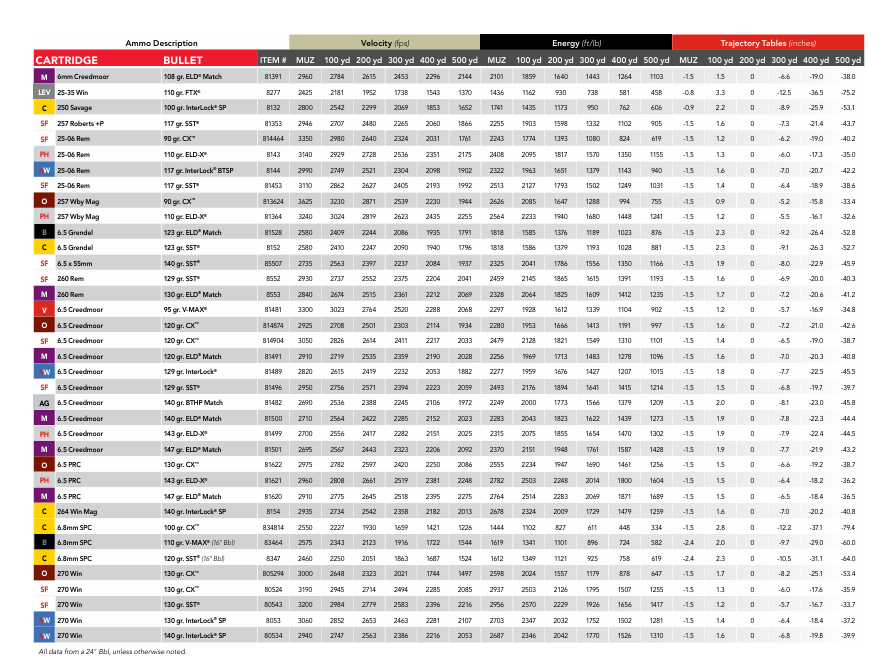

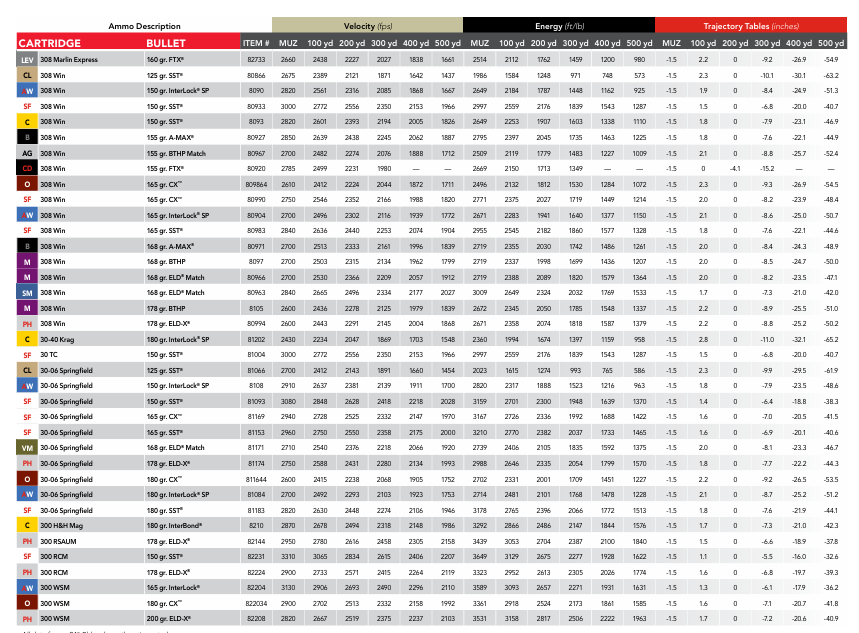

1. Hornady Rifle Ballistics Chart
Standard Measurements | Velocity, Energy & Trajectory
| AMMO DESCRIPTION | VELOCITY (FPS) | ENERGY (FT-LB) | TRAJECTORY (INCHES) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Cartridge | Bullet | Item # | MUZ | 100 yd | 200 yd | 300 yd | 400 yd | 500 yd | MUZ | 100 yd | 200 yd | 300 yd | 400 yd | 500 yd | MUZ | 100 yd | 200 yd | 300 yd | 400 yd | 500 yd |
| V | 17 Mach 2 | 15.5 gr. NTX® | 83176 | 2050 | 1450 | 1070 | — | — | — | 145 | 72 | 39 | — | — | — | -1.5 | 0 | -15.6 | — | — | — |
| V | 17 Mach 2 | 17 gr. V-MAX® | 83177 | 2100 | 1531 | 1133 | — | — | — | 166 | 88 | 48 | — | — | — | -1.5 | 0 | -13.8 | — | — | — |
| V | 17 HMR | 15.5 gr. NTX® | 83171 | 2525 | 1830 | 1291 | — | — | — | 219 | 115 | 57 | — | — | — | -1.5 | 0 | -10 | — | — | — |
| V | 17 HMR | 17 gr. V-MAX® | 83170 | 2550 | 1902 | 1379 | — | — | — | 245 | 137 | 72 | — | — | — | -1.5 | 0 | -8.5 | — | — | — |
| V | 17 HMR | 20 gr. XTP® | 83172 | 2375 | 1755 | 1274 | — | — | — | 250 | 137 | 72 | — | — | — | -1.5 | 0 | -9.9 | — | — | — |
| V | 17 WSM | 20 gr. V-MAX® | 83180 | 3000 | 2504 | 2058 | — | — | — | 400 | 278 | 188 | — | — | — | -1.5 | 0 | -4.1 | — | — | — |
| SV | 17 Hornet | 20 gr. V-MAX® | 83005 | 3650 | 3077 | 2574 | 2122 | 1721 | 1383 | 592 | 420 | 294 | 200 | 132 | 85 | -1.5 | 1.1 | 0 | -6.4 | -20.7 | -46.9 |
| SV | 204 Ruger | 24 gr. NTX® (26″ Bbl) | 83209 | 4400 | 3667 | 3046 | 2504 | 2023 | 1604 | 1032 | 717 | 494 | 334 | 218 | 137 | -1.5 | 0.6 | 0 | -4.3 | -14.3 | -33.0 |
| SV | 204 Ruger | 32 gr. V-MAX® (26″ Bbl) | 83204 | 4225 | 3645 | 3137 | 2685 | 2275 | 1903 | 1268 | 944 | 699 | 512 | 368 | 257 | -1.5 | 0.6 | 0 | -4.1 | -13.1 | -28.9 |
| SV | 204 Ruger | 40 gr. V-MAX® (26″ Bbl) | 83206 | 3900 | 3482 | 3104 | 2757 | 2435 | 2136 | 1351 | 1077 | 855 | 675 | 527 | 405 | -1.5 | 0.7 | 0 | -4.3 | -13.2 | -28.0 |
| V | 22 WMR | 30 gr. V-MAX® | 83202 | 2200 | 1454 | 1026 | — | — | — | 322 | 141 | 70 | — | — | — | -1.5 | 0 | -15.7 | — | — | — |
| V | 22 Hornet | 35 gr. V-MAX® | 8302 | 3070 | 2247 | 1574 | 1117 | 918 | 802 | 732 | 392 | 192 | 97 | 65 | 50 | -1.5 | 2.9 | 0 | -17.5 | -62.7 | -149.2 |
| C | 22 Hornet | 45 gr. SP | 83028 | 2665 | 2241 | 1858 | 1523 | 1252 | 1071 | 710 | 502 | 345 | 232 | 157 | 115 | -1.5 | 2.8 | 0 | -13.0 | -41.2 | -91.6 |
| C | 218 Bee | 45 gr. HP Match | 8307 | 2750 | 1974 | 1362 | 1019 | 867 | 763 | 756 | 389 | 185 | 104 | 75 | 58 | -1.5 | 3.9 | 0 | -23.2 | -79.6 | -182.3 |
| SV | 222 Rem | 35 gr. NTX® | 8309 | 3760 | 3148 | 2615 | 2140 | 1719 | 1369 | 1099 | 770 | 531 | 356 | 230 | 146 | -1.5 | 1.0 | 0 | -6.2 | -20.1 | -46.0 |
| SV | 222 Rem | 50 gr. V-MAX® | 8316 | 3345 | 2930 | 2553 | 2205 | 1886 | 1599 | 1242 | 953 | 723 | 540 | 395 | 284 | -1.5 | 1.3 | 0 | -6.7 | -20.6 | -44.3 |
| B | 5.45 x 39mm | 60 gr. V-MAX® (16″ Bbl) | 81247 | 2810 | 2495 | 2202 | 1929 | 1679 | 1457 | 1052 | 830 | 646 | 496 | 376 | 283 | -1.8 | 1.9 | 0 | -9.1 | -27.7 | -58.6 |
| SV | 223 Rem | 35 gr. NTX® | 83266 | 4000 | 3353 | 2796 | 2302 | 1861 | 1483 | 1243 | 874 | 607 | 412 | 269 | 171 | -1.5 | 0.8 | 0 | -5.3 | -17.3 | -39.6 |
| SV | 223 Rem | 53 gr. V-MAX® | 8025 | 3465 | 3106 | 2776 | 2470 | 2183 | 1916 | 1413 | 1135 | 907 | 718 | 561 | 432 | -1.5 | 1.1 | 0 | -5.6 | -16.9 | -35.6 |
| SF | 223 Rem | 55 gr. CX™ | 832744 | 3250 | 2849 | 2482 | 2144 | 1834 | 1557 | 1290 | 991 | 753 | 561 | 411 | 296 | -1.5 | 0 | -2.8 | -11.3 | -27.5 | -54.1 |
| CD | 223 Rem | 55 gr. FTX® | 80270 | 3240 | 2690 | 2201 | 1768 | — | — | 1282 | 883 | 592 | 382 | — | — | -1.5 | 0 | -3.4 | -14.1 | — | — |
| AG | 223 Rem | 55 gr. HP Match | 80237 | 3240 | 2802 | 2405 | 2042 | 1713 | 1429 | 1282 | 959 | 706 | 509 | 358 | 249 | -1.5 | 1.5 | 0 | -7.6 | -23.6 | -51.5 |
| V | 223 Rem | 55 gr. V-MAX® | 8327 | 3240 | 2855 | 2502 | 2175 | 1873 | 1602 | 1282 | 995 | 764 | 578 | 429 | 313 | -1.5 | 1.4 | 0 | -7.0 | -21.4 | -45.8 |
| B | 223 Rem | 62 gr. FMJ | 80234 | 3100 | 2751 | 2428 | 2127 | 1849 | 1597 | 1323 | 1042 | 811 | 623 | 471 | 351 | -1.5 | 1.6 | 0 | -7.5 | -22.7 | -48.2 |
| M | 223 Rem | 73 gr. ELD® Match | 80269 | 2790 | 2563 | 2348 | 2143 | 1949 | 1766 | 1262 | 1065 | 894 | 744 | 616 | 505 | -1.5 | 1.9 | 0 | -8.2 | -24.0 | -49.0 |
| CD | 223 Rem | 73 gr. FTX® | 80260 | 2790 | 2448 | 2131 | 1839 | — | — | 1262 | 971 | 736 | 548 | — | — | -1.5 | 0 | -4.4 | -16.4 | — | — |
| B | 223 Rem | 75 gr. BTHP | 80267 | 2790 | 2562 | 2345 | 2139 | 1943 | 1759 | 1296 | 1093 | 916 | 762 | 629 | 515 | -1.5 | 1.9 | 0 | -8.2 | -24.1 | -49.3 |
| M | 223 Rem | 75 gr. BTHP | 8026 | 2790 | 2562 | 2345 | 2139 | 1943 | 1759 | 1296 | 1093 | 916 | 762 | 629 | 515 | -1.5 | 1.9 | 0 | -8.2 | -24.1 | -49.3 |
| SM | 223 Rem | 75 gr. BTHP | 80264 | 2930 | 2695 | 2471 | 2259 | 2057 | 1866 | 1430 | 1209 | 1017 | 850 | 705 | 580 | -1.5 | 1.7 | 0 | -7.4 | -21.6 | -44.0 |
| SF | 5.56 NATO | 55 gr. CX™ (20″ Bbl) | 812544 | 3175 | 2781 | 2420 | 2086 | 1781 | 1511 | 1231 | 944 | 715 | 531 | 388 | 279 | -1.5 | 0 | -3.0 | -12.1 | -29.1 | -57.3 |
| B | 5.56 NATO | 62 gr. FMJ (20″ Bbl) | 81263 | 3060 | 2714 | 2394 | 2095 | 1820 | 1571 | 1289 | 1014 | 789 | 604 | 456 | 340 | -1.5 | 1.6 | 0 | -7.7 | -23.4 | -49.7 |
| SM | 5.56 NATO | 75 gr. BTHP (20″ Bbl) | 81264 | 2910 | 2676 | 2453 | 2242 | 2041 | 1851 | 1410 | 1192 | 1002 | 837 | 693 | 570 | -2.4 | 1.2 | 0 | -7.0 | -21.0 | -43.3 |
| B | 5.56 NATO | 75 gr. InterLock® HD SBR™ (20″ Bbl) | 81296 | 2310 | 1695 | 1654 | 1387 | 1179 | 1042 | 889 | 643 | 456 | 321 | 231 | 181 | -2.5 | 3.3 | 0 | -16.1 | -50.5 | -109.9 |
| V | 224 Valkyrie | 60 gr. V-MAX® W/C | 81531 | 3300 | 2924 | 2578 | 2258 | 1961 | 1690 | 1451 | 1139 | 885 | 679 | 512 | 380 | -1.5 | 1.3 | 0 | -6.6 | -20.0 | -42.6 |
| B | 224 Valkyrie | 75 gr. BTHP W/C | 81532 | 3000 | 2761 | 2534 | 2319 | 2114 | 1920 | 1499 | 1269 | 1070 | 896 | 744 | 614 | -1.5 | 1.5 | 0 | -7.0 | -20.4 | -41.7 |
| M | 224 Valkyrie | 88 gr. ELD® Match | 81534 | 2675 | 2513 | 2356 | 2205 | 2060 | 1920 | 1398 | 1234 | 1085 | 950 | 829 | 720 | -1.5 | 2.0 | 0 | -8.3 | -23.7 | -47.4 |
| SV | 22-250 Rem | 35 gr. NTX® | 8334 | 4450 | 3736 | 3128 | 2598 | 2125 | 1706 | 1539 | 1085 | 761 | 524 | 351 | 226 | -1.5 | 0.5 | 0 | -4.1 | -13.4 | -30.6 |
| V | 22-250 Rem | 50 gr. V-MAX® | 8336 | 3800 | 3339 | 2925 | 2548 | 2201 | 1882 | 1603 | 1238 | 950 | 721 | 538 | 393 | -1.5 | 0.8 | 0 | -4.9 | -15.2 | -32.8 |
| SV | 22-250 Rem | 50 gr. V-MAX® | 83366 | 4000 | 3517 | 3086 | 2696 | 2337 | 2006 | 1776 | 1373 | 1057 | 807 | 606 | 447 | -1.5 | 0.7 | 0 | -4.3 | -13.5 | -29.1 |
| V | 22-250 Rem | 55 gr. V-MAX® | 8337 | 3680 | 3253 | 2868 | 2514 | 2186 | 1884 | 1654 | 1293 | 1004 | 772 | 583 | 433 | -1.5 | 0.9 | 0 | -5.1 | -15.8 | -33.9 |
| V | 220 Swift | 55 gr. V-MAX® | 8324 | 3680 | 3253 | 2868 | 2514 | 2186 | 1884 | 1654 | 1293 | 1004 | 772 | 583 | 433 | -1.5 | 0.9 | 0 | -5.1 | -15.8 | -33.9 |
| PH | 6mm ARC | 103 gr. ELD-X® | 81602 | 2800 | 2623 | 2452 | 2288 | 2130 | 1979 | 1793 | 1573 | 1375 | 1197 | 1038 | 895 | -1.5 | 1.8 | 0 | -7.6 | -21.8 | -43.7 |
| B | 6mm ARC | 105 gr. BTHP | 81604 | 2750 | 2580 | 2417 | 2260 | 2108 | 1963 | 1763 | 1552 | 1362 | 1190 | 1036 | 898 | -1.5 | 1.9 | 0 | -7.8 | -22.4 | -44.9 |
| M | 6mm ARC | 108 gr. ELD® Match | 81608 | 2750 | 2582 | 2421 | 2265 | 2115 | 1971 | 1813 | 1599 | 1405 | 1230 | 1072 | 931 | -1.5 | 1.9 | 0 | -7.8 | -22.4 | -44.8 |
| SV | 243 Win | 58 gr. V-MAX® | 8343 | 3925 | 3465 | 3052 | 2676 | 2330 | 2010 | 1984 | 1546 | 1200 | 922 | 699 | 520 | -1.5 | 0.7 | 0 | -4.4 | -13.8 | -29.6 |
| SV | 243 Win | 75 gr. V-MAX® | 83433 | 3580 | 3254 | 2953 | 2672 | 2407 | 2158 | 2134 | 1764 | 1452 | 1189 | 965 | 775 | -1.5 | 0.9 | 0 | -4.9 | -14.7 | -30.5 |
| O | 243 Win | 80 gr. CX™ | 804574 | 3200 | 2842 | 2513 | 2206 | 1921 | 1661 | 1819 | 1435 | 1121 | 864 | 656 | 490 | -1.5 | 1.4 | 0 | -7.0 | -21.1 | -44.8 |
| CL | 243 Win | 87 gr. SST® | 80466 | 2800 | 2574 | 2359 | 2155 | 1961 | 1778 | 1514 | 1280 | 1075 | 897 | 743 | 611 | -1.5 | 1.9 | 0 | -8.1 | -23.8 | -48.5 |
| C | 243 Win | 87 gr. V-MAX® | 80468 | 3240 | 2990 | 2754 | 2530 | 2317 | 2114 | 2028 | 1727 | 1465 | 1236 | 1037 | 863 | -1.5 | 1.2 | 0 | -5.8 | -17.0 | -34.8 |
| PH | 243 Win | 90 gr. ELD-X® | 80462 | 3150 | 2911 | 2685 | 2469 | 2264 | 2069 | 1983 | 1693 | 1440 | 1219 | 1024 | 855 | -1.5 | 1.3 | 0 | -6.1 | -18.0 | -36.6 |
| SF | 243 Win | 95 gr. SST® | 80463 | 3185 | 2908 | 2649 | 2404 | 2172 | 1953 | 2140 | 1784 | 1480 | 1219 | 995 | 804 | -1.5 | 1.3 | 0 | -6.3 | -18.6 | -38.3 |
| AW | 243 Win | 100 gr. InterLock® BTSP | 8047 | 2960 | 2729 | 2509 | 2300 | 2101 | 1912 | 1945 | 1653 | 1398 | 1175 | 980 | 812 | -1.5 | 1.6 | 0 | -7.1 | -20.9 | -42.5 |
| SF | 6mm Rem | 95 gr. SST® | 81663 | 3235 | 2955 | 2693 | 2445 | 2211 | 1990 | 2207 | 1842 | 1530 | 1261 | 1031 | 835 | -1.5 | 1.3 | 0 | -6.1 | -18.0 | -37.0 |
| V | 6mm Creedmoor | 87 gr. V-MAX® | 81393 | 3210 | 2962 | 2727 | 2505 | 2292 | 2091 | 1990 | 1694 | 1437 | 1212 | 1015 | 844 | -1.5 | 1.2 | 0 | -5.9 | -17.4 | -35.5 |
| SF | 6mm Creedmoor | 90 gr. CX™ | 813944 | 3325 | 3081 | 2851 | 2632 | 2424 | 2225 | 2209 | 1897 | 1624 | 1385 | 1174 | 989 | -1.5 | 1.1 | 0 | -5.4 | -15.8 | -32.1 |
| PH | 6mm Creedmoor | 103 gr. ELD-X® | 81392 | 3050 | 2862 | 2687 | 2514 | 2348 | 2189 | 2127 | 1874 | 1651 | 1446 | 1261 | 1096 | -1.5 | 1.4 | 0 | -6.2 | -17.9 | -35.9 |
| B | 6mm Creedmoor | 105 gr. BTHP | 81396 | 2960 | 2782 | 2612 | 2447 | 2289 | 2136 | 2043 | 1805 | 1590 | 1396 | 1221 | 1064 | -1.5 | 1.5 | 0 | -6.6 | -19.0 | -38.1 |
| M | 6mm Creedmoor | 108 gr. ELD® Match | 81391 | 2960 | 2784 | 2615 | 2453 | 2296 | 2144 | 2101 | 1859 | 1640 | 1443 | 1264 | 1103 | -1.5 | 1.5 | 0 | -6.6 | -19.0 | -38.0 |
| LEV | 25-35 Win | 110 gr. FTX® | 8277 | 2425 | 2181 | 1952 | 1738 | 1543 | 1370 | 1436 | 1162 | 930 | 738 | 581 | 458 | -0.8 | 3.3 | 0 | -12.5 | -36.5 | -75.2 |
| C | 250 Savage | 100 gr. InterLock® SP | 8132 | 2800 | 2542 | 2299 | 2069 | 1853 | 1652 | 1741 | 1435 | 1173 | 950 | 762 | 606 | -0.9 | 2.2 | 0 | -8.9 | -25.9 | -53.1 |
| SF | 257 Roberts +P | 117 gr. SST® | 81353 | 2946 | 2707 | 2480 | 2265 | 2060 | 1866 | 2255 | 1903 | 1598 | 1332 | 1102 | 905 | -1.5 | 1.6 | 0 | -7.3 | -21.4 | -43.7 |
| SF | 25-06 Rem | 90 gr. CX™ | 814464 | 3350 | 2980 | 2640 | 2324 | 2031 | 1761 | 2243 | 1774 | 1393 | 1080 | 824 | 619 | -1.5 | 1.2 | 0 | -6.2 | -19.0 | -40.2 |
| PH | 25-06 Rem | 110 gr. ELD-X® | 8143 | 3140 | 2929 | 2728 | 2536 | 2351 | 2175 | 2408 | 2095 | 1817 | 1570 | 1350 | 1155 | -1.5 | 1.3 | 0 | -6.0 | -17.3 | -35.0 |
| AW | 25-06 Rem | 117 gr. InterLock® BTSP | 8144 | 2990 | 2749 | 2521 | 2304 | 2098 | 1902 | 2322 | 1963 | 1651 | 1379 | 1143 | 940 | -1.5 | 1.6 | 0 | -7.0 | -20.7 | -42.2 |
| SF | 25-06 Rem | 117 gr. SST® | 81453 | 3110 | 2862 | 2627 | 2405 | 2193 | 1992 | 2513 | 2127 | 1793 | 1502 | 1249 | 1031 | -1.5 | 1.4 | 0 | -6.4 | -18.9 | -38.6 |
| O | 257 Wby Mag | 90 gr. CX™ | 813624 | 3625 | 3230 | 2871 | 2539 | 2230 | 1944 | 2626 | 2085 | 1647 | 1288 | 994 | 755 | -1.5 | 0.9 | 0 | -5.2 | -15.8 | -33.4 |
| PH | 257 Wby Mag | 110 gr. ELD-X® | 81364 | 3240 | 3024 | 2819 | 2623 | 2435 | 2255 | 2564 | 2233 | 1940 | 1680 | 1448 | 1241 | -1.5 | 1.2 | 0 | -5.5 | -16.1 | -32.6 |
| B | 6.5 Grendel | 123 gr. ELD® Match | 81528 | 2580 | 2409 | 2244 | 2086 | 1935 | 1791 | 1818 | 1585 | 1376 | 1189 | 1023 | 876 | -1.5 | 2.3 | 0 | -9.2 | -26.4 | -52.8 |
| C | 6.5 Grendel | 123 gr. SST® | 8152 | 2580 | 2410 | 2247 | 2090 | 1940 | 1796 | 1818 | 1586 | 1379 | 1193 | 1028 | 881 | -1.5 | 2.3 | 0 | -9.1 | -26.3 | -52.7 |
| SF | 6.5 x 55mm | 140 gr. SST® | 85507 | 2735 | 2563 | 2397 | 2237 | 2084 | 1937 | 2325 | 2041 | 1786 | 1556 | 1350 | 1166 | -1.5 | 1.9 | 0 | -8.0 | -22.9 | -45.9 |
| SF | 260 Rem | 129 gr. SST® | 8552 | 2930 | 2737 | 2552 | 2375 | 2204 | 2041 | 2459 | 2145 | 1865 | 1615 | 1391 | 1193 | -1.5 | 1.6 | 0 | -6.9 | -20.0 | -40.3 |
| M | 260 Rem | 130 gr. ELD® Match | 8553 | 2840 | 2674 | 2515 | 2361 | 2212 | 2069 | 2328 | 2064 | 1825 | 1609 | 1412 | 1235 | -1.5 | 1.7 | 0 | -7.2 | -20.6 | -41.2 |
| V | 6.5 Creedmoor | 95 gr. V-MAX® | 81481 | 3300 | 3023 | 2764 | 2520 | 2288 | 2068 | 2297 | 1928 | 1612 | 1339 | 1104 | 902 | -1.5 | 1.2 | 0 | -5.7 | -16.9 | -34.8 |
| O | 6.5 Creedmoor | 120 gr. CX™ | 814874 | 2925 | 2708 | 2501 | 2303 | 2114 | 1934 | 2280 | 1953 | 1666 | 1413 | 1191 | 997 | -1.5 | 1.6 | 0 | -7.2 | -21.0 | -42.6 |
| SF | 6.5 Creedmoor | 120 gr. CX™ | 814904 | 3050 | 2826 | 2614 | 2411 | 2217 | 2033 | 2479 | 2128 | 1821 | 1549 | 1310 | 1101 | -1.5 | 1.4 | 0 | -6.5 | -19.0 | -38.7 |
| M | 6.5 Creedmoor | 120 gr. ELD® Match | 81491 | 2910 | 2719 | 2535 | 2359 | 2190 | 2028 | 2256 | 1969 | 1713 | 1483 | 1278 | 1096 | -1.5 | 1.6 | 0 | -7.0 | -20.3 | -40.8 |
| AW | 6.5 Creedmoor | 129 gr. InterLock® | 81489 | 2820 | 2615 | 2419 | 2232 | 2053 | 1882 | 2277 | 1959 | 1676 | 1427 | 1207 | 1015 | -1.5 | 1.8 | 0 | -7.7 | -22.5 | -45.5 |
| SF | 6.5 Creedmoor | 129 gr. SST® | 81496 | 2950 | 2756 | 2571 | 2394 | 2223 | 2059 | 2493 | 2176 | 1894 | 1641 | 1415 | 1214 | -1.5 | 1.5 | 0 | -6.8 | -19.7 | -39.7 |
| AG | 6.5 Creedmoor | 140 gr. BTHP Match | 81482 | 2690 | 2536 | 2388 | 2245 | 2106 | 1972 | 2249 | 2000 | 1773 | 1566 | 1379 | 1209 | -1.5 | 2.0 | 0 | -8.1 | -23.0 | -45.8 |
| M | 6.5 Creedmoor | 140 gr. ELD® Match | 81500 | 2710 | 2564 | 2422 | 2285 | 2152 | 2023 | 2283 | 2043 | 1823 | 1622 | 1439 | 1273 | -1.5 | 1.9 | 0 | -7.8 | -22.3 | -44.4 |
| PH | 6.5 Creedmoor | 143 gr. ELD-X® | 81499 | 2700 | 2556 | 2417 | 2282 | 2151 | 2025 | 2315 | 2075 | 1855 | 1654 | 1470 | 1302 | -1.5 | 1.9 | 0 | -7.9 | -22.4 | -44.5 |
| M | 6.5 Creedmoor | 147 gr. ELD® Match | 81501 | 2695 | 2567 | 2443 | 2323 | 2206 | 2092 | 2370 | 2151 | 1948 | 1761 | 1587 | 1428 | -1.5 | 1.9 | 0 | -7.7 | -21.9 | -43.2 |
| O | 6.5 PRC | 130 gr. CX™ | 81622 | 2975 | 2782 | 2597 | 2420 | 2250 | 2086 | 2555 | 2234 | 1947 | 1690 | 1461 | 1256 | -1.5 | 1.5 | 0 | -6.6 | -19.2 | -38.7 |
| PH | 6.5 PRC | 143 gr. ELD-X® | 81621 | 2960 | 2808 | 2661 | 2519 | 2381 | 2248 | 2782 | 2503 | 2248 | 2014 | 1800 | 1604 | -1.5 | 1.5 | 0 | -6.4 | -18.2 | -36.2 |
| M | 6.5 PRC | 147 gr. ELD® Match | 81620 | 2910 | 2775 | 2645 | 2518 | 2395 | 2275 | 2764 | 2514 | 2283 | 2069 | 1871 | 1689 | -1.5 | 1.5 | 0 | -6.5 | -18.4 | -36.5 |
| C | 264 Win Mag | 140 gr. InterLock® SP | 8154 | 2935 | 2734 | 2542 | 2358 | 2182 | 2013 | 2678 | 2324 | 2009 | 1729 | 1479 | 1259 | -1.5 | 1.6 | 0 | -7.0 | -20.2 | -40.8 |
| C | 6.8mm SPC | 100 gr. CX™ | 834814 | 2550 | 2227 | 1930 | 1659 | 1421 | 1226 | 1444 | 1102 | 827 | 611 | 448 | 334 | -1.5 | 2.8 | 0 | -12.2 | -37.1 | -79.4 |
| B | 6.8mm SPC | 110 gr. V-MAX® (16″ Bbl) | 83464 | 2575 | 2343 | 2123 | 1916 | 1722 | 1544 | 1619 | 1341 | 1101 | 896 | 724 | 582 | -2.4 | 2.0 | 0 | -9.7 | -29.0 | -60.0 |
| C | 6.8mm SPC | 120 gr. SST® (16″ Bbl) | 8347 | 2460 | 2250 | 2051 | 1863 | 1687 | 1524 | 1612 | 1349 | 1121 | 925 | 758 | 619 | -2.4 | 2.3 | 0 | -10.5 | -31.1 | -64.0 |
| O | 270 Win | 130 gr. CX™ | 805294 | 3000 | 2648 | 2323 | 2021 | 1744 | 1497 | 2598 | 2024 | 1557 | 1179 | 878 | 647 | -1.5 | 1.7 | 0 | -8.2 | -25.1 | -53.4 |
| SF | 270 Win | 130 gr. CX™ | 80524 | 3190 | 2945 | 2714 | 2494 | 2285 | 2085 | 2937 | 2503 | 2126 | 1795 | 1507 | 1255 | -1.5 | 1.3 | 0 | -6.0 | -17.6 | -35.9 |
| SF | 270 Win | 130 gr. SST® | 80543 | 3200 | 2984 | 2779 | 2583 | 2396 | 2216 | 2956 | 2570 | 2229 | 1926 | 1656 | 1417 | -1.5 | 1.2 | 0 | -5.7 | -16.7 | -33.7 |
| AW | 270 Win | 130 gr. InterLock® SP | 8053 | 3060 | 2852 | 2653 | 2463 | 2281 | 2107 | 2703 | 2347 | 2032 | 1752 | 1502 | 1281 | -1.5 | 1.4 | 0 | -6.4 | -18.4 | -37.2 |
| AW | 270 Win | 140 gr. InterLock® SP | 80534 | 2940 | 2747 | 2563 | 2386 | 2216 | 2053 | 2687 | 2346 | 2042 | 1770 | 1526 | 1310 | -1.5 | 1.6 | 0 | -6.8 | -19.8 | -39.9 |
| SF | 270 Win | 140 gr. SST® | 80563 | 3090 | 2894 | 2707 | 2528 | 2355 | 2189 | 2968 | 2604 | 2278 | 1986 | 1724 | 1490 | -1.5 | 1.3 | 0 | -6.1 | -17.6 | -35.5 |
| PH | 270 Win | 145 gr. ELD-X® | 80536 | 2970 | 2796 | 2627 | 2465 | 2308 | 2157 | 2840 | 2516 | 2222 | 1955 | 1714 | 1497 | -1.5 | 1.5 | 0 | -6.5 | -18.8 | -37.6 |
| O | 270 WSM | 130 gr. CX™ | 805574 | 3150 | 2907 | 2678 | 2460 | 2252 | 2054 | 2864 | 2440 | 2070 | 1747 | 1464 | 1218 | -1.5 | 1.3 | 0 | -6.2 | -18.1 | -36.9 |
| PH | 270 WSM | 145 gr. ELD-X® | 80558 | 3100 | 2918 | 2744 | 2576 | 2414 | 2258 | 3094 | 2741 | 2423 | 2136 | 1876 | 1641 | -1.5 | 1.3 | 0 | -5.9 | -17.1 | -34.2 |
| C | 275 Rigby | 140 gr. InterLock® SP | 8070 | 2680 | 2456 | 2242 | 2040 | 1848 | 1670 | 2217 | 1861 | 1552 | 1284 | 1054 | 860 | -1.5 | 2.2 | 0 | -9.1 | -26.5 | -54.2 |
| CL | 7mm-08 Rem | 120 gr. SST® | 80572 | 2675 | 2435 | 2207 | 1992 | 1790 | 1604 | 1907 | 1579 | 1298 | 1057 | 854 | 685 | -1.5 | 2.2 | 0 | -9.4 | -27.5 | -56.6 |
| SF | 7mm-08 Rem | 139 gr. CX™ | 805764 | 2910 | 2694 | 2488 | 2291 | 2103 | 1925 | 2613 | 2240 | 1910 | 1620 | 1365 | 1143 | -1.5 | 1.7 | 0 | -7.3 | -21.2 | -43.0 |
| AW | 7mm-08 Rem | 139 gr. InterLock® SP | 8057 | 2840 | 2608 | 2387 | 2177 | 1978 | 1790 | 2489 | 2098 | 1758 | 1463 | 1207 | 989 | -1.5 | 1.8 | 0 | -7.9 | -23.2 | -47.5 |
| SF | 7mm-08 Rem | 139 gr. SST® | 80573 | 2950 | 2757 | 2572 | 2395 | 2224 | 2061 | 2686 | 2346 | 2042 | 1770 | 1527 | 1311 | -1.5 | 1.5 | 0 | -6.8 | -19.7 | -39.6 |
| PH | 7mm-08 Rem | 150 gr. ELD-X® | 85578 | 2770 | 2613 | 2461 | 2315 | 2173 | 2037 | 2555 | 2274 | 2018 | 1784 | 1573 | 1381 | -1.5 | 1.8 | 0 | -7.5 | -21.6 | -43.0 |
| PH | 280 Rem | 150 gr. ELD-X® | 81587 | 2925 | 2763 | 2607 | 2455 | 2309 | 2167 | 2849 | 2543 | 2263 | 2007 | 1775 | 1564 | -1.5 | 1.5 | 0 | -6.7 | -19.1 | -38.0 |
| PH | 280 Ackley Imp | 162 gr. ELD-X® | 85586 | 2850 | 2704 | 2562 | 2424 | 2291 | 2162 | 2921 | 2629 | 2360 | 2114 | 1888 | 1681 | -1.5 | 1.6 | 0 | -6.9 | -19.8 | -39.3 |
| AW | 7mm Rem Mag | 139 gr. InterLock® SP | 80591 | 3150 | 2933 | 2728 | 2531 | 2343 | 2162 | 3062 | 2656 | 2296 | 1977 | 1694 | 1443 | -1.5 | 1.3 | 0 | -5.9 | -17.3 | -35.1 |
| SF | 7mm Rem Mag | 139 gr. SST® | 80593 | 3240 | 3033 | 2837 | 2649 | 2469 | 2295 | 3240 | 2840 | 2484 | 2166 | 1881 | 1626 | -1.5 | 1.2 | 0 | -5.5 | -15.9 | -32.0 |
| O | 7mm Rem Mag | 150 gr. CX™ | 806114 | 3000 | 2792 | 2593 | 2403 | 2221 | 2047 | 2997 | 2596 | 2240 | 1923 | 1643 | 1395 | -1.5 | 1.5 | 0 | -6.7 | -19.4 | -39.2 |
| AW | 7mm Rem Mag | 154 gr. InterLock® SP | 80590 | 3035 | 2815 | 2605 | 2405 | 2214 | 2031 | 3150 | 2709 | 2321 | 1978 | 1676 | 1411 | -1.5 | 1.5 | 0 | -6.6 | -19.2 | -38.9 |
| SF | 7mm Rem Mag | 154 gr. SST® | 8061 | 3100 | 2915 | 2737 | 2567 | 2403 | 2244 | 3286 | 2905 | 2562 | 2253 | 1974 | 1722 | -1.5 | 1.3 | 0 | -5.9 | -17.2 | -34.4 |
| PH | 7mm Rem Mag | 162 gr. ELD-X® | 80636 | 2975 | 2827 | 2682 | 2542 | 2406 | 2274 | 3183 | 2874 | 2588 | 2324 | 2082 | 1860 | -1.5 | 1.4 | 0 | -6.3 | -17.9 | -35.6 |
| SF | 7mm Rem Mag | 162 gr. SST® | 80633 | 3030 | 2856 | 2689 | 2527 | 2372 | 2222 | 3302 | 2933 | 2600 | 2298 | 2023 | 1775 | -1.5 | 1.4 | 0 | -6.2 | -17.8 | -35.7 |
| O | 7mm WSM | 150 gr. CX™ | 805514 | 3050 | 2839 | 2639 | 2447 | 2263 | 2087 | 3098 | 2685 | 2319 | 1994 | 1705 | 1450 | -1.5 | 1.4 | 0 | -6.4 | -18.6 | -37.7 |
| PH | 7mm WSM | 162 gr. ELD-X® | 80552 | 3000 | 2849 | 2702 | 2560 | 2423 | 2290 | 3237 | 2918 | 2626 | 2358 | 2112 | 1886 | -1.5 | 1.4 | 0 | -6.2 | -17.6 | -35.0 |
| LEV | 7-30 Waters | 120 gr. FTX® | 81569 | 2700 | 2425 | 2167 | 1926 | 1702 | 1500 | 1942 | 1567 | 1251 | 988 | 772 | 599 | -1.5 | 2.2 | 0 | -9.7 | -28.8 | -59.9 |
| PH | 28 Nosler | 162 gr. ELD-X® | 8069 | 3175 | 3017 | 2866 | 2719 | 2578 | 2440 | 3626 | 3275 | 2954 | 2660 | 2390 | 2142 | -1.5 | 1.2 | 0 | -5.4 | -15.5 | -30.9 |
| PH | 7mm STW | 162 gr. ELD-X® | 80851 | 3050 | 2897 | 2749 | 2606 | 2468 | 2333 | 3346 | 3018 | 2718 | 2443 | 2190 | 1958 | -1.5 | 1.3 | 0 | -5.6 | -17.0 | -33.8 |
| CD | 30 Carbine | 110 gr. FTX® (20″ Bbl) | 81030 | 2000 | 1601 | 1279 | 1067 | — | — | 977 | 626 | 399 | 278 | — | — | -0.9 | 0 | -12.9 | -47.2 | — | — |
| C | 300 Blackout | 110 gr. CX™ (16″ Bbl) | 808794 | 2285 | 2029 | 1791 | 1575 | 1383 | 1224 | 1275 | 1005 | 784 | 606 | 467 | 366 | -1.5 | 3.5 | 0 | -14.4 | -42.9 | -89.7 |
| B | 300 Blackout | 110 gr. V-MAX® (16″ Bbl) | 80873 | 2375 | 2094 | 1834 | 1597 | — | — | 1378 | 1071 | 821 | 623 | — | — | -1.5 | 3.2 | 0 | -13.7 | — | — |
| AG | 300 Blackout | 125 gr. HP Match (16″ Bbl) | 80897 | 2175 | 1932 | 1708 | 1505 | — | — | 1313 | 1036 | 810 | 609 | — | — | -1.5 | 4.0 | 0 | -15.9 | — | — |
| C | 300 Blackout | 135 gr. FTX® (16″ Bbl) | 80881 | 2085 | 1811 | 1564 | 1350 | — | — | 1303 | 983 | 733 | 546 | — | — | -1.5 | 4.6 | 0 | -18.9 | — | — |
| SUB | 300 Blackout | 190 gr. SUB-X™ (16″ Bbl) | 80877 | 1050 | 998 | 955 | 918 | — | — | 465 | 420 | 384 | 355 | — | — | -1.5 | 0 | -33.4 | -104.6 | — | — |
| B | 300 Blackout | 208 gr. A-MAX® (16″ Bbl) | 80891 | 1020 | 987 | 959 | — | — | — | 480 | 450 | 424 | — | — | — | -1.5 | 0 | -33.5 | — | — | — |
| LEV | 30-30 Win | 140 gr. MonoFlex® | 82731 | 2465 | 2183 | 1920 | 1679 | — | — | 1889 | 1481 | 1146 | 876 | — | — | -1.5 | 0 | -5.8 | -21.2 | — | — |
| AW | 30-30 Win | 150 gr. RN | 80801 | 2390 | 1959 | 1581 | 1276 | — | — | 1902 | 1278 | 832 | 542 | — | — | -1.5 | 0 | -7.7 | -29.6 | — | — |
| LEV | 30-30 Win | 160 gr. FTX® | 82730 | 2400 | 2151 | 1917 | 1700 | — | — | 2046 | 1643 | 1305 | 1027 | — | — | -1.5 | 3.0 | 0 | -12.5 | — | — |
| SUB | 30-30 Win | 175 gr. SUB-X™ | 80809 | 1050 | 977 | 921 | 874 | — | — | 428 | 371 | 329 | 297 | — | — | -1.5 | 0 | -34.9 | -110.8 | — | — |
| SF | 300 Savage | 150 gr. SST® | 82221 | 2740 | 2499 | 2272 | 2056 | 1852 | 1663 | 2500 | 2081 | 1718 | 1407 | 1143 | 921 | -1.5 | 2.1 | 0 | -8.8 | -25.8 | -53.1 |
| LEV | 307 Win | 160 gr. FTX® | 8273 | 2650 | 2386 | 2137 | 1904 | 1688 | 1492 | 2494 | 2022 | 1622 | 1287 | 1012 | 791 | -1.5 | 2.3 | 0 | -10 | -29.6 | -61.4 |
| LEV | 308 Marlin Express | 160 gr. FTX® | 82733 | 2660 | 2438 | 2227 | 2027 | 1838 | 1661 | 2514 | 2112 | 1762 | 1459 | 1200 | 980 | -1.5 | 2.2 | 0 | -9.2 | -26.9 | -54.9 |
| CL | 308 Win | 125 gr. SST® | 80866 | 2675 | 2389 | 2121 | 1871 | 1642 | 1437 | 1986 | 1584 | 1248 | 971 | 748 | 573 | -1.5 | 2.3 | 0 | -10.1 | -30.1 | -63.2 |
| AW | 308 Win | 150 gr. InterLock® SP | 8090 | 2820 | 2561 | 2316 | 2085 | 1868 | 1667 | 2649 | 2184 | 1787 | 1448 | 1162 | 925 | -1.5 | 1.9 | 0 | -8.4 | -24.9 | -51.3 |
| SF | 308 Win | 150 gr. SST® | 80933 | 3000 | 2772 | 2556 | 2350 | 2153 | 1966 | 2997 | 2559 | 2176 | 1839 | 1543 | 1287 | -1.5 | 1.5 | 0 | -6.8 | -20.0 | -40.7 |
| C | 308 Win | 150 gr. SST® | 8093 | 2820 | 2601 | 2393 | 2194 | 2005 | 1826 | 2649 | 2253 | 1907 | 1603 | 1338 | 1110 | -1.5 | 1.8 | 0 | -7.9 | -23.1 | -46.9 |
| B | 308 Win | 155 gr. A-MAX® | 80927 | 2850 | 2639 | 2438 | 2245 | 2062 | 1887 | 2795 | 2397 | 2045 | 1735 | 1463 | 1225 | -1.5 | 1.8 | 0 | -7.6 | -22.1 | -44.9 |
| AG | 308 Win | 155 gr. BTHP Match | 80967 | 2700 | 2482 | 2274 | 2076 | 1888 | 1712 | 2509 | 2119 | 1779 | 1483 | 1227 | 1009 | -1.5 | 2.1 | 0 | -8.8 | -25.7 | -52.4 |
| CD | 308 Win | 155 gr. FTX® | 80920 | 2785 | 2499 | 2231 | 1980 | — | — | 2669 | 2150 | 1713 | 1349 | — | — | -1.5 | 0 | -4.1 | -15.2 | — | — |
| O | 308 Win | 165 gr. CX™ | 809864 | 2610 | 2412 | 2224 | 2044 | 1872 | 1711 | 2496 | 2132 | 1812 | 1530 | 1284 | 1072 | -1.5 | 2.3 | 0 | -9.3 | -26.9 | -54.5 |
| SF | 308 Win | 165 gr. CX™ | 80990 | 2750 | 2546 | 2352 | 2166 | 1988 | 1820 | 2771 | 2375 | 2027 | 1719 | 1449 | 1214 | -1.5 | 2.0 | 0 | -8.2 | -23.9 | -48.4 |
| AW | 308 Win | 165 gr. InterLock® SP | 80904 | 2700 | 2496 | 2302 | 2116 | 1939 | 1772 | 2671 | 2283 | 1941 | 1640 | 1377 | 1150 | -1.5 | 2.1 | 0 | -8.6 | -25.0 | -50.7 |
| SF | 308 Win | 165 gr. SST® | 80983 | 2840 | 2636 | 2440 | 2253 | 2074 | 1904 | 2955 | 2545 | 2182 | 1860 | 1577 | 1328 | -1.5 | 1.8 | 0 | -7.6 | -22.1 | -44.6 |
| B | 308 Win | 168 gr. A-MAX® | 80971 | 2700 | 2513 | 2333 | 2161 | 1996 | 1839 | 2719 | 2355 | 2030 | 1742 | 1486 | 1261 | -1.5 | 2.0 | 0 | -8.4 | -24.3 | -48.9 |
| M | 308 Win | 168 gr. BTHP | 8097 | 2700 | 2503 | 2315 | 2134 | 1962 | 1799 | 2719 | 2337 | 1998 | 1699 | 1436 | 1207 | -1.5 | 2.0 | 0 | -8.5 | -24.7 | -50.0 |
| M | 308 Win | 168 gr. ELD® Match | 80966 | 2700 | 2530 | 2366 | 2209 | 2057 | 1912 | 2719 | 2388 | 2089 | 1820 | 1579 | 1364 | -1.5 | 2.0 | 0 | -8.2 | -23.5 | -47.1 |
| SM | 308 Win | 168 gr. ELD® Match | 80963 | 2840 | 2665 | 2496 | 2334 | 2177 | 2027 | 3009 | 2649 | 2324 | 2032 | 1769 | 1533 | -1.5 | 1.7 | 0 | -7.3 | -21.0 | -42.0 |
| M | 308 Win | 178 gr. BTHP | 8105 | 2600 | 2436 | 2278 | 2125 | 1979 | 1839 | 2672 | 2345 | 2050 | 1785 | 1548 | 1337 | -1.5 | 2.2 | 0 | -8.9 | -25.5 | -51.0 |
| PH | 308 Win | 178 gr. ELD-X® | 80994 | 2600 | 2443 | 2291 | 2145 | 2004 | 1868 | 2671 | 2358 | 2074 | 1818 | 1587 | 1379 | -1.5 | 2.2 | 0 | -8.8 | -25.2 | -50.2 |
| C | 30-40 Krag | 180 gr. InterLock® SP | 81202 | 2430 | 2234 | 2047 | 1869 | 1703 | 1548 | 2360 | 1994 | 1674 | 1397 | 1159 | 958 | -1.5 | 2.8 | 0 | -11.0 | -32.1 | -65.2 |
| SF | 30 TC | 150 gr. SST® | 81004 | 3000 | 2772 | 2556 | 2350 | 2153 | 1966 | 2997 | 2559 | 2176 | 1839 | 1543 | 1287 | -1.5 | 1.5 | 0 | -6.8 | -20.0 | -40.7 |
| CL | 30-06 Springfield | 125 gr. SST® | 81066 | 2700 | 2412 | 2143 | 1891 | 1660 | 1454 | 2023 | 1615 | 1274 | 993 | 765 | 586 | -1.5 | 2.3 | 0 | -9.9 | -29.5 | -61.9 |
| AW | 30-06 Springfield | 150 gr. InterLock® SP | 8108 | 2910 | 2637 | 2381 | 2139 | 1911 | 1700 | 2820 | 2317 | 1888 | 1523 | 1216 | 963 | -1.5 | 1.8 | 0 | -7.9 | -23.5 | -48.6 |
| SF | 30-06 Springfield | 150 gr. SST® | 81093 | 3080 | 2848 | 2628 | 2418 | 2218 | 2028 | 3159 | 2701 | 2300 | 1948 | 1639 | 1370 | -1.5 | 1.4 | 0 | -6.4 | -18.8 | -38.3 |
| SF | 30-06 Springfield | 165 gr. CX™ | 81169 | 2940 | 2728 | 2525 | 2332 | 2147 | 1970 | 3167 | 2726 | 2336 | 1992 | 1688 | 1422 | -1.5 | 1.6 | 0 | -7.0 | -20.5 | -41.5 |
| SF | 30-06 Springfield | 165 gr. SST® | 81153 | 2960 | 2750 | 2550 | 2358 | 2175 | 2000 | 3210 | 2770 | 2382 | 2037 | 1733 | 1465 | -1.5 | 1.6 | 0 | -6.9 | -20.1 | -40.6 |
| VM | 30-06 Springfield | 168 gr. ELD® Match | 81171 | 2710 | 2540 | 2376 | 2218 | 2066 | 1920 | 2739 | 2406 | 2105 | 1835 | 1592 | 1375 | -1.5 | 2.0 | 0 | -8.1 | -23.3 | -46.7 |
| PH | 30-06 Springfield | 178 gr. ELD-X® | 81174 | 2750 | 2588 | 2431 | 2280 | 2134 | 1993 | 2988 | 2646 | 2335 | 2054 | 1799 | 1570 | -1.5 | 1.8 | 0 | -7.7 | -22.2 | -44.3 |
| O | 30-06 Springfield | 180 gr. CX™ | 811644 | 2600 | 2415 | 2238 | 2068 | 1905 | 1752 | 2702 | 2331 | 2001 | 1709 | 1451 | 1227 | -1.5 | 2.2 | 0 | -9.2 | -26.5 | -53.5 |
| AW | 30-06 Springfield | 180 gr. InterLock® SP | 81084 | 2700 | 2492 | 2293 | 2103 | 1923 | 1753 | 2714 | 2481 | 2101 | 1768 | 1478 | 1228 | -1.5 | 2.1 | 0 | -8.7 | -25.2 | -51.2 |
| SF | 30-06 Springfield | 180 gr. SST® | 81183 | 2820 | 2630 | 2448 | 2274 | 2106 | 1946 | 3178 | 2765 | 2396 | 2066 | 1772 | 1513 | -1.5 | 1.8 | 0 | -7.6 | -21.9 | -44.1 |
| C | 300 H&H Mag | 180 gr. InterBond® | 8210 | 2870 | 2678 | 2494 | 2318 | 2148 | 1986 | 3292 | 2866 | 2486 | 2147 | 1844 | 1576 | -1.5 | 1.7 | 0 | -7.3 | -21.0 | -42.3 |
| PH | 300 RSAUM | 178 gr. ELD-X® | 82144 | 2950 | 2780 | 2616 | 2458 | 2305 | 2158 | 3439 | 3053 | 2704 | 2387 | 2100 | 1840 | -1.5 | 1.5 | 0 | -6.6 | -18.9 | -37.8 |
| SF | 300 RCM | 150 gr. SST® | 82231 | 3310 | 3065 | 2834 | 2615 | 2406 | 2207 | 3649 | 3129 | 2675 | 2277 | 1928 | 1622 | -1.5 | 1.1 | 0 | -5.5 | -16.0 | -32.6 |
| PH | 300 RCM | 178 gr. ELD-X® | 82224 | 2900 | 2733 | 2571 | 2415 | 2264 | 2119 | 3323 | 2952 | 2613 | 2305 | 2026 | 1774 | -1.5 | 1.6 | 0 | -6.8 | -19.7 | -39.3 |
| AW | 300 WSM | 165 gr. InterLock® | 82204 | 3130 | 2906 | 2693 | 2490 | 2296 | 2110 | 3589 | 3093 | 2657 | 2271 | 1931 | 1631 | -1.5 | 1.3 | 0 | -6.1 | -17.9 | -36.2 |
| O | 300 WSM | 180 gr. CX™ | 822034 | 2900 | 2702 | 2513 | 2332 | 2158 | 1992 | 3361 | 2918 | 2524 | 2173 | 1861 | 1585 | -1.5 | 1.6 | 0 | -7.1 | -20.7 | -41.8 |
| PH | 300 WSM | 200 gr. ELD-X® | 82208 | 2820 | 2667 | 2519 | 2375 | 2237 | 2103 | 3531 | 3158 | 2817 | 2506 | 2222 | 1963 | -1.5 | 1.7 | 0 | -7.2 | -20.6 | -40.9 |
| AW | 300 Win Mag | 150 gr. InterLock® SP | 8204 | 3275 | 2988 | 2719 | 2466 | 2227 | 2001 | 3572 | 2973 | 2463 | 2026 | 1651 | 1333 | -1.5 | 1.2 | 0 | -5.9 | -17.6 | -36.3 |
| SF | 300 Win Mag | 165 gr. CX™ | 820264 | 3260 | 3031 | 2815 | 2609 | 2412 | 2223 | 3893 | 3367 | 2903 | 2493 | 2131 | 1810 | -1.5 | 1.2 | 0 | -5.5 | -16.2 | -32.9 |
| PH | 300 Win Mag | 178 gr. ELD-X® | 82041 | 2960 | 2789 | 2625 | 2467 | 2314 | 2166 | 3463 | 3075 | 2723 | 2405 | 2116 | 1854 | -1.5 | 1.5 | 0 | -6.6 | -18.8 | -37.6 |
| M | 300 Win Mag | 178 gr. ELD® Match | 82043 | 2960 | 2788 | 2622 | 2462 | 2308 | 2159 | 3463 | 3071 | 2717 | 2396 | 2106 | 1843 | -1.5 | 1.5 | 0 | -6.5 | -18.8 | -37.7 |
| O | 300 Win Mag | 180 gr. CX™ | 821974 | 2960 | 2760 | 2568 | 2385 | 2209 | 2040 | 3502 | 3044 | 2636 | 2273 | 1949 | 1663 | -1.5 | 1.5 | 0 | -6.8 | -19.8 | -39.9 |
| AW | 300 Win Mag | 180 gr. InterLock® SP | 82044 | 2960 | 2739 | 2530 | 2329 | 2138 | 1956 | 3502 | 2999 | 2557 | 2168 | 1826 | 1529 | -1.5 | 1.6 | 0 | -7.0 | -20.4 | -41.5 |
| SF | 300 Win Mag | 180 gr. SST® | 82193 | 3130 | 2926 | 2732 | 2546 | 2368 | 2196 | 3915 | 3422 | 2983 | 2591 | 2240 | 1928 | -1.5 | 1.3 | 0 | -5.9 | -17.2 | -34.8 |
| M | 300 Win Mag | 195 gr. ELD® Match | 82180 | 2930 | 2769 | 2615 | 2465 | 2321 | 2181 | 3717 | 3321 | 2960 | 2631 | 2332 | 2059 | -1.5 | 1.5 | 0 | -6.6 | -18.9 | -37.7 |
| PH | 300 Win Mag | 200 gr. ELD-X® | 82002 | 2860 | 2707 | 2558 | 2414 | 2274 | 2140 | 3632 | 3253 | 2905 | 2587 | 2297 | 2033 | -1.5 | 1.6 | 0 | -6.9 | -19.9 | -39.5 |
| O | 300 Wby Mag | 180 gr. CX™ | 822124 | 3100 | 2893 | 2696 | 2507 | 2326 | 2152 | 3841 | 3345 | 2905 | 2512 | 2163 | 1852 | -1.5 | 1.3 | 0 | -6.1 | -17.8 | -35.9 |
| PH | 300 Wby Mag | 200 gr. ELD-X® | 82213 | 2960 | 2804 | 2652 | 2505 | 2363 | 2225 | 3890 | 3491 | 3123 | 2786 | 2479 | 2198 | -1.5 | 1.5 | 0 | -6.4 | -18.4 | -36.5 |
| O | 300 PRC | 190 gr. CX™ | 82164 | 3000 | 2834 | 2675 | 2521 | 2372 | 2229 | 3797 | 3389 | 3019 | 2682 | 2375 | 2095 | -1.5 | 1.4 | 0 | -6.3 | -18.0 | -36.0 |
| PH | 300 PRC | 212 gr. ELD-X® | 82166 | 2860 | 2723 | 2589 | 2460 | 2334 | 2212 | 3850 | 3489 | 3156 | 2849 | 2565 | 2304 | -1.5 | 1.6 | 0 | -6.8 | -19.3 | -38.3 |
| M | 300 PRC | 225 gr. ELD® Match | 82162 | 2810 | 2692 | 2577 | 2465 | 2356 | 2250 | 3945 | 3620 | 3318 | 3036 | 2773 | 2528 | -1.5 | 1.7 | 0 | -6.9 | -19.5 | -39.4 |
| O | 300 Rem Ultra Mag | 180 gr. CX™ | 82084 | 3200 | 2988 | 2787 | 2594 | 2410 | 2233 | 4093 | 3569 | 3104 | 2690 | 2321 | 1992 | -1.5 | 1.2 | 0 | -5.7 | -16.5 | -33.4 |
| PH | 300 Rem Ultra Mag | 220 gr. ELD-X® | 8209 | 2910 | 2766 | 2627 | 2492 | 2361 | 2234 | 4136 | 3738 | 3371 | 3034 | 2723 | 2438 | -1.5 | 1.5 | 0 | -6.5 | -18.7 | -37.1 |
| PH | 30-378 Wby Mag | 220 gr. ELD-X® | 82214 | 3025 | 2877 | 2735 | 2597 | 2463 | 2332 | 4470 | 4044 | 3653 | 3293 | 2962 | 2657 | -1.5 | 1.4 | 0 | -6.0 | -17.2 | -34.1 |
| AG | 7.62 x 39 | 123 gr. HP Match (20″ Bbl) | 80786 | 2350 | 2053 | 1780 | 1535 | 1324 | 1159 | 1508 | 1151 | 865 | 643 | 479 | 367 | -1.5 | 3.4 | 0 | -14.4 | -43.8 | -93.0 |
| B | 7.62 x 39 | 123 gr. SST® (20″ Bbl) | 80784 | 2350 | 2040 | 1756 | 1503 | 1290 | 1129 | 1508 | 1136 | 842 | 617 | 454 | 348 | -1.5 | 3.5 | 0 | -14.8 | -45.2 | -96.5 |
| C | 303 British | 150 gr. InterLock® SP | 8225 | 2685 | 2441 | 2211 | 1993 | 1789 | 1601 | 2401 | 1985 | 1628 | 1323 | 1066 | 854 | -1.5 | 2.2 | 0 | -9.3 | -27.4 | -56.4 |
| LEV | 32 Win Special | 165 gr. FTX® | 82732 | 2410 | 2144 | 1897 | 1669 | — | — | 2128 | 1685 | 1318 | 1020 | — | — | -0.9 | 3.4 | 0 | -13.1 | — | — |
| VM | 8 x 57 | 196 gr. BTHP | 82298 | 2500 | 2338 | 2182 | 2032 | 1888 | 1751 | 2720 | 2379 | 2072 | 1797 | 1552 | 1335 | -1.5 | 2.4 | 0 | -9.8 | -27.9 | -55.9 |
| LEV | 338 Marlin Express | 200 gr. FTX® | 82240 | 2565 | 2365 | 2174 | 1992 | 1820 | 1659 | 2922 | 2484 | 2099 | 1763 | 1471 | 1221 | -1.5 | 2.4 | 0 | -9.7 | -28.3 | -57.3 |
| SF | 338 RCM | 225 gr. SST® | 82236 | 2750 | 2575 | 2408 | 2246 | 2091 | 1942 | 3778 | 3314 | 2896 | 2521 | 2184 | 1884 | -1.5 | 1.9 | 0 | -7.9 | -22.7 | -45.5 |
| SF | 338 Win Mag | 200 gr. SST® | 82223 | 3030 | 2820 | 2620 | 2429 | 2246 | 2071 | 4077 | 3532 | 3049 | 2621 | 2240 | 1904 | -1.5 | 1.4 | 0 | -6.5 | -18.9 | -38.3 |
| O | 338 Win Mag | 225 gr. CX™ | 823394 | 2800 | 2615 | 2437 | 2266 | 2102 | 1945 | 3917 | 3416 | 2967 | 2566 | 2208 | 1891 | -1.5 | 1.8 | 0 | -7.6 | -22.1 | -44.4 |
| SF | 338 Win Mag | 225 gr. SST® | 82233 | 2840 | 2662 | 2491 | 2326 | 2168 | 2016 | 4029 | 3540 | 3100 | 2704 | 2348 | 2030 | -1.5 | 1.7 | 0 | -7.3 | -21.1 | -42.2 |
| PH | 338 Win Mag | 230 gr. ELD-X® | 82222 | 2810 | 2662 | 2519 | 2831 | 2246 | 2116 | 4032 | 3620 | 3241 | 2894 | 2576 | 2287 | -1.5 | 1.7 | 0 | -7.2 | -20.5 | -40.7 |
| M | 338 Lapua Mag | 250 gr. BTHP | 8230 | 2860 | 2722 | 2587 | 2457 | 2331 | 2208 | 4540 | 4111 | 3716 | 3351 | 3015 | 2706 | -1.5 | 1.6 | 0 | -6.8 | -19.3 | -38.3 |
| PH | 338 Lapua Mag | 270 gr. ELD-X® | 82313 | 2800 | 2680 | 2562 | 2447 | 2336 | 2227 | 4699 | 4304 | 3935 | 3590 | 3270 | 2973 | -1.5 | 1.7 | 0 | -7.0 | -19.7 | -39.9 |
| M | 338 Lapua Mag | 285 gr. ELD® Match | 82300 | 2745 | 2636 | 2530 | 2426 | 2324 | 2225 | 4768 | 4397 | 4049 | 3723 | 3418 | 3133 | -1.5 | 1.8 | 0 | -7.2 | -20.3 | -39.8 |
| LEV | 348 Win | 200 gr. FTX® | 82738 | 2560 | 2294 | 2044 | 1811 | 1597 | 1407 | 2910 | 2336 | 1855 | 1456 | 1133 | 879 | -1.5 | 2.6 | 0 | -10.8 | -32.6 | -67.9 |
| C | 350 Legend | 165 gr. FTX® | 81197 | 2200 | 1890 | 1612 | 1371 | — | — | 1773 | 1309 | 952 | 689 | — | — | -1.5 | 4.2 | 0 | -17.6 | — | — |
| AW | 350 Legend | 170 gr. InterLock® SP | 81196 | 2200 | 1843 | 1529 | 1271 | — | — | 1827 | 1281 | 882 | 609 | — | — | -1.5 | 4.5 | 0 | -19.4 | — | — |
| SUB | 350 Legend | 250 gr. SUB-X™ | 81198 | 1050 | 969 | 908 | 857 | 813 | 774 | 612 | 521 | 457 | 408 | 367 | 332 | -1.5 | 0 | -35.5 | -113.2 | -238.2 | -416.1 |
| LEV | 35 Rem | 200 gr. FTX® | 82735 | 2225 | 1963 | 1722 | 1505 | — | — | 2198 | 1711 | 1317 | 1006 | — | — | -1.5 | 3.8 | 0 | -15.6 | — | — |

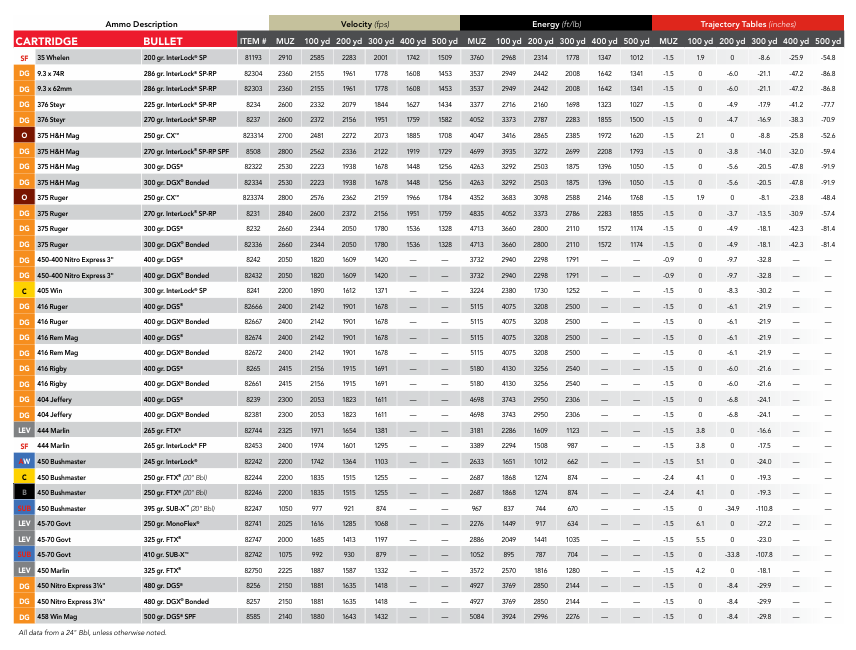

| C | 358 Win | 200 gr. InterLock® SP | 91318 | 2475 | 2180 | 1906 | 1655 | 1434 | 1248 | 2720 | 2110 | 1612 | 1217 | 913 | 692 | -1.5 | 2.9 | 0 | -12.6 | -37.9 | -80.3 |
| SF | 35 Whelen | 200 gr. InterLock® SP | 81193 | 2910 | 2585 | 2283 | 2001 | 1742 | 1509 | 3760 | 2968 | 2314 | 1778 | 1347 | 1012 | -1.5 | 1.9 | 0 | -8.6 | -25.9 | -54.8 |
| DG | 9.3 x 74R | 286 gr. InterLock® SP-RP | 82304 | 2360 | 2155 | 1961 | 1778 | 1608 | 1453 | 3537 | 2949 | 2442 | 2008 | 1642 | 1341 | -1.5 | 0 | -6.0 | -21.1 | -47.2 | -86.8 |
| DG | 9.3 x 62mm | 286 gr. InterLock® SP-RP | 82303 | 2360 | 2155 | 1961 | 1778 | 1608 | 1453 | 3537 | 2949 | 2442 | 2008 | 1642 | 1341 | -1.5 | 0 | -6.0 | -21.1 | -47.2 | -86.8 |
| DG | 376 Steyr | 225 gr. InterLock® SP-RP | 8234 | 2600 | 2332 | 2079 | 1844 | 1627 | 1434 | 3377 | 2716 | 2160 | 1698 | 1323 | 1027 | -1.5 | 0 | -4.9 | -17.9 | -41.2 | -77.7 |
| DG | 376 Steyr | 270 gr. InterLock® SP-RP | 8237 | 2600 | 2372 | 2156 | 1951 | 1759 | 1582 | 4052 | 3373 | 2787 | 2283 | 1855 | 1500 | -1.5 | 0 | -4.7 | -16.9 | -38.3 | -70.9 |
| O | 375 H&H Mag | 250 gr. CX™ | 823314 | 2700 | 2481 | 2272 | 2073 | 1885 | 1708 | 4047 | 3416 | 2865 | 2385 | 1972 | 1620 | -1.5 | 2.1 | 0 | -8.8 | -25.8 | -52.6 |
| DG | 375 H&H Mag | 270 gr. InterLock® SP-RP SPF | 8508 | 2800 | 2562 | 2336 | 2122 | 1919 | 1729 | 4699 | 3935 | 3272 | 2699 | 2208 | 1793 | -1.5 | 0 | -3.8 | -14.0 | -32.0 | -59.4 |
| DG | 375 H&H Mag | 300 gr. DGS® | 82322 | 2530 | 2223 | 1938 | 1678 | 1448 | 1256 | 4263 | 3292 | 2503 | 1875 | 1396 | 1050 | -1.5 | 0 | -5.6 | -20.5 | -47.8 | -91.9 |
| DG | 375 H&H Mag | 300 gr. DGX® Bonded | 82334 | 2530 | 2223 | 1938 | 1678 | 1448 | 1256 | 4263 | 3292 | 2503 | 1875 | 1396 | 1050 | -1.5 | 0 | -5.6 | -20.5 | -47.8 | -91.9 |
| O | 375 Ruger | 250 gr. CX™ | 823374 | 2800 | 2576 | 2362 | 2159 | 1966 | 1784 | 4352 | 3683 | 3098 | 2588 | 2146 | 1768 | -1.5 | 1.9 | 0 | -8.1 | -23.8 | -48.4 |
| DG | 375 Ruger | 270 gr. InterLock® SP-RP | 8231 | 2840 | 2600 | 2372 | 2156 | 1951 | 1759 | 4835 | 4052 | 3373 | 2786 | 2283 | 1855 | -1.5 | 0 | -3.7 | -13.5 | -30.9 | -57.4 |
| DG | 375 Ruger | 300 gr. DGS® | 8232 | 2660 | 2344 | 2050 | 1780 | 1536 | 1328 | 4713 | 3660 | 2800 | 2110 | 1572 | 1174 | -1.5 | 0 | -4.9 | -18.1 | -42.3 | -81.4 |
| DG | 375 Ruger | 300 gr. DGX® Bonded | 82336 | 2660 | 2344 | 2050 | 1780 | 1536 | 1328 | 4713 | 3660 | 2800 | 2110 | 1572 | 1174 | -1.5 | 0 | -4.9 | -18.1 | -42.3 | -81.4 |
| DG | 450-400 Nitro Express 3″ | 400 gr. DGS® | 8242 | 2050 | 1820 | 1609 | 1420 | — | — | 3732 | 2940 | 2298 | 1791 | — | — | -0.9 | 0 | -9.7 | -32.8 | — | — |
| DG | 450-400 Nitro Express 3″ | 400 gr. DGX® Bonded | 82432 | 2050 | 1820 | 1609 | 1420 | — | — | 3732 | 2940 | 2298 | 1791 | — | — | -0.9 | 0 | -9.7 | -32.8 | — | — |
| C | 405 Win | 300 gr. InterLock® SP | 8241 | 2200 | 1890 | 1612 | 1371 | — | — | 3224 | 2380 | 1730 | 1252 | — | — | -1.5 | 0 | -8.3 | -30.2 | — | — |
| DG | 416 Ruger | 400 gr. DGS® | 82666 | 2400 | 2142 | 1901 | 1678 | — | — | 5115 | 4075 | 3208 | 2500 | — | — | -1.5 | 0 | -6.1 | -21.9 | — | — |
| DG | 416 Ruger | 400 gr. DGX® Bonded | 82667 | 2400 | 2142 | 1901 | 1678 | — | — | 5115 | 4075 | 3208 | 2500 | — | — | -1.5 | 0 | -6.1 | -21.9 | — | — |
| DG | 416 Rem Mag | 400 gr. DGS® | 82674 | 2400 | 2142 | 1901 | 1678 | — | — | 5115 | 4075 | 3208 | 2500 | — | — | -1.5 | 0 | -6.1 | -21.9 | — | — |
| DG | 416 Rem Mag | 400 gr. DGX® Bonded | 82672 | 2400 | 2142 | 1901 | 1678 | — | — | 5115 | 4075 | 3208 | 2500 | — | — | -1.5 | 0 | -6.1 | -21.9 | — | — |
| DG | 416 Rigby | 400 gr. DGS® | 8265 | 2415 | 2156 | 1915 | 1691 | — | — | 5180 | 4130 | 3256 | 2540 | — | — | -1.5 | 0 | -6.0 | -21.6 | — | — |
| DG | 416 Rigby | 400 gr. DGX® Bonded | 82661 | 2415 | 2156 | 1915 | 1691 | — | — | 5180 | 4130 | 3256 | 2540 | — | — | -1.5 | 0 | -6.0 | -21.6 | — | — |
| DG | 404 Jeffery | 400 gr. DGS® | 8239 | 2300 | 2053 | 1823 | 1611 | — | — | 4698 | 3743 | 2950 | 2306 | — | — | -1.5 | 0 | -6.8 | -24.1 | — | — |
| DG | 404 Jeffery | 400 gr. DGX® Bonded | 82381 | 2300 | 2053 | 1823 | 1611 | — | — | 4698 | 3743 | 2950 | 2306 | — | — | -1.5 | 0 | -6.8 | -24.1 | — | — |
| LEV | 444 Marlin | 265 gr. FTX® | 82744 | 2325 | 1971 | 1654 | 1381 | — | — | 3181 | 2286 | 1609 | 1123 | — | — | -1.5 | 3.8 | 0 | -16.6 | — | — |
| SF | 444 Marlin | 265 gr. InterLock® FP | 82453 | 2400 | 1974 | 1601 | 1295 | — | — | 3389 | 2294 | 1508 | 987 | — | — | -1.5 | 3.8 | 0 | -17.5 | — | — |
| AW | 450 Bushmaster | 245 gr. InterLock® | 82242 | 2200 | 1742 | 1364 | 1103 | — | — | 2633 | 1651 | 1012 | 662 | — | — | -1.5 | 5.1 | 0 | -24.0 | — | — |
| C | 450 Bushmaster | 250 gr. FTX® (20″ Bbl) | 82244 | 2200 | 1835 | 1515 | 1255 | — | — | 2687 | 1868 | 1274 | 874 | — | — | -2.4 | 4.1 | 0 | -19.3 | — | — |
| B | 450 Bushmaster | 250 gr. FTX® (20″ Bbl) | 82246 | 2200 | 1835 | 1515 | 1255 | — | — | 2687 | 1868 | 1274 | 874 | — | — | -2.4 | 4.1 | 0 | -19.3 | — | — |
| SUB | 450 Bushmaster | 395 gr. SUB-X™ (20″ Bbl) | 82247 | 1050 | 977 | 921 | 874 | — | — | 967 | 837 | 744 | 670 | — | — | -1.5 | 0 | -34.9 | -110.8 | — | — |
| LEV | 45-70 Govt | 250 gr. MonoFlex® | 82741 | 2025 | 1616 | 1285 | 1068 | — | — | 2276 | 1449 | 917 | 634 | — | — | -1.5 | 6.1 | 0 | -27.2 | — | — |
| LEV | 45-70 Govt | 325 gr. FTX® | 82747 | 2000 | 1685 | 1413 | 1197 | — | — | 2886 | 2049 | 1441 | 1035 | — | — | -1.5 | 5.5 | 0 | -23.0 | — | — |
| SUB | 45-70 Govt | 410 gr. SUB-X™ | 82742 | 1075 | 992 | 930 | 879 | — | — | 1052 | 895 | 787 | 704 | — | — | -1.5 | 0 | -33.8 | -107.8 | — | — |
| LEV | 450 Marlin | 325 gr. FTX® | 82750 | 2225 | 1887 | 1587 | 1332 | — | — | 3572 | 2570 | 1816 | 1280 | — | — | -1.5 | 4.2 | 0 | -18.1 | — | — |
| DG | 450 Nitro Express 3¼” | 480 gr. DGS® | 8256 | 2150 | 1881 | 1635 | 1418 | — | — | 4927 | 3769 | 2850 | 2144 | — | — | -1.5 | 0 | -8.4 | -29.9 | — | — |
| DG | 450 Nitro Express 3¼” | 480 gr. DGX® Bonded | 8257 | 2150 | 1881 | 1635 | 1418 | — | — | 4927 | 3769 | 2850 | 2144 | — | — | -1.5 | 0 | -8.4 | -29.9 | — | — |
| DG | 458 Win Mag | 500 gr. DGS® SPF | 8585 | 2140 | 1880 | 1643 | 1432 | — | — | 5084 | 3924 | 2996 | 2276 | — | — | -1.5 | 0 | -8.4 | -29.8 | — | — |
| DG | 458 Win Mag | 500 gr. DGX® Bonded SPF | 85834 | 2140 | 1880 | 1643 | 1432 | — | — | 5084 | 3924 | 2996 | 2276 | — | — | -1.5 | 0 | -8.4 | -29.8 | — | — |
| DG | 458 Lott | 500 gr. DGS® | 8262 | 2300 | 2029 | 1778 | 1551 | — | — | 5873 | 4569 | 3509 | 2671 | — | — | -1.5 | 0 | -7.0 | -25.1 | — | — |
| DG | 458 Lott | 500 gr. DGX® Bonded | 82614 | 2300 | 2029 | 1778 | 1551 | — | — | 5873 | 4569 | 3509 | 2671 | — | — | -1.5 | 0 | -7.0 | -25.1 | — | — |
| DG | 470 Nitro Express | 500 gr. DGS® | 8264 | 2150 | 1885 | 1643 | 1429 | — | — | 5132 | 3945 | 2998 | 2267 | — | — | -0.9 | 0 | -8.9 | -30.8 | — | — |
| DG | 470 Nitro Express | 500 gr. DGX® Bonded | 82631 | 2150 | 1885 | 1643 | 1429 | — | — | 5132 | 3945 | 2998 | 2267 | — | — | -0.9 | 0 | -8.9 | -30.8 | — | — |
| DG | 500 Nitro Express 3″ | 570 gr. DGS® | 8269 | 2120 | 1862 | 1626 | 1417 | — | — | 5688 | 4386 | 3346 | 2542 | — | — | -0.9 | 0 | -9.2 | -31.6 | — | — |
| DG | 500 Nitro Express 3″ | 570 gr. DGX® Bonded | 82689 | 2120 | 1862 | 1626 | 1417 | — | — | 5688 | 4386 | 3346 | 2542 | — | — | -0.9 | 0 | -9.2 | -31.6 | — | — |
| M | 50 BMG | 750 gr. A-MAX® (36″ Bbl) | 8270 | 2815 | 2727 | 2641 | 2557 | 2474 | 2393 | 13196 | 12386 | 11619 | 10889 | 10196 | 9538 | -1.8 | 1.4 | 0 | -6.4 | -18.2 | -35.6 |
All data from a 24-inch barrel, unless otherwise noted.
Rifle Ammunition Product Lines
Hornady® Bullet Types

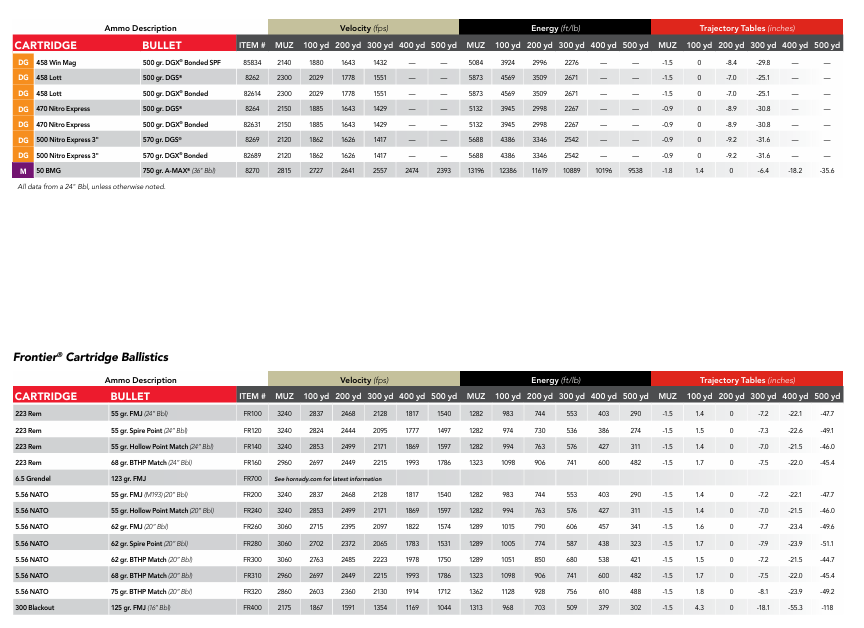

2. Frontier® Cartridge Ballistics
| Ammo Description | Velocity (fps) | Energy (ft/lb) | Trajectory (inches) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cartridge | Bullet | Item # | MUZ | 100 yd | 200 yd | 300 yd | 400 yd | 500 yd | MUZ | 100 yd | 200 yd | 300 yd | 400 yd | 500 yd | MUZ | 100 yd | 200 yd | 300 yd | 400 yd | 500 yd | |
| 223 Rem | 55 gr. FMJ (24” Bbl) | FR100 | 3240 | 2837 | 2468 | 2128 | 1817 | 1540 | 1282 | 983 | 744 | 553 | 403 | 290 | -1.5 | 1.4 | 0 | -7.2 | -22.1 | -47.7 | |
| 223 Rem | 55 gr. Spire Point (24” Bbl) | FR120 | 3240 | 2824 | 2444 | 2095 | 1777 | 1497 | 1282 | 974 | 730 | 536 | 386 | 274 | -1.5 | 1.5 | 0 | -7.3 | -22.6 | -49.1 | |
| 223 Rem | 55 gr. Hollow Point Match (24” Bbl) | FR140 | 3240 | 2853 | 2499 | 2171 | 1869 | 1597 | 1282 | 994 | 763 | 576 | 427 | 311 | -1.5 | 1.4 | 0 | -7.0 | -21.5 | -46.0 | |
| 223 Rem | 68 gr. BTHP Match (24” Bbl) | FR160 | 2960 | 2697 | 2449 | 2215 | 1993 | 1786 | 1323 | 1098 | 906 | 741 | 600 | 482 | -1.5 | 1.7 | 0 | -7.5 | -22.0 | -45.4 | |
| 6.5 Grendel | 123 gr. FMJ | FR700 | See hornady.com for latest information | ||||||||||||||||||
| 5.56 NATO | 55 gr. FMJ (M193) (20” Bbl) | FR200 | 3240 | 2837 | 2468 | 2128 | 1817 | 1540 | 1282 | 983 | 744 | 553 | 403 | 290 | -1.5 | 1.4 | 0 | -7.2 | -22.1 | -47.7 | |
| 5.56 NATO | 55 gr. Hollow Point Match (20” Bbl) | FR240 | 3240 | 2853 | 2499 | 2171 | 1869 | 1597 | 1282 | 994 | 763 | 576 | 427 | 311 | -1.5 | 1.4 | 0 | -7.0 | -21.5 | -46.0 | |
| 5.56 NATO | 62 gr. FMJ (20” Bbl) | FR260 | 3060 | 2715 | 2395 | 2097 | 1822 | 1574 | 1289 | 1015 | 790 | 606 | 457 | 341 | -1.5 | 1.6 | 0 | -7.7 | -23.4 | -49.6 | |
| 5.56 NATO | 62 gr. Spire Point (20” Bbl) | FR280 | 3060 | 2702 | 2372 | 2065 | 1783 | 1531 | 1289 | 1005 | 774 | 587 | 438 | 323 | -1.5 | 1.7 | 0 | -7.9 | -23.9 | -51.1 | |
| 5.56 NATO | 62 gr. BTHP Match (20” Bbl) | FR300 | 3060 | 2763 | 2485 | 2223 | 1978 | 1750 | 1289 | 1051 | 850 | 680 | 538 | 421 | -1.5 | 1.5 | 0 | -7.2 | -21.5 | -44.7 | |
| 5.56 NATO | 68 gr. BTHP Match (20” Bbl) | FR310 | 2960 | 2697 | 2449 | 2215 | 1993 | 1786 | 1323 | 1098 | 906 | 741 | 600 | 482 | -1.5 | 1.7 | 0 | -7.5 | -22.0 | -45.4 | |
| 5.56 NATO | 75 gr. BTHP Match (20” Bbl) | FR320 | 2860 | 2603 | 2360 | 2130 | 1914 | 1712 | 1362 | 1128 | 928 | 756 | 610 | 488 | -1.5 | 1.8 | 0 | -8.1 | -23.9 | -49.2 | |
| 300 Blackout | 125 gr. FMJ (16” Bbl) | FR400 | 2175 | 1867 | 1591 | 1354 | 1169 | 1044 | 1313 | 968 | 703 | 509 | 379 | 302 | -1.5 | 4.3 | 0 | -18.1 | -55.3 | -118 | |

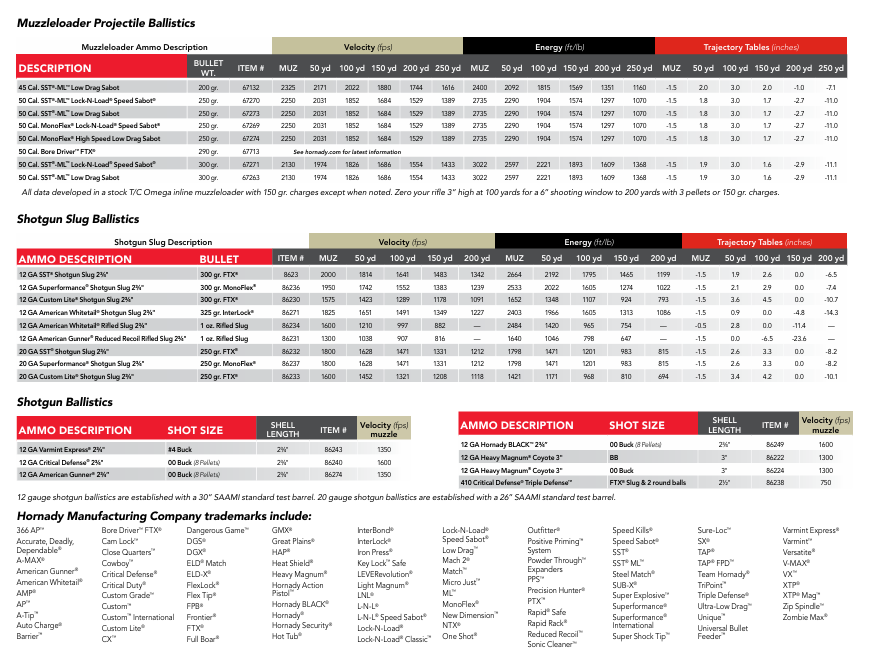

3. Muzzleloader Projectile Ballistics
| Muzzleloader Ammo Description | Velocity (fps) | Energy (ft/lb) | Trajectory (inches) | |||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Description | Bullet WT. | Item # | MUZ | 50 yd | 100 yd | 150 yd | 200 yd | 250 yd | MUZ | 50 yd | 100 yd | 150 yd | 200 yd | 250 yd | MUZ | 50 yd | 100 yd | 150 yd | 200 yd | 250 yd |
| 45 Cal. SST®-ML™ Low Drag Sabot | 200 gr. | 67132 | 2325 | 2171 | 2022 | 1880 | 1744 | 1616 | 2400 | 2092 | 1815 | 1569 | 1351 | 1160 | -1.5 | 2.0 | 3.0 | 2.0 | -1.0 | -7.1 |
| 50 Cal. SST®-ML™ Lock-N-Load® Speed Sabot® | 250 gr. | 67270 | 2250 | 2031 | 1852 | 1684 | 1529 | 1389 | 2735 | 2290 | 1904 | 1574 | 1297 | 1070 | -1.5 | 1.8 | 3.0 | 1.7 | -2.7 | -11.0 |
| 50 Cal. SST®-ML™ Low Drag Sabot | 250 gr. | 67273 | 2250 | 2031 | 1852 | 1684 | 1529 | 1389 | 2735 | 2290 | 1904 | 1574 | 1297 | 1070 | -1.5 | 1.8 | 3.0 | 1.7 | -2.7 | -11.0 |
| 50 Cal. MonoFlex® Lock-N-Load® Speed Sabot® | 250 gr. | 67269 | 2250 | 2031 | 1852 | 1684 | 1529 | 1389 | 2735 | 2290 | 1904 | 1574 | 1297 | 1070 | -1.5 | 1.8 | 3.0 | 1.7 | -2.7 | -11.0 |
| 50 Cal. MonoFlex® High Speed Low Drag Sabot | 250 gr. | 67274 | 2250 | 2031 | 1852 | 1684 | 1529 | 1389 | 2735 | 2290 | 1904 | 1574 | 1297 | 1070 | -1.5 | 1.8 | 3.0 | 1.7 | -2.7 | -11.0 |
| 50 Cal. Bore Driver™ FTX® | 290 gr. | 67713 | See hornady.com for latest information | |||||||||||||||||
| 50 Cal. SST®-ML™ Lock-N-Load® Speed Sabot® | 300 gr. | 67271 | 2130 | 1974 | 1826 | 1686 | 1554 | 1433 | 3022 | 2597 | 2221 | 1893 | 1609 | 1368 | -1.5 | 1.9 | 3.0 | 1.6 | -2.9 | -11.1 |
| 50 Cal. SST®-ML™ Low Drag Sabot | 300 gr. | 67263 | 2130 | 1974 | 1826 | 1686 | 1554 | 1433 | 3022 | 2597 | 2221 | 1893 | 1609 | 1368 | -1.5 | 1.9 | 3.0 | 1.6 | -2.9 | -11.1 |
4. Shotgun Slug Ballistics
Shotgun slug velocity, energy, and trajectory data at different distances.
| AMMO DESCRIPTION | VELOCITY (fps) | ENERGY (ft/lb) | TRAJECTORY (inches) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GAUGE / LOAD | BULLET | ITEM # | MUZ | 50 yd | 100 yd | 150 yd | 200 yd | MUZ | 50 yd | 100 yd | 150 yd | 200 yd | MUZ | 50 yd | 100 yd | 150 yd | 200 yd |
| 12 GA | SST® Shotgun Slug 2¾”, 300 gr. FTX® | 8623 | 2000 | 1814 | 1641 | 1483 | 1342 | 2664 | 2192 | 1795 | 1465 | 1199 | -1.5 | 1.9 | 2.6 | 0.0 | -6.5 |
| 12 GA | Superformance® Shotgun Slug 2¾”, 300 gr. MonoFlex® | 86236 | 1950 | 1742 | 1552 | 1383 | 1239 | 2533 | 2022 | 1605 | 1274 | 1022 | -1.5 | 2.1 | 2.9 | 0.0 | -7.4 |
| 12 GA | Custom Lite® Shotgun Slug 2¾”, 300 gr. FTX® | 86230 | 1575 | 1423 | 1289 | 1178 | 1091 | 1652 | 1348 | 1107 | 924 | 793 | -1.5 | 3.6 | 4.5 | 0.0 | -10.7 |
| 12 GA | American Whitetail® Shotgun Slug 2¾”, 325 gr. InterLock® | 86271 | 1825 | 1651 | 1491 | 1349 | 1227 | 2403 | 1966 | 1605 | 1313 | 1086 | -1.5 | 0.9 | 0.0 | -4.8 | -14.3 |
| 12 GA | American Whitetail® Rifled Slug 2¾”, 1 oz. | 86234 | 1600 | 1210 | 997 | 882 | — | 2484 | 1420 | 965 | 754 | — | -0.5 | 2.8 | 0.0 | -11.4 | — |
| 12 GA | American Gunner® Reduced Recoil Rifled Slug 2¾”, 1 oz. | 86231 | 1300 | 1038 | 907 | 816 | — | 1640 | 1046 | 798 | 647 | — | -1.5 | 0.0 | -6.5 | -23.6 | — |
| 20 GA | SST® Shotgun Slug 2¾”, 250 gr. FTX® | 86232 | 1800 | 1628 | 1471 | 1331 | 1212 | 1798 | 1471 | 1201 | 983 | 815 | -1.5 | 2.6 | 3.3 | 0.0 | -8.2 |
| 20 GA | Superformance® Shotgun Slug 2¾”, 250 gr. MonoFlex® | 86237 | 1800 | 1628 | 1471 | 1331 | 1212 | 1798 | 1471 | 1201 | 983 | 815 | -1.5 | 2.6 | 3.3 | 0.0 | -8.2 |
| 20 GA | Custom Lite® Shotgun Slug 2¾”, 250 gr. FTX® | 86233 | 1600 | 1452 | 1321 | 1208 | 1118 | 1421 | 1171 | 968 | 810 | 694 | -1.5 | 3.4 | 4.2 | 0.0 | -10.1 |
5. Shotgun Ballistics
Shotgun ammunition shot size, shell length, and muzzle velocity specifications.
| AMMUNITION DETAILS | ITEM # | VELOCITY (fps) | |||
|---|---|---|---|---|---|
| GAUGE | AMMO DESCRIPTION | SHOT SIZE | SHELL LENGTH | ITEM # | MUZZLE |
| 12 GA | Varmint Express® | #4 Buck | 2¾” | 86243 | 1350 |
| 12 GA | Critical Defense® | 00 Buck (8 Pellets) | 2¾” | 86240 | 1600 |
| 12 GA | American Gunner® | 00 Buck (8 Pellets) | 2¾” | 86274 | 1350 |
| 12 GA | Hornady BLACK™ | 00 Buck (8 Pellets) | 2¾” | 86249 | 1600 |
| 12 GA | Heavy Magnum® Coyote | BB | 3″ | 86222 | 1300 |
| 12 GA | Heavy Magnum® Coyote | 00 Buck | 3″ | 86224 | 1300 |
| 410 | Critical Defense® Triple Defense™ | FTX® Slug & 2 Round Balls | 2½” | 86238 | 750 |
12 gauge shotgun ballistics are established with a 30” SAAMI standard test barrel. 20 gauge shotgun ballistics are established with a 26” SAAMI standard test barrel.
Hornady Manufacturing Company Trademarks
Official trademarks and registered marks associated with Hornady Manufacturing Company.
| TRADEMARK LIST | |
|---|---|
| TRADEMARK | TRADEMARK |
| 366 AP™ | Accurate, Deadly, Dependable® |
| A-MAX® | American Gunner® |
| American Whitetail® | AMP® |
| AP™ | A-Tip™ |
| Auto Charge® | Barrier™ |
| Bore Driver™ FTX® | Cam Lock™ |
| Close Quarters™ | Cowboy™ |
| Critical Defense® | Critical Duty® |
| Custom Grade™ | Custom™ |
| Custom™ International | Custom Lite® |
| CX™ | Dangerous Game™ |
| DGS® | DGX® |
| ELD® Match | ELD-X® |
| FlexLock® | Flex Tip® |
| FPB® | Frontier® |
| FTX® | Full Boar® |
| GMX® | Great Plains® |
| HAP® | Heat Shield® |
| Heavy Magnum® | Hornady Action Pistol™ |
| Hornady BLACK® | Hornady® |
| Hornady Security® | Hot Tub® |
| InterBond® | InterLock® |
| Iron Press® | Key Lock™ Safe |
| LEVERevolution® | Light Magnum® |
| LNL® | L-N-L® |
| L-N-L® Speed Sabot® | Lock-N-Load® |
| Lock-N-Load® Classic™ | Lock-N-Load® Speed Sabot® |
| Low Drag™ | Mach 2® |
| Match™ | Micro Just™ |
| ML™ | MonoFlex® |
| New Dimension™ | NTX® |
| One Shot® | Outfitter® |
| Positive Priming™ System | Powder Through™ Expanders |
| PPS™ | Precision Hunter® |
| PTX™ | Rapid® Safe |
| Rapid Rack® | Reduced Recoil™ |
| Sonic Cleaner™ | Speed Kills® |
| Speed Sabot® | SST® |
| SST® ML™ | Steel Match® |
| SUB-X® | Super Explosive™ |
| Superformance® | Superformance® International |
| Super Shock Tip™ | Sure-Loc™ |
| SX® | TAP® |
| TAP® FPD™ | Team Hornady® |
| TriPoint™ | Triple Defense® |
| Ultra-Low Drag™ | Unique™ |
| Universal Bullet Feeder™ | Varmint Express® |
| Varmint™ | Versatite® |
| V-MAX® | VX™ |
| XTP® | XTP® Mag™ |
| Zip Spindle™ | Zombie Max® |
Handgun Ammunition Product Lines

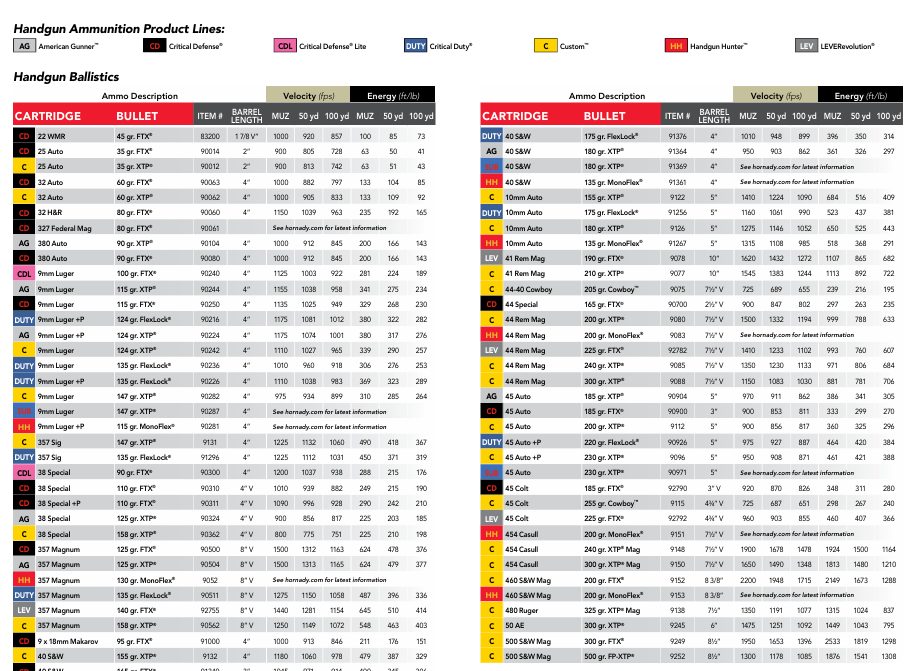

6. Handgun Ballistics
Handgun ammunition velocity and energy data at the muzzle, 50 yards, and 100 yards.
| AMMUNITION DETAILS | VELOCITY (FPS) | ENERGY (FT/LB) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| CARTRIDGE | BULLET | ITEM # | BARREL LENGTH | MUZ | 50 YD | 100 YD | MUZ | 50 YD | 100 YD |
| CD 22 WMR | 45 gr. FTX® | 83200 | 1 7/8″ V | 1000 | 920 | 857 | 100 | 85 | 73 |
| CD 25 Auto | 35 gr. FTX® | 90014 | 2″ | 900 | 805 | 728 | 63 | 50 | 41 |
| C 25 Auto | 35 gr. XTP® | 90012 | 2″ | 900 | 813 | 742 | 63 | 51 | 43 |
| CD 32 Auto | 60 gr. FTX® | 90063 | 4″ | 1000 | 882 | 797 | 133 | 104 | 85 |
| C 32 Auto | 60 gr. XTP® | 90062 | 4″ | 1000 | 905 | 833 | 133 | 109 | 92 |
| CD 32 H&R | 80 gr. FTX® | 90060 | 4″ | 1150 | 1039 | 963 | 235 | 192 | 165 |
| CD 327 Federal Mag | 80 gr. FTX® | 90061 | See hornady.com for latest information | ||||||
| AG 380 Auto | 90 gr. XTP® | 90104 | 4″ | 1000 | 912 | 845 | 200 | 166 | 143 |
| CD 380 Auto | 90 gr. FTX® | 90080 | 4″ | 1000 | 912 | 845 | 200 | 166 | 143 |
| CDL 9mm Luger | 100 gr. FTX® | 90240 | 4″ | 1125 | 1003 | 922 | 281 | 224 | 189 |
| AG 9mm Luger | 115 gr. XTP® | 90244 | 4″ | 1155 | 1038 | 958 | 341 | 275 | 234 |
| CD 9mm Luger | 115 gr. FTX® | 90250 | 4″ | 1135 | 1025 | 949 | 329 | 268 | 230 |
| DUTY 9mm Luger +P | 124 gr. FlexLock® | 90216 | 4″ | 1175 | 1081 | 1012 | 380 | 322 | 282 |
| AG 9mm Luger +P | 124 gr. XTP® | 90224 | 4″ | 1175 | 1074 | 1001 | 380 | 317 | 276 |
| C 9mm Luger | 124 gr. XTP® | 90242 | 4″ | 1110 | 1027 | 965 | 339 | 290 | 257 |
| DUTY 9mm Luger | 135 gr. FlexLock® | 90236 | 4″ | 1010 | 960 | 918 | 306 | 276 | 253 |
| DUTY 9mm Luger +P | 135 gr. FlexLock® | 90226 | 4″ | 1110 | 1038 | 983 | 369 | 323 | 289 |
| C 9mm Luger | 147 gr. XTP® | 90282 | 4″ | 975 | 934 | 899 | 310 | 285 | 264 |
| SUB 9mm Luger | 147 gr. XTP® | 90287 | 4″ | See hornady.com for latest information | |||||
| HH 9mm Luger +P | 115 gr. MonoFlex® | 90281 | 4″ | See hornady.com for latest information | |||||
| C 357 Sig | 147 gr. XTP® | 9131 | 4″ | 1225 | 1132 | 1060 | 490 | 418 | 367 |
| DUTY 357 Sig | 135 gr. FlexLock® | 91296 | 4″ | 1225 | 1112 | 1031 | 450 | 371 | 319 |
| CDL 38 Special | 90 gr. FTX® | 90300 | 4″ | 1200 | 1037 | 938 | 288 | 215 | 176 |
| CD 38 Special | 110 gr. FTX® | 90310 | 4″ V | 1010 | 939 | 882 | 249 | 215 | 190 |
| CD 38 Special +P | 110 gr. FTX® | 90311 | 4″ V | 1090 | 996 | 928 | 290 | 242 | 210 |
| AG 38 Special | 125 gr. XTP® | 90324 | 4″ V | 900 | 856 | 817 | 225 | 203 | 185 |
| C 38 Special | 158 gr. XTP® | 90362 | 4″ V | 800 | 775 | 751 | 225 | 210 | 198 |
| CD 357 Magnum | 125 gr. FTX® | 90500 | 8″ V | 1500 | 1312 | 1163 | 624 | 478 | 376 |
| AG 357 Magnum | 125 gr. XTP® | 90504 | 8″ V | 1500 | 1313 | 1165 | 624 | 479 | 377 |
| HH 357 Magnum | 130 gr. MonoFlex® | 9052 | 8″ V | See hornady.com for latest information | |||||
| DUTY 357 Magnum | 135 gr. FlexLock® | 90511 | 8″ V | 1275 | 1150 | 1058 | 487 | 396 | 336 |
| LEV 357 Magnum | 140 gr. FTX® | 92755 | 8″ V | 1440 | 1281 | 1154 | 645 | 510 | 414 |
| C 357 Magnum | 158 gr. XTP® | 90562 | 8″ V | 1250 | 1149 | 1072 | 548 | 463 | 403 |
| CD 9 x 18mm Makarov | 95 gr. FTX® | 91000 | 4″ | 1000 | 913 | 846 | 211 | 176 | 151 |
| C 40 S&W | 155 gr. XTP® | 9132 | 4″ | 1180 | 1060 | 978 | 479 | 387 | 329 |
| CD 40 S&W | 165 gr. FTX® | 91340 | 3″ | 1045 | 971 | 914 | 400 | 345 | 306 |
| DUTY 40 S&W | 175 gr. FlexLock® | 91376 | 4” | 1010 | 948 | 899 | 396 | 350 | 314 |
| AG 40 S&W | 180 gr. XTP® | 91364 | 4” | 950 | 903 | 862 | 361 | 326 | 297 |
| SUB 40 S&W | 180 gr. XTP® | 91369 | 4” | See hornady.com for latest information | |||||
| HH 40 S&W | 135 gr. MonoFlex® | 91361 | 4” | See hornady.com for latest information | |||||
| C 10mm Auto | 155 gr. XTP® | 9122 | 5” | 1410 | 1224 | 1090 | 684 | 516 | 409 |
| DUTY 10mm Auto | 175 gr. FlexLock® | 91256 | 5” | 1160 | 1061 | 990 | 523 | 437 | 381 |
| C 10mm Auto | 180 gr. XTP® | 9126 | 5” | 1275 | 1146 | 1052 | 650 | 525 | 443 |
| HH 10mm Auto | 135 gr. MonoFlex® | 91267 | 5” | 1315 | 1108 | 985 | 518 | 368 | 291 |
| LEV 41 Rem Mag | 190 gr. FTX® | 9078 | 10” | 1620 | 1432 | 1272 | 1107 | 865 | 682 |
| C 41 Rem Mag | 210 gr. XTP® | 9077 | 10” | 1545 | 1383 | 1244 | 1113 | 892 | 722 |
| C 44-40 Cowboy | 205 gr. Cowboy™ | 9075 | 7½” V | 725 | 689 | 655 | 239 | 216 | 195 |
| CD 44 Special | 165 gr. FTX® | 90700 | 2½” V | 900 | 847 | 802 | 297 | 263 | 235 |
| C 44 Rem Mag | 200 gr. XTP® | 9080 | 7½” V | 1500 | 1332 | 1194 | 999 | 788 | 633 |
| HH 44 Rem Mag | 200 gr. MonoFlex® | 9083 | 7½” V | See hornady.com for latest information | |||||
| LEV 44 Rem Mag | 225 gr. FTX® | 92782 | 7½” V | 1410 | 1233 | 1102 | 993 | 760 | 607 |
| C 44 Rem Mag | 240 gr. XTP® | 9085 | 7½” V | 1350 | 1230 | 1133 | 971 | 806 | 684 |
| C 44 Rem Mag | 300 gr. XTP® | 9088 | 7½” V | 1150 | 1083 | 1030 | 881 | 781 | 706 |
| AG 45 Auto | 185 gr. XTP® | 90904 | 5” | 970 | 911 | 862 | 386 | 341 | 305 |
| CD 45 Auto | 185 gr. FTX® | 90900 | 3” | 900 | 853 | 811 | 333 | 299 | 270 |
| C 45 Auto | 200 gr. XTP® | 9112 | 5” | 900 | 856 | 817 | 360 | 325 | 296 |
| DUTY 45 Auto +P | 220 gr. FlexLock® | 90926 | 5” | 975 | 927 | 887 | 464 | 420 | 384 |
| C 45 Auto +P | 230 gr. XTP® | 9096 | 5” | 950 | 908 | 871 | 461 | 421 | 388 |
| SUB 45 Auto | 230 gr. XTP® | 90971 | 5” | See hornady.com for latest information | |||||
| CD 45 Colt | 185 gr. FTX® | 92790 | 3” V | 920 | 870 | 826 | 348 | 311 | 280 |
| C 45 Colt | 255 gr. Cowboy™ | 9115 | 4¾” V | 725 | 687 | 651 | 298 | 267 | 240 |
| LEV 45 Colt | 225 gr. FTX® | 92792 | 4¾” V | 960 | 903 | 855 | 460 | 407 | 366 |
| HH 454 Casull | 200 gr. MonoFlex® | 9151 | 7½” V | See hornady.com for latest information | |||||
| C 454 Casull | 240 gr. XTP® Mag | 9148 | 7½” V | 1900 | 1678 | 1478 | 1924 | 1500 | 1164 |
| C 454 Casull | 300 gr. XTP® Mag | 9150 | 7½” V | 1650 | 1490 | 1348 | 1813 | 1480 | 1210 |
| C 460 S&W Mag | 200 gr. FTX® | 9152 | 8 3/8” | 2200 | 1948 | 1715 | 2149 | 1673 | 1288 |
| HH 460 S&W Mag | 200 gr. MonoFlex® | 9153 | 8 3/8” | See hornady.com for latest information | |||||
| C 480 Ruger | 325 gr. XTP® Mag | 9138 | 7½” | 1350 | 1191 | 1077 | 1315 | 1024 | 837 |
| C 50 AE | 300 gr. XTP® | 9245 | 6” | 1475 | 1251 | 1092 | 1449 | 1043 | 795 |
| C 500 S&W Mag | 300 gr. FTX® | 9249 | 8½” | 1950 | 1653 | 1396 | 2533 | 1819 | 1298 |
| C 500 S&W Mag | 500 gr. FP-XTP® | 9252 | 8½” | 1300 | 1178 | 1085 | 1876 | 1541 | 1308 |
Hornady Ballistic Coefficient Chart
| Bullet Weight | Bullet Type | Manufacturer | Muzzle Velocity | Velocity At 100 Yards | Velocity At 200 Yards | Velocity At 300 Yards | Velocity At 400 Yards | Velocity At 500 Yards | Muzzle Energy | Energy At 100 Yards | Energy At 200 Yards | Energy At 300 Yards | Energy At 400 Yards | Energy At 500 Yards | Trajectory At 100 Yards | Trajectory At 200 Yards | Trajectory At 300 Yards | Trajectory At 400 Yards | Trajectory At 500 Yards | Ballistic Coefficient | Sectional Density |
| 140 Grain | ELD Match | Hornady | 2710 | 2577 | 2447 | 2321 | 2199 | 2080 | 2283 | 2064 | 1861 | 1675 | 1503 | 1345 | High 1.9 | Zero | Drop 7.9 | Drop 22.4 | Drop 44.4 | 0.646 | 0.287 |
| 168 Grain | ELD Match | Hornady | 2700 | 2524 | 2355 | 2192 | 2036 | 1887 | 2719 | 2377 | 2069 | 1792 | 1546 | 1329 | High 2.0 | Zero | Drop 8.5 | Drop 24.5 | Drop 49.3 | 0.523 | 0.253 |
| 178 Grain | ELD X | Hornady | 2750 | 2588 | 2432 | 2281 | 2135 | 1995 | 2989 | 2648 | 2338 | 2056 | 1802 | 1572 | High 1.9 | Zero | Drop 8.0 | Drop 22.8 | Drop 45.3 | 0.552 | 0.268 |
| 200 Grain | ELD X | Hornady | 2850 | 2703 | 2561 | 2423 | 2289 | 2160 | 3607 | 3245 | 2912 | 2606 | 2328 | 2071 | High 1.6 | Zero | Drop 7.1 | Drop 20.0 | Drop 39.5 | 0.597 | 0.301 |
| 73 Grain | ELD Match | Hornady | 2790 | 2560 | 2341 | 2132 | 1934 | 1748 | 1262 | 1062 | 888 | 737 | 606 | 495 | High 1.9 | Zero | Drop 8.8 | Drop 26.1 | Drop 53.9 | 0.398 | 0.208 |
| 108 Grain | ELD Match | Hornady | 2750 | 2596 | 2447 | 2302 | 2162 | 2027 | 1813 | 1616 | 1435 | 1271 | 1121 | 985 | High 1.9 | Zero | Drop 8.1 | Drop 23.3 | Drop 46.5 | 0.536 | 0.261 |
| 162 Grain | ELD X | Hornady | 2940 | 2788 | 2640 | 2497 | 2358 | 2224 | 3109 | 2795 | 2507 | 2243 | 2000 | 1779 | High 1.4 | Zero | Drop 6.3 | Drop 18.0 | Drop 35.7 | 0.631 | 0.287 |
| 145 Grain | ELD X | Hornady | 2970 | 2795 | 2627 | 2465 | 2309 | 2159 | 2840 | 2515 | 2222 | 1956 | 1716 | 1501 | High 1.4 | Zero | Drop 6.4 | Drop 18.4 | Drop 36.9 | 0.536 | 0.270 |
| 225 Grain | ELD Match | Hornady | 2810 | 2686 | 2565 | 2447 | 2332 | 2220 | 3945 | 3604 | 3286 | 2991 | 2717 | 2462 | High 1.7 | Zero | Drop 7.2 | Drop 20.3 | Drop 39.8 | 0.777 | 0.339 |
| 147 Grain | ELD Match | Hornady | 2910 | 2788 | 2669 | 2553 | 2440 | 2330 | 2764 | 2537 | 2325 | 2128 | 1944 | 1772 | High 1.4 | Zero | Drop 6.2 | Drop 17.6 | Drop 34.6 | 0.697 | 0.301 |

FAQs
1. What is a Hornady Ballistics Chart?
A Hornady Ballistics Chart provides ammunition performance data, including muzzle velocity, downrange velocity, and energy at specified distances. It helps readers compare different Hornady cartridges and bullet options.
2. Where can I find Hornady ammunition velocity data?
You can find velocity data in Hornady’s official ballistics charts and product information. The charts in this article include muzzle velocity and velocity measurements at 50 and 100 yards for the listed loads.
3. What does MUZ mean on a Hornady Ballistics Chart?
MUZ stands for muzzle. It refers to the velocity or energy measured at the point where the bullet leaves the firearm’s barrel.
4. What does FPS mean in Hornady ammunition charts?
FPS means feet per second. It is the unit used to measure bullet velocity, showing how fast a bullet travels.
5. What does FT/LB mean in a ballistics chart?
FT/LB stands for foot-pounds and measures kinetic energy. Hornady charts use this unit to show the bullet’s energy at the muzzle and specified distances.
6. Why does bullet velocity decrease over distance?
A bullet loses velocity as it travels because of air resistance. The amount of velocity lost depends on factors such as bullet design, weight, shape, and atmospheric conditions.
7. Why does Hornady list different barrel lengths for ammunition?
Barrel length can affect bullet velocity. Hornady provides barrel-length information to show the firearm configuration used when developing the listed ballistic data.
8. What is the difference between Hornady FTX and XTP bullets?
FTX bullets feature Hornady’s Flex Tip design, while XTP bullets are designed for controlled expansion. They have different constructions and intended applications, so their performance data should be compared by specific load.
9. Are Hornady ballistics chart values the same for every firearm?
No. Actual velocity and energy can vary depending on barrel length, firearm characteristics, ammunition lot, and environmental conditions. Published figures are reference data rather than guaranteed results for every firearm.
10. How do I compare two Hornady ammunition loads?
Compare their cartridge, bullet weight, barrel length, muzzle velocity, downrange velocity, and energy at the same distances. Make sure the figures come from comparable test conditions.
Reference: All data shared in the above tables/charts is referenced from official posted charts by Hornady Manufacturing, Inc.
