The best overall barrel length for the .400 Legend is 18 inches, providing the perfect balance of maximum kinetic energy and maneuverability in dense woods. Designed specifically for straight-wall cartridge hunting states, the .400 Legend requires sufficient barrel length to generate its massive 2,400 ft-lbs of energy, which a 20-inch factory-spec barrel achieves perfectly. However, an 18-inch barrel only sacrifices roughly 40 fps while swinging much faster inside a deer blind or tree stand. For shooters utilizing an AR-15 platform or a suppressor, a 16-inch barrel is highly practical, easily pushing 215-grain bullets past 2,150 fps while keeping the gun compact. Ultimately, lengths beyond 20 inches offer sharply diminishing velocity returns and add unnecessary weight to your hunting rifle.

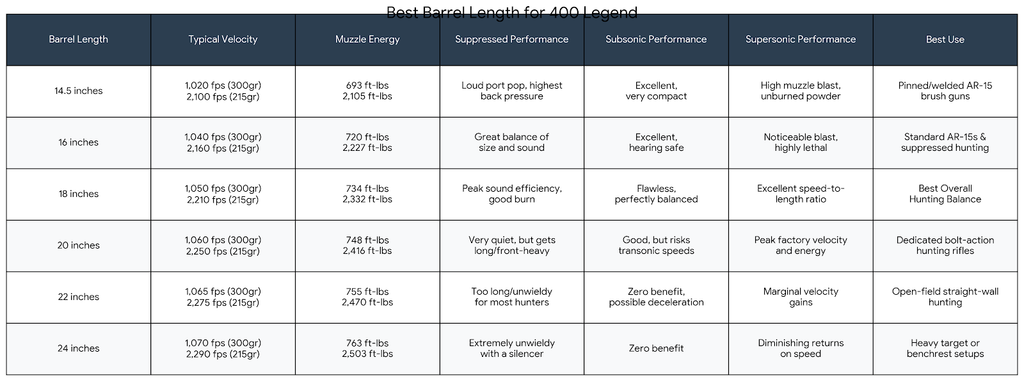

Best Barrel Length for 400 Legend
| Barrel Length | Typical Velocity | Muzzle Energy | Suppressed Performance | Subsonic Performance | Supersonic Performance | Best Use |
| 14.5 inches | 1,020 fps (300gr) 2,100 fps (215gr) | 693 ft-lbs 2,105 ft-lbs | Loud port pop, highest back pressure | Excellent, very compact | High muzzle blast, unburned powder | Pinned/welded AR-15 brush guns |
| 16 inches | 1,040 fps (300gr) 2,160 fps (215gr) | 720 ft-lbs 2,227 ft-lbs | Great balance of size and sound | Excellent, hearing safe | Noticeable blast, highly lethal | Standard AR-15s & suppressed hunting |
| 18 inches | 1,050 fps (300gr) 2,210 fps (215gr) | 734 ft-lbs 2,332 ft-lbs | Peak sound efficiency, good burn | Flawless, perfectly balanced | Excellent speed-to-length ratio | Best Overall Hunting Balance |
| 20 inches | 1,060 fps (300gr) 2,250 fps (215gr) | 748 ft-lbs 2,416 ft-lbs | Very quiet, but gets long/front-heavy | Good, but risks transonic speeds | Peak factory velocity and energy | Dedicated bolt-action hunting rifles |
| 22 inches | 1,065 fps (300gr) 2,275 fps (215gr) | 755 ft-lbs 2,470 ft-lbs | Too long/unwieldy for most hunters | Zero benefit, possible deceleration | Marginal velocity gains | Open-field straight-wall hunting |
| 24 inches | 1,070 fps (300gr) 2,290 fps (215gr) | 763 ft-lbs 2,503 ft-lbs | Extremely unwieldy with a silencer | Zero benefit | Diminishing returns on speed | Heavy target or benchrest setups |
Explaining the Results
The .400 Legend is a straight-walled cartridge introduced by Winchester in 2023, designed to deliver 20% more energy than the .350 Legend while maintaining manageable recoil. Because it utilizes relatively fast-burning powders suited for straight-wall cases, it achieves its maximum powder burn and peak efficiency within 16 to 20 inches of barrel.
Moving from a 20-inch barrel to a 24-inch barrel yields a marginal gain of only 40 fps, which translates to a negligible difference on target but makes the rifle significantly heavier. Conversely, dropping down to a 16-inch barrel retains enough velocity to humanely harvest deer at 200 yards while making the rifle incredibly easy to handle, especially if you plan to thread a suppressor onto the muzzle.
400 Legend 14.5 Inch Barrel
A 14.5-inch barrel (typically pinned and welded to 16 inches to avoid NFA SBR regulations) is a niche choice for the .400 Legend. While it makes for a fantastic close-quarters brush gun, the shorter barrel results in incomplete powder burn for standard 215-grain hunting loads. This increases muzzle flash and blast while dropping the kinetic energy closer to 2,100 ft-lbs.
400 Legend 16 Inch Barrel
A 16-inch barrel is the standard for AR-15 platforms chambered in .400 Legend. It offers an exceptional balance for hunters who want a lightweight, maneuverable rifle. When shooting suppressed, a 16-inch barrel prevents the rifle from feeling like a musket. It generates over 2,200 ft-lbs of energy with a 215-grain bullet, which is more than enough to take deer, hogs, and black bear within 200 yards.
400 Legend 18 Inch Barrel
The 18-inch barrel is the goldilocks zone for the .400 Legend. It bridges the gap between the compactness of an AR-15 and the ballistic superiority of a 20-inch bolt gun. An 18-inch barrel ensures a complete powder burn, which drastically reduces the muzzle blast and makes it an ideal host for a .46 caliber suppressor. It reliably delivers over 2,300 ft-lbs of energy.
400 Legend 20 Inch Barrel
Winchester developed the factory ballistics of the .400 Legend using a 20-inch barrel. If you want the exact 2,250 fps and 2,416 ft-lbs of energy advertised on the side of a box of 215-grain Power-Point ammo, you need a 20-inch barrel. This is the optimal length for hunters looking to maximize the cartridge’s 250-yard effective range in open fields.
400 Legend 22+ Inch Barrel
Barrels measuring 22 to 24 inches offer severely diminishing returns for the .400 Legend. Because the powder is completely burned by the 20-inch mark, the extra barrel length only provides a tiny increase in velocity (roughly 10 to 15 fps per inch). The added weight and cumbersome length make 22+ inch barrels impractical for woods hunting.
Subsonic vs Supersonic
Subsonic .400 Legend
Winchester supports the .400 Legend with heavy subsonic ammunition, such as the 300-grain Super Suppressed load. These rounds are designed to travel just below the speed of sound (~1,060 fps) to eliminate the loud sonic crack. The ideal barrel length for subsonic .400 Legend is 16 inches. This length stabilizes the heavy 300-grain bullet perfectly while keeping the suppressed rifle incredibly compact. Longer barrels add no meaningful velocity to subsonic rounds.
Supersonic .400 Legend
Supersonic loads (like the 190-grain Extreme Point and 215-grain Power-Point) are the primary reason the .400 Legend exists. These rounds are built to hit fast and hit hard. The best barrel length for supersonic .400 Legend is 18 to 20 inches. This ensures the bullet maintains enough velocity to expand reliably when hitting an animal at 200 to 250 yards.
400 Legend Velocity By Barrel Length
Chronograph data and ballistic trajectory modeling (using the 215-grain Winchester Power-Point and 300-grain subsonic loads) illustrate how the cartridge behaves across different lengths:
- 14.5-Inch Barrel: 1,020 fps (Sub) / 2,100 fps (Super)
- 16-Inch Barrel: 1,040 fps (Sub) / 2,160 fps (Super) — 2,227 ft-lbs
- 18-Inch Barrel: 1,050 fps (Sub) / 2,210 fps (Super) — 2,332 ft-lbs
- 20-Inch Barrel: 1,060 fps (Sub) / 2,250 fps (Super) — 2,416 ft-lbs
- 22-Inch Barrel: 1,065 fps (Sub) / 2,275 fps (Super) — 2,470 ft-lbs
- 24-Inch Barrel: 1,070 fps (Sub) / 2,290 fps (Super) — 2,503 ft-lbs
Does Barrel Length Affect 400 Legend Suppression?
Yes, barrel length heavily impacts how well the .400 Legend suppresses. Because it is a large-bore, straight-walled cartridge, it pushes a massive volume of gas out of the muzzle. If you use a barrel shorter than 16 inches, unburnt powder will eject into the suppressor, causing a loud secondary blast and increased back pressure.
An 18-inch barrel is arguably the best for suppression because it allows the powder to fully burn inside the bore. By the time the gas reaches the suppressor, it has cooled and dropped in pressure, allowing your silencer to trap the gasses far more efficiently.
Best Barrel Length By Use Case
| Use Case | Best Barrel Length | Why |
| Quietest Practical Setup | 18 inches | Complete powder burn prevents secondary detonation inside the silencer while keeping the gun balanced. |
| Subsonic Hunting | 16 inches | Keeps heavy 300gr rounds consistently below the sound barrier; highly maneuverable with a can. |
| Supersonic Hunting | 20 inches | Maximizes kinetic energy (2,416 ft-lbs) to ensure massive terminal expansion on large game. |
| Compact Suppressed Setup | 16 inches | Ideal for AR-15 hunters wanting a short overall length without violating NFA SBR rules. |
| Dense Woods/Brush | 16 inches | Swings fast, carries easy, and still delivers lethal energy at 100-yard distances. |
| Maximum Velocity | 24 inches | Squeezes every last drop of speed out of the cartridge, strictly for benchrest or open-field hunting. |
| Overall Balance | 18 inches | The perfect compromise between AR-15 compactness and bolt-action ballistic superiority. |
Suppressor Considerations
Because the .400 Legend utilizes a .4005-inch diameter bullet, you cannot use a standard .30 caliber suppressor. You must use a suppressor rated for .45 caliber or .46 caliber (such as those designed for the .450 Bushmaster or .45-70 Govt).
- Internal Volume: The .400 Legend creates a lot of gas. A large-volume suppressor (7 to 9 inches long) is required to effectively quiet the gun.
- Overall Length (OAL): Adding an 8-inch suppressor to a 20-inch barrel creates a sprawling 28-inch barrel profile. If you plan to hunt suppressed, dropping to a 16-inch barrel makes navigating a tree stand exponentially easier.
Hunting
The .400 Legend was built from the ground up to dominate the deer woods in states that restrict hunters to straight-walled cartridges (like Ohio, Michigan, and Iowa). It delivers 20% more energy than the .350 Legend and 25% less recoil than the .450 Bushmaster.
The best .400 Legend barrel length for hunting is 18 to 20 inches. Hunting bullets require speed to initiate expansion. At 20 inches, the 215-grain bullet leaves the muzzle at 2,250 fps and retains enough velocity to ensure devastating terminal ballistics out to 250 yards. Dropping below 16 inches drastically cuts your ethical hunting range.
Pros And Cons
Short Barrel Pros (14.5 to 16 inches)
- Perfectly sized for AR-15 platforms.
- Highly maneuverable in dense brush, hunting blinds, and vehicles.
- Ideal length for attaching a large .46 caliber suppressor without the gun becoming front-heavy.
- Optimized for 300-grain subsonic ammunition.
Short Barrel Cons (14.5 to 16 inches)
- Noticeable loss of kinetic energy (drops below 2,250 ft-lbs).
- Slightly reduced ethical hunting range on large game.
- More muzzle blast and flash when fired unsuppressed.
Longer Barrel Pros (18 to 22 inches)
- Maximizes supersonic velocity and kinetic energy (2,400+ ft-lbs).
- Achieves the factory-advertised ballistics (20-inch barrel).
- Complete powder burn results in quieter suppressed performance and less flash.
Longer Barrel Cons (18 to 22 inches)
- Creates a very long, heavy firearm when a suppressor is attached.
- Offers zero performance benefit for subsonic ammunition.
- Lengths past 22 inches provide almost unnoticeable velocity gains.
What Is The Best Barrel Length For 400 Legend?
The definitive best overall barrel length for the .400 Legend is 18 inches. It acts as the perfect middle ground, offering near-peak ballistic performance with a complete powder burn, while remaining short enough to swing easily in the woods.
If you are strictly hunting in open fields where maximum 250-yard energy is required, a 20-inch barrel is the ideal choice. However, if you are building an AR-15 or plan to thread a heavy .46 caliber suppressor onto your muzzle, a 16-inch barrel is incredibly practical and still delivers absolute sledgehammer-like performance on deer and hogs.
FAQs
What is the best barrel length for 400 Legend?
An 18-inch barrel is the best overall balance for the .400 Legend, while a 20-inch barrel is best for maximizing the cartridge’s velocity and 250-yard hunting range.
Is a 16 inch barrel good for 400 Legend?
Yes. A 16-inch barrel is excellent for the .400 Legend, especially on AR-15 platforms or when using a suppressor. It retains over 2,200 ft-lbs of energy, making it highly lethal on large game.
Does barrel length affect 400 Legend velocity?
Yes, up to a point. Moving from 16 to 20 inches gains you roughly 90 fps. However, barrel lengths past 20 inches offer very diminishing returns due to the cartridge’s fast-burning powder.
What is the best barrel length for subsonic 400 Legend?
A 16-inch barrel is ideal for subsonic .400 Legend. It ensures heavy 300-grain bullets stay comfortably below the sound barrier while keeping the suppressed rifle incredibly compact.
Can you suppress a 400 Legend?
Yes, but because the bullet diameter is .4005 inches, you must use a large-bore suppressor rated for .45 or .46 caliber cartridges.
What barrel length does Winchester use to test the 400 Legend?
Winchester established the factory ballistics (such as 2,250 fps for the 215-grain load) using a 20-inch test barrel.
Is 24 inches too long for a 400 Legend?
Yes. A 24-inch barrel adds unnecessary weight and length to the rifle while providing a negligible velocity gain over a 20-inch barrel, making it highly impractical for woods hunting.
