When selecting a rifle, consulting a barrel twist rate chart is essential for pairing your firearm with the correct ammunition. The most common modern barrel twist rates include 1:7 for 5.56 NATO, 1:8 for 6.5 Creedmoor, and 1:10 for .308 Winchester. A barrel’s twist rate dictates gyroscopic stability by imparting spin based on a projectile’s physical length and overall weight. Because modern monolithic and high-BC target bullets are exceptionally long, they generally require faster twist rates than traditional, shorter lead-core bullets. Always remember that different rifles, barrel lengths, and ammunition profiles can produce vastly different downrange stability and accuracy results.

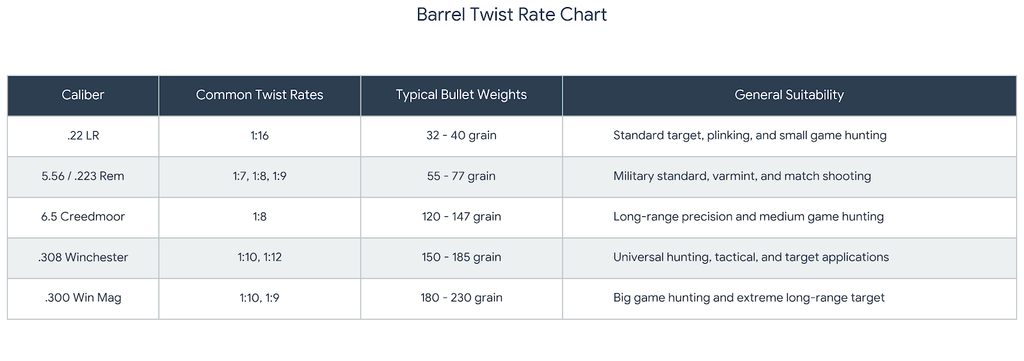

Barrel Twist Rate Chart
| Caliber | Common Twist Rates | Typical Bullet Weights | General Suitability |
| .22 LR | 1:16 | 32 – 40 grain | Standard target, plinking, and small game hunting |
| 5.56 / .223 Rem | 1:7, 1:8, 1:9 | 55 – 77 grain | Military standard, varmint, and match shooting |
| 6.5 Creedmoor | 1:8 | 120 – 147 grain | Long-range precision and medium game hunting |
| .308 Winchester | 1:10, 1:12 | 150 – 185 grain | Universal hunting, tactical, and target applications |
| .300 Win Mag | 1:10, 1:9 | 180 – 230 grain | Big game hunting and extreme long-range target |
Explaining The Chart
A rifle twist rate chart illustrates the ratio of barrel length required for the internal rifling to force the bullet to complete one full 360-degree rotation.
- What a 1:7 twist means: The bullet rotates once every 7 inches. This is a very fast twist rate, heavily utilized in modern 5.56 NATO AR-15s to stabilize long, heavy 77-grain match projectiles or long tracer rounds.
- What a 1:9 twist means: A versatile intermediate twist. In 5.56mm, it perfectly stabilizes mid-weight 55-grain to 62-grain bullets. In large magnums (like .300 WM), it is considered a fast twist for ultra-heavy target bullets.
- What a 1:10 twist means: The universal standard for .30-caliber rifles (such as .308 Win and .30-06 Springfield). It provides ideal stability for 150-grain to 180-grain hunting and target loads.
- What a 1:12 twist means: A slower twist rate. Common in older .308 Winchester target rifles and varmint .223 Remington rifles shooting highly frangible, lightweight bullets.
Twist rate stabilizes the projectile by creating gyroscopic stability, identical to how a precisely thrown football flies in a tight spiral rather than tumbling end-over-end.
Crucially, bullet length can matter as much as weight. The longer a bullet is, the more aerodynamic leverage the air has to try and flip the bullet backward. Therefore, a long, sleek bullet requires a faster twist rate to maintain its point-forward orientation than a short, blunt bullet of the exact same weight.
Twist Rate By Bullet Weight Comparison
| Caliber | Bullet Weight | Recommended Twist | Stability |
| 5.56 / .223 | 55 grain | 1:9 or 1:12 | Excellent |
| 5.56 / .223 | 62 grain | 1:8 or 1:9 | Excellent |
| 5.56 / .223 | 77 grain | 1:7 or 1:8 | Excellent (Requires fast twist) |
| .308 / 7.62 | 150 grain | 1:10 or 1:12 | Excellent |
| .308 / 7.62 | 175 grain | 1:10 | Excellent |
| 6.5 Creedmoor | 140 grain | 1:8 | Excellent |
Use real factory ammunition data when assessing your needs. Do not assume bullet weight alone determines the required twist rate. A 150-grain monolithic copper solid is physically longer than a 150-grain lead soft-point, meaning the copper bullet requires a faster twist to fly perfectly stable.
What Is The Best Barrel Twist Rate?
There is no single “best” barrel twist rate; it is entirely dependent on your caliber and the specific ammunition you intend to shoot. For a 5.56 NATO AR-15, a 1:8 twist is often considered the best all-around compromise for shooting everything from 55-grain range ammo to 77-grain match rounds. For a .308 Winchester hunting rifle, a 1:10 twist is universally recognized as the best option.
Barrel Twist Rate For 5.56 NATO / .223 Rem
The AR-15 platform features highly debated twist rates.
- 1:7 Twist: The military standard. Best for long, heavy bullets (69gr to 77gr) and monolithic copper rounds. It can occasionally over-spin highly frangible, ultra-light varmint bullets.
- 1:8 Twist: The modern “Goldilocks” twist. It safely stabilizes heavy 77gr match bullets while maintaining extreme accuracy with cheap 55gr plinking ammo.
- 1:9 Twist: The older civilian standard. Excellent for 55gr and 62gr (M855) ammunition, but will frequently fail to stabilize long 77gr match bullets.
Barrel Twist Rate For .308 Winchester
The .308 Winchester is traditionally offered in two primary twist rates:
- 1:10 Twist: The modern standard. It effortlessly stabilizes the widely popular 168-grain and 175-grain match bullets, as well as 150-grain to 180-grain hunting loads.
- 1:12 Twist: Often found on older hunting rifles or dedicated police sniper rifles built specifically for 168-grain MatchKing bullets. It struggles with modern, ultra-long 185+ grain high-BC bullets.
Barrel Twist Rate For 6.5 Creedmoor
Almost every factory 6.5 Creedmoor utilizes a 1:8 twist. The cartridge was explicitly designed to shoot long, high-Ballistic Coefficient (BC) bullets weighing between 140 and 147 grains. The 1:8 twist rate handles these incredibly aerodynamic projectiles perfectly, allowing them to cheat the wind at 1,000 yards.
Bullet Types
The physical construction of your projectile dramatically alters how it interacts with your barrel’s twist rate:
- Standard FMJ (Full Metal Jacket): Traditional lead-core range ammo. Usually features standard lengths and stabilizes easily in standard twists.
- HPBT (Hollow Point Boat Tail): Match ammunition designed for long-range precision. The sleek ogive and boat tail make these longer than FMJs, often requiring a slightly faster twist.
- Monolithic Solid: 100% copper bullets (like the Barnes TSX). Because copper is less dense than lead, these bullets must be physically longer to achieve the same weight, demanding a faster twist rate.
- Subsonic: Heavy bullets traveling below the speed of sound. They rely purely on mass for energy, making them extremely long and heavy for their caliber, requiring the fastest twist rates available (e.g., 1:5 in 300 Blackout).
Barrel Twist Rate And Bullet Stability
Gyroscopic stability is achieved through a scientific relationship between several physical factors.
When a bullet leaves the muzzle, it needs an optimal RPM (Rotations Per Minute) to overcome aerodynamic drag trying to flip it. This is determined by:
- Twist Rate: The mechanical rate of spin.
- Bullet Length: The primary aerodynamic factor; longer bullets need faster twists.
- Bullet Weight: Often used as a shorthand for length, but denser materials (lead) are shorter than lighter materials (copper) at the exact same weight.
- Velocity: Higher velocities naturally generate higher RPMs. A bullet fired at 3,200 fps might stabilize in a slow twist, while the same bullet fired at 1,000 fps (subsonic) will tumble violently from the same barrel.
- Atmosphere: Dense, cold air at sea level requires more rotational stability to cut through than thin, hot air at high altitudes.
Do not claim that every bullet of the same weight requires exactly the same twist rate. Length and velocity are the true deciding factors.
Barrel Length
A persistent myth in the firearms world is that barrel length changes your twist rate. It does not.
Twist rate is the physical, mechanical spiraling cut into the steel of the bore. A 16-inch barrel with a 1:8 twist imparts the exact same rate of rotation relative to distance traveled as a 24-inch barrel with a 1:8 twist. Barrel length determines how long the expanding gasses push the bullet (muzzle velocity), which slightly impacts total RPMs, but it does not change the physical twist rate of the barrel itself. Do not confuse barrel length with twist rate.
Accuracy
Matching your barrel twist rate to your ammunition is the foundational step for rifle accuracy.
If a bullet is insufficiently stabilized (shot through a barrel with too slow of a twist), it will yaw in flight. This drastically opens up group sizes before eventually causing the bullet to “keyhole”—striking the paper target sideways.
If a bullet is excessively stabilized (spun far faster than mathematically necessary), centrifugal force can magnify microscopic imperfections in the bullet’s jacket or lead core. This causes the bullet to wobble slightly off its axis, degrading precision at long ranges. Extreme over-stabilization of thin-jacketed varmint bullets can even cause them to rip apart in mid-air.
Best Twist Rate By Use
| Caliber / Use Case | Recommended Twist Rate | Typical Bullet Weight |
| 5.56 AR-15 (All-Purpose) | 1:8 | 55 – 77 grain |
| 5.56 AR-15 (Match / Heavy) | 1:7 | 69 – 77 grain |
| .308 Win (Hunting/Match) | 1:10 | 150 – 175 grain |
| 6.5 Creedmoor (Precision) | 1:8 | 140 – 147 grain |
| 300 Blackout (Subsonic) | 1:5 or 1:7 | 200 – 220 grain |
| .22 LR (General Purpose) | 1:16 | 36 – 40 grain |
Pros And Cons
Slower Twist Rates
(Examples: 1:12 in .308, 1:9 in 5.56)
- Pros: Highly accurate with traditional, lightweight, and standard-length hunting ammunition; prevents the over-spinning and mid-air destruction of thin-jacketed varmint bullets.
- Cons: Will completely fail to stabilize modern, ultra-long, high-BC match bullets and heavy monolithic copper hunting rounds, resulting in keyholing.
Faster Twist Rates
(Examples: 1:7 in 5.56, 1:8 in .300 WM)
- Pros: Safely and accurately stabilizes the longest, heaviest, most aerodynamic projectiles on the market; an absolute necessity for extreme long-range shooting and dedicated subsonic suppressed rifles.
- Cons: Can slightly degrade the accuracy of cheap, lightweight range ammo; can cause ultra-light frangible bullets to self-destruct from excess centrifugal force.
Barrel Twist Rate Chart: Which Twist Rate Is Best?
When referencing a barrel twist rate chart, the final verdict is that you must choose a twist rate tailored to the specific ammunition you intend to shoot the most.
- For 5.56 / .223 Shooters: The 1:8 twist is the best all-around choice. It handles cheap 55gr range ammo flawlessly while retaining the ability to shoot premium 77gr defensive and match loads.
- For .308 Winchester Shooters: The 1:10 twist is undisputed. It provides peak stability for everything from 150-grain deer loads to 175-grain sniper ammunition.
- For Long-Range Precision (6.5 CM): Stick with the industry standard 1:8 twist to maximize the aerodynamic efficiency of long VLD (Very Low Drag) bullets.
- For Rimfire (.22 LR): The 1:16 twist remains the optimal choice for universally stabilizing standard 40-grain rimfire loads.
FAQs
What is a barrel twist rate?
A barrel twist rate refers to the rate of spin in a rifle’s bore, measured by the distance (in inches) it takes for the rifling to complete one full 360-degree rotation.
What does a 1:8 twist rate mean?
A 1:8 twist rate means that the rifling grooves inside the barrel force the projectile to make one complete revolution for every 8 inches it travels forward.
What is the best twist rate for 5.56?
For general use, a 1:8 twist is considered the best all-around twist rate for 5.56, as it stabilizes cheap 55-grain range ammo as well as heavy 77-grain match bullets.
What is the best twist rate for 308?
The universally accepted best twist rate for a .308 Winchester is 1:10, which perfectly stabilizes standard 150-grain to 180-grain projectiles.
Does bullet weight affect twist rate?
Yes, but indirectly. Heavier bullets are generally longer, and longer bullets require a faster twist rate to maintain gyroscopic stability in flight.
Does bullet length affect twist rate?
Absolutely. Bullet length is the primary aerodynamic factor in stabilization. Longer, sleeker bullets demand a faster rate of twist to keep from tumbling end-over-end.
Does barrel length affect twist rate?
No. Twist rate is the physical machining inside the barrel. Barrel length determines how long the bullet spends in the bore (affecting velocity), not the mechanical rate of twist.
What happens if the twist rate is too slow?
If a twist rate is too slow, the bullet will not spin fast enough to stabilize. It will yaw in flight, lose accuracy, and eventually tumble, hitting the target sideways (keyholing).
What happens if the twist rate is too fast?
If a twist rate is unnecessarily fast, it can over-spin a lightweight bullet, magnifying microscopic imperfections in the bullet’s weight distribution and mildly degrading long-range precision.
Why do copper bullets need a faster twist rate?
Copper is less dense than lead. To make a copper bullet weigh the same as a lead bullet, it must be manufactured physically longer. This added length requires a faster twist to properly stabilize.
What is a 1:10 twist good for?
A 1:10 twist is the industry standard for .30-caliber rifles (like .308 Win and .300 Win Mag) and is ideal for stabilizing 150-grain to 180-grain bullets.
What is a 1:7 twist good for?
A 1:7 twist is a fast spin rate used primarily in 5.56 NATO rifles to stabilize extremely long, heavy bullets, such as 77-grain OTM match rounds or military tracer ammunition.
How do I find my barrel’s twist rate?
Most modern rifles have the twist rate (e.g., “1:8”) stamped directly on the side of the barrel near the caliber designation. You can also manually measure it using a tight-fitting cleaning rod and a patch.
