The .454 Casull is an incredibly powerful rimmed, straight walled centerfire revolver cartridge featuring a standard maximum bullet diameter of 0.452 inches (11.48 mm). The maximum case length is 1.383 inches (35.13 mm), and the maximum overall cartridge length (OAL) is specified at 1.765 inches (44.83 mm) to ensure compatibility with heavy duty revolver cylinders. The case utilizes a prominent rim diameter of 0.512 inches (13.00 mm) and maintains a uniform straight body diameter of 0.480 inches (12.19 mm) from the base to the neck. Ammunition for this caliber is most commonly found in 240 grain, 260 grain, and 300 grain bullet weights, though heavier hard cast options are widely available. Exact dimensions and operating pressures can vary slightly depending on manufacturing tolerances and whether you reference American SAAMI specifications or European C.I.P. standards.

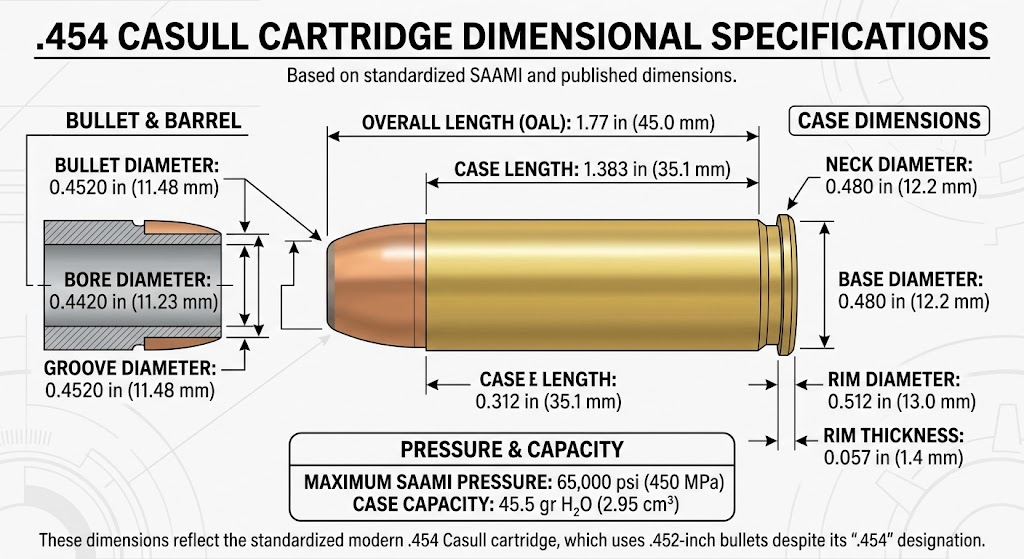

.454 Casull Cartridge Dimensions
| Dimension | Specification | Source | Notes |
| Bullet Diameter | 0.452 in (11.48 mm) | SAAMI | Standard for modern firearms; typically matches the .45 Colt. |
| Case Length | 1.383 in (35.13 mm) | SAAMI | Maximum case length; trim to length is typically 1.373 in. |
| Overall Cartridge Length | 1.765 in (44.83 mm) | SAAMI | Maximum overall length for standard heavy frame revolver cylinders. |
| Rim Diameter | 0.512 in (13.00 mm) | SAAMI | Maximum rim diameter. |
| Case Diameter (Base) | 0.480 in (12.19 mm) | SAAMI | Maximum diameter measured at the base. |
| Shoulder Diameter | N/A | N/A | Straight walled cartridge, no shoulder. |
| Neck Diameter | 0.480 in (12.19 mm) | SAAMI | Maximum external diameter at the case mouth. |
| Base Diameter | 0.480 in (12.19 mm) | SAAMI | Uniform with the neck due to the straight walled design. |
| Case Capacity | ~ 46.0 to 47.0 gr H2O | Industry | Varies based on brass manufacturer and internal wall thickness. |
| Maximum Pressure | 65,000 psi | SAAMI | C.I.P. maximum is 3,900 bar (approximately 56,564 psi). |
Understanding The .454 Casull Cartridge Dimensions
- Bullet Diameter: The measurement across the widest point of the bullet. For the .454 Casull, this is specified as 0.452 inches. This dimension ensures the projectile seals properly within the barrel rifling to trap expanding gases and generate extreme muzzle energy for big game hunting.
- Case Length: The length of the empty brass cylinder from the base to the case mouth, maxing out at 1.383 inches. This extended case length is a deliberate safety feature designed to physically prevent the high pressure .454 Casull cartridge from chambering in older, weaker firearms built for the .45 Colt.
- Overall Cartridge Length (OAL): The total length of the fully assembled round from the base to the tip of the bullet, strictly capped at 1.765 inches. OAL directly influences whether a cartridge will fit inside the cylinder of a heavy frame revolver without binding the cylinder rotation.
- Rim Diameter: The diameter of the flange at the very bottom of the case measuring 0.512 inches. The revolver cylinder uses this prominent rim to securely headspace the cartridge and to extract the spent casings.
- Case Diameter: The width of the cartridge body. The .454 Casull is a straight walled case, meaning the base diameter (0.480 inches) and the neck diameter (0.480 inches) are identical on unfired brass.
- Case Capacity: Measured in grains of water, this represents the internal volume of the empty case. Averaging 46.0 to 47.0 grains of water, this case has a massive internal volume designed to hold large charges of slow burning magnum pistol powders.
- Maximum Pressure: The peak internal pressure generated when the cartridge is fired. Standard SAAMI limits set this at a staggering 65,000 psi. This makes the .454 Casull one of the highest pressure handgun cartridges in the world, requiring specially heat treated five shot cylinders in many revolver designs.
.454 Casull Cartridge Dimensions In Inches And Millimeters
For engineers, reloaders, and international shooters, below are the primary .454 Casull measurements converted accurately between imperial and metric systems.
| Dimension | Inches (SAAMI Max) | Millimeters (Equivalent) |
| Bullet Diameter | 0.452 in | 11.48 mm |
| Case Length | 1.383 in | 35.13 mm |
| Overall Length | 1.765 in | 44.83 mm |
| Rim Diameter | 0.512 in | 13.00 mm |
| Base Diameter | 0.480 in | 12.19 mm |
| Neck Diameter | 0.480 in | 12.19 mm |
.454 Casull Case Dimensions
The .454 Casull is defined by a rimmed, heavily reinforced straight walled case. The official maximum case length is 1.383 inches (35.13 mm), with a nominal trim to length for reloaders sitting at 1.373 inches. The base diameter measures 0.480 inches, and the rim diameter extends significantly wider to 0.512 inches.
Because the .454 Casull operates at rifle like pressures of 65,000 psi, the brass case is manufactured completely differently than standard revolver brass. The case web (the solid brass section at the base of the cartridge) is substantially thicker and stronger than a .45 Colt case to prevent catastrophic case head separation upon ignition. Small rifle primers are also used instead of large pistol primers because the thicker cup of a small rifle primer can withstand the 65,000 psi pressure without piercing.
.454 Casull Bullet Diameter
The standardized maximum bullet diameter for modern .454 Casull ammunition is 0.452 inches (11.48 mm).
Despite its name, the cartridge does not use a 0.454 inch bullet. Dick Casull originally experimented with 0.454 inch bullets in the late 1950s when developing the wildcat cartridge, but when the round was eventually commercialized and standardized by SAAMI in 1998, the industry adopted the 0.452 inch bullet diameter. This allows ammunition manufacturers and handloaders to utilize the massive existing supply of .45 Colt and .45 ACP projectiles, provided the bullets feature thick enough copper jackets to survive the extreme velocities of the .454 Casull.
The standard .454 Casull barrel features a groove diameter of 0.452 inches and a bore or land diameter of 0.442 inches, matching standard .45 Colt bore specifications.
.454 Casull Overall Length
The SAAMI maximum overall cartridge length (OAL) for the .454 Casull is 1.765 inches (44.83 mm). This number is a hard limit designed to guarantee that the bullet tip will not protrude past the front face of a standard heavy frame revolver cylinder like the Ruger Super Redhawk or Taurus Raging Bull.
Typical factory cartridge length varies based on the bullet profile. A classic 260 grain or 300 grain jacketed soft point often measures exactly at or near the maximum 1.765 inches. Modern jacketed hollow points or lightweight solid copper bullets might be seated slightly shorter. If a reloader exceeds 1.765 inches with a heavy hard cast lead bullet, the nose of the projectile will bind against the forcing cone of the barrel and physically prevent the cylinder from rotating.
.454 Casull Chamber And Cartridge Dimensions
The relationship between the .454 Casull cartridge and the firearm chamber is adapted specifically for extreme pressure revolvers. The .454 Casull cartridge headspaces on its 0.512 inch rim.
This means the protruding rim of the brass casing physically stops against the rear cylinder face. Because it headspaces on the rim, the overall case length does not dictate how deep the cartridge drops into the chamber. This design allows revolver cartridges to employ an incredibly heavy roll crimp. A roll crimp physically bends the case mouth into a cannelure or crimp groove on the bullet. This heavy crimp is absolutely mandatory for the .454 Casull. The violent recoil generated by 65,000 psi loads will act as a kinetic hammer, pulling uncrimped bullets out of their cases in adjacent cylinders, which will instantly lock up the revolver.
.454 Casull Dimensions vs Similar Cartridges
To understand the .454 Casull size profile, it is helpful to compare it against other popular big bore magnum handgun cartridges.
| Cartridge | Bullet Diameter | Case Length | Overall Length | Rim Diameter | Maximum Pressure | Source |
| .454 Casull | 0.452 in | 1.383 in | 1.765 in | 0.512 in | 65,000 psi | SAAMI |
| .45 Colt | 0.452 in | 1.285 in | 1.600 in | 0.512 in | 14,000 psi | SAAMI |
| .460 S&W Mag | 0.452 in | 1.800 in | 2.300 in | 0.512 in | 65,000 psi | SAAMI |
| .44 Magnum | 0.429 in | 1.285 in | 1.610 in | 0.514 in | 36,000 psi | SAAMI |
| .500 S&W Mag | 0.500 in | 1.625 in | 2.300 in | 0.556 in | 60,000 psi | SAAMI |
.454 Casull vs .45 Colt Dimensions
The .454 Casull was developed directly from the .45 Colt by lengthening the case and strengthening the web. Their dimensional relationship is identical to the relationship between the .38 Special and the .357 Magnum.
- Bullet and Rim Dimensions: Both cartridges use the exact same 0.452 inch bullet diameter, the exact same 0.480 inch base diameter, and the exact same 0.512 inch rim diameter.
- Case Length Difference: The .454 Casull case (1.383 inches) is intentionally manufactured exactly 0.098 inches longer than the .45 Colt case (1.285 inches).
- Pressure Differences: Standard .45 Colt operates at a very mild 14,000 psi. The .454 Casull generates a massive 65,000 psi.
Because of this specific dimensional design, a short .45 Colt cartridge can be loaded and fired safely in any .454 Casull revolver. However, the elongated 1.383 inch case of the .454 Casull physically prevents it from fully chambering in a weaker .45 Colt revolver. This dimensional offset protects shooters from catastrophic firearm failures.
.454 Casull SAAMI vs C.I.P. Dimensions
Cartridge dimensions and safe pressure limits are governed by SAAMI in the United States and C.I.P. in Europe.
While the physical dimensional specifications for the .454 Casull are functionally identical between the two bodies to ensure global compatibility, the way they measure and report pressure differs significantly. SAAMI lists the maximum average pressure for the .454 Casull at 65,000 psi, measured via conformal piezoelectric transducers. C.I.P. lists the maximum pressure for the exact same cartridge at 3,900 bar, which translates to approximately 56,564 psi. These are not contradictory safety standards. They are the result of different testing methodologies and transducer placement locations inside the test barrels. Ammunition loaded to SAAMI specs is completely safe in C.I.P. proofed firearms, and vice versa.
.454 Casull Bullet Weight And Dimensions
The .454 Casull is widely loaded in several common bullet weights, which alter how the internal dimensions of the cartridge are configured.
- 240 to 260 grain: These lighter bullets leave maximum case capacity for heavy charges of gunpowder, resulting in massive velocities often exceeding 1,800 feet per second.
- 300 grain: The traditional standard weight for large game hunting. These longer bullets take up more space inside the brass case, offering incredible momentum and deep penetration on dangerous game like brown bears.
- 360 to 395 grain: Extremely heavy hard cast lead bullets designed strictly for maximum penetration. To maintain the 1.765 inch maximum revolver length, these massive bullets must be seated very deeply into the powder column, requiring specialized reloading data.
Bullet weight does not change the standardized external brass case dimensions. However, because a heavier bullet is physically longer, the manufacturer must adjust the seating depth to ensure the loaded round still fits inside the cylinder. Furthermore, bullets designed for the .454 Casull must feature thick, heavy duty copper jackets, as the extreme rotational forces and velocities can cause standard thin jacketed .45 Colt bullets to physically disintegrate in flight.
Why .454 Casull Dimensions Matter
Understanding the specific .454 Casull dimensions is essential for several practical reasons.
- Cylinder Binding: The strict 1.765 inch overall length defines whether a cartridge will function in a revolver. Handloaders who seat their bullets too shallow will lock up their firearm the moment the cylinder tries to rotate past the forcing cone.
- Primer Selection: Because the base dimensions of the .454 Casull mirror the .45 Colt, novice reloaders sometimes mistakenly use large pistol primers. The .454 Casull was dimensionally engineered to use small rifle primers to contain the 65,000 psi pressures. Using pistol primers will result in pierced primers and gas blowback into the firing pin channel.
- Firearm Safety: Knowing the dimensions allows shooters to understand that it is perfectly safe to fire .45 Colt ammunition in a .454 Casull revolver, giving shooters a low recoil option for practice.
Manufacturer Specifications vs Independent Measurements
If you use calipers to measure factory .454 Casull ammunition from companies like Federal, Winchester, or Hornady, the numbers will rarely match the SAAMI maximum specifications exactly.
SAAMI and C.I.P. publish maximum allowable dimensions to ensure absolute safety and compatibility across all firearm brands. Ammunition manufacturers purposefully produce their cases slightly smaller than these maximums. For example, measuring a factory cartridge and finding a case length of 1.375 inches or an OAL of 1.750 inches does not mean the ammunition is defective. It means the manufacturer built in a reliable negative tolerance margin to guarantee the ammunition will load easily into tight match grade revolver cylinders under field conditions.
Common Questions
What are the dimensions of the .454 Casull?
The key maximum dimensions are a bullet diameter of 0.452 inches, a case length of 1.383 inches, and an overall cartridge length of 1.765 inches.
What is the .454 Casull case length?
The maximum SAAMI case length is 1.383 inches (35.13 mm).
What is the .454 Casull overall length?
The maximum overall length (OAL) is 1.765 inches (44.83 mm).
What is the .454 Casull bullet diameter?
Modern .454 Casull bullets measure 0.452 inches in diameter, identical to standard .45 Colt bullets.
What is the .454 Casull rim diameter?
The rim diameter measures 0.512 inches (13.00 mm).
What is the .454 Casull case diameter?
The .454 Casull is a straight walled cartridge, meaning the case diameter is uniformly 0.480 inches from the base to the neck.
How do .454 Casull and .45 Colt dimensions compare?
They share the exact same bullet diameter and base diameter, but the .454 Casull is intentionally manufactured with a longer 1.383 inch case to prevent it from chambering in older .45 Colt firearms.
Why is it called the .454 Casull if the bullet is 0.452 inches?
The creator, Dick Casull, originally experimented with 0.454 inch bullets in the 1950s. When the cartridge was formally standardized in 1998, the industry adopted the 0.452 inch diameter to utilize existing projectile tooling, but kept the famous .454 name.
What is the maximum overall length of the .454 Casull?
The absolute maximum allowed by SAAMI is 1.765 inches to ensure the bullet does not bind against the front of a standard heavy frame revolver cylinder.
What is the .454 Casull maximum pressure?
The SAAMI maximum average pressure is a massive 65,000 psi, making it one of the highest pressure handgun cartridges in commercial production.
