The 45 Colt is a standardized rimmed centerfire revolver cartridge featuring a maximum case length of 1.285 inches (32.64 mm) and a maximum overall cartridge length of 1.600 inches (40.64 mm). Based on official SAAMI and C.I.P. standards, the straight-walled case features a 0.512 inch rim diameter, a 0.480 inch base diameter, and a continuous 0.480 inch neck diameter without a shoulder. Published specifications represent maximum material conditions, though physical measurements may vary slightly depending on manufacturing tolerances across different brass brands.

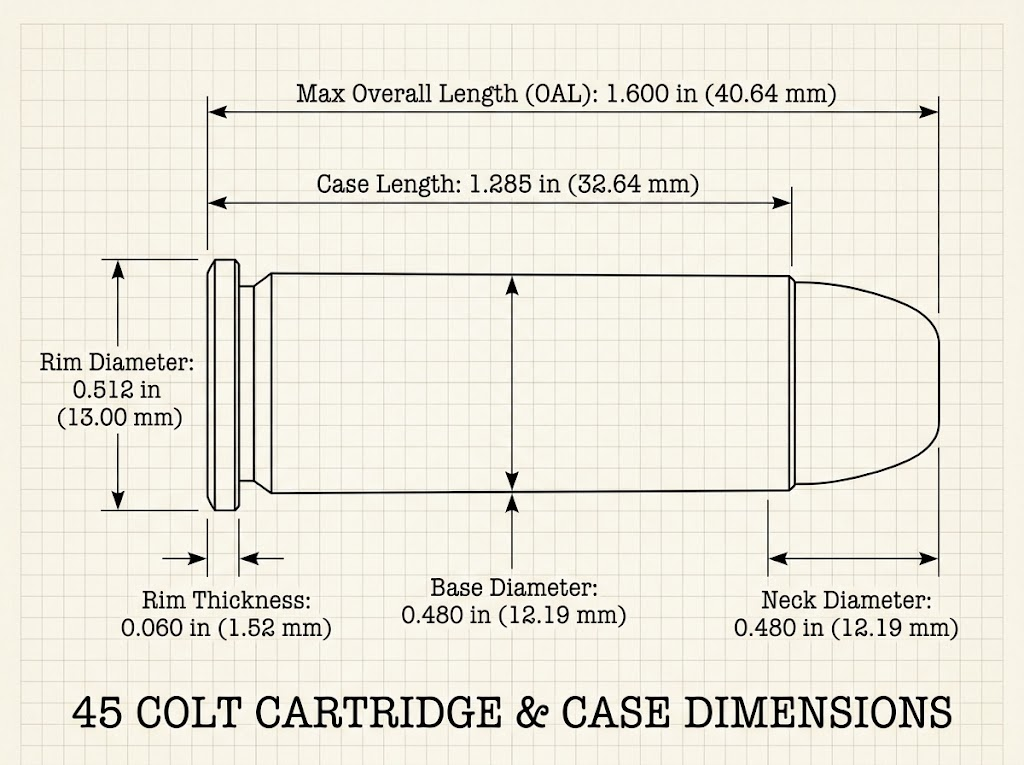

45 Colt Case Dimensions
| Case Dimension | Inches | Millimeters | Specification Type | Source | Notes |
| Case Length | 1.285 | 32.64 | Maximum | SAAMI / C.I.P. | Standard trim to length is 1.275 in. |
| Rim Diameter | 0.512 | 13.00 | Maximum | SAAMI / C.I.P. | Dictates revolver cylinder spacing. |
| Rim Thickness | 0.060 | 1.52 | Maximum | SAAMI / C.I.P. | Controls cylinder headspacing. |
| Base Diameter | 0.480 | 12.19 | Maximum | SAAMI / C.I.P. | Measured just above the rim. |
| Shoulder Diameter | N/A | N/A | N/A | SAAMI | Straight-walled case. |
| Neck Diameter | 0.480 | 12.19 | Maximum | SAAMI / C.I.P. | Outside case mouth diameter. |
| Neck Length | N/A | N/A | N/A | SAAMI | Straight-walled case. |
| Shoulder Angle | N/A | N/A | N/A | SAAMI | Straight-walled case. |
| Overall Length | 1.600 | 40.64 | Maximum | SAAMI / C.I.P. | Fits standard revolver cylinders. |
| Case Capacity | ~41.0 | 2.66 cm³ | Nominal (H2O) | Industry Std. | Varies by brass manufacturer. |
| Maximum Pressure | 14,000 | 96.53 MPa | Max Average | SAAMI (Piezo) | C.I.P. specifies 15,954 psi (1100 bar). |
Understanding The 45 Colt Case Dimensions
To understand how the 45 Colt interacts with a revolver cylinder and lever action rifle chamber, you must analyze its discrete geometric components. Because it is a straight-walled cartridge designed originally for black powder, its geometry serves a different engineering purpose than modern bottleneck rifle cases.
- Case Length: Measured from the base of the rim to the case mouth. This dimension dictates the space available for powder and determines exactly where the cartridge mouth crimps into the bullet.
- Rim Diameter and Thickness: The rim prevents the cartridge from slipping forward through the revolver cylinder chamber. The thickness determines exactly how the cartridge headspaces against the frame.
- Base Diameter: This is the width of the main cartridge body just ahead of the rim. Because there is no shoulder taper, the base diameter establishes the primary dimension for the rest of the case.
- Shoulder Diameter and Geometry: The 45 Colt does not have a shoulder. It is a cylindrical, straight-walled design.
- Neck Diameter and Length: Without a shoulder step, the case maintains a continuous 0.480 inch diameter from the base directly to the case mouth. The case relies on heavy bullet tension and a rolled crimp at the mouth rather than a dedicated neck segment.
- Overall Cartridge Length (OAL): The measurement from the case base to the tip of the seated bullet. It dictates whether the bullet will fit inside the revolver cylinder without protruding and binding the cylinder rotation.
- Case Capacity: The internal volume of the case, generally expressed in grains of water (gr H2O). This dictates the maximum powder charge the cartridge can hold safely.
45 Colt Case Dimensions In Inches And Millimeters
Official standardization bodies use different base measurement systems. SAAMI specifications rely heavily on inches, whereas European C.I.P. standards utilize metric parameters.
| Dimension | Measurement (Inches) | Measurement (Millimeters) |
| Maximum Case Length | 1.285 in | 32.64 mm |
| Maximum Rim Diameter | 0.512 in | 13.00 mm |
| Maximum Base Diameter | 0.480 in | 12.19 mm |
| Maximum Neck Diameter | 0.480 in | 12.19 mm |
| Maximum Overall Length | 1.600 in | 40.64 mm |
45 Colt Case Length
The published maximum case length for the 45 Colt is 1.285 inches (32.64 mm). Consistent case length is highly critical for straight-walled revolver cartridges.
Unlike bottleneck rifle cases that use a taper crimp, the 45 Colt relies on a heavy roll crimp applied at the case mouth. The brass is mechanically rolled into a groove on the bullet to prevent the bullet from migrating forward under heavy recoil. If the case length is inconsistent, the roll crimp will be applied unevenly, leading to inconsistent powder ignition and fluctuating pressures. Most handloaders trim their 45 Colt cases uniformly to a nominal 1.275 inches to ensure a perfect crimp on every round.
45 Colt Base And Rim Dimensions
The 45 Colt utilizes a rimmed design, but it historically featured a very narrow rim compared to its base diameter. The base diameter measures 0.480 inches, while the rim flares outward slightly to a maximum diameter of 0.512 inches.
The primary function of the rim is headspacing. The 0.060 inch rim thickness physically stops the cartridge against the rear face of the revolver cylinder, ensuring the primer is perfectly aligned with the firing pin. Because the 45 Colt was originally designed for the Colt Single Action Army ejector rod system, its original rim was very small. Modern solid head brass retains this 0.512 inch dimension, which can sometimes provide a minimal gripping surface for lever action rifle extractors compared to the wider rims of the 44 Magnum.
45 Colt Shoulder And Neck Dimensions
Because the 45 Colt is a straight-walled cartridge, it possesses absolutely zero shoulder diameter, shoulder angle, or distinct neck length.
The case body simply extends forward from the 0.480 inch base, retaining that exact 0.480 inch maximum external diameter all the way to the case mouth. The internal dimension of the case mouth measures slightly under the standard 0.452 inch bullet diameter, providing friction to hold the bullet securely in alignment before the heavy roll crimp is applied.
45 Colt Case Capacity
Case capacity heavily influences internal ballistics and powder selection. The nominal, industry accepted capacity for the 45 Colt is approximately 41.0 grains of water (H2O), or roughly 2.66 cubic centimeters.
This massive capacity is a historical artifact. The cartridge was designed in 1873 to hold 40 grains of black powder. Modern smokeless pistol powders are incredibly dense by comparison and take up very little physical space inside the large case. While standard SAAMI pressures remain low at 14,000 psi to protect antique firearms, this huge case volume allows modern firearms (like Ruger Blackhawks) to utilize heavy charges of slow burning powders to safely achieve magnum level velocities.
45 Colt Case Dimensions vs 44 Magnum
The 45 Colt and the 44 Magnum are often compared for hunting and outdoors applications.
| Dimension | 45 Colt | 44 Magnum | Source |
| Case Length | 1.285 in | 1.285 in | SAAMI |
| Rim Diameter | 0.512 in | 0.514 in | SAAMI |
| Base Diameter | 0.480 in | 0.457 in | SAAMI |
| Neck Diameter | 0.480 in | 0.457 in | SAAMI |
| Overall Length | 1.600 in | 1.610 in | SAAMI |
| Case Capacity | ~41.0 gr H2O | ~37.9 gr H2O | Standard Data |
| Max Pressure | 14,000 psi | 36,000 psi | SAAMI |
While both cartridges share the exact same 1.285 inch case length, they are dimensionally distinct. The 45 Colt is significantly wider, featuring a 0.480 inch base and firing a larger 0.452 inch bullet. The 44 Magnum uses a narrower 0.457 inch base to fire a 0.429 inch bullet. Because the 45 Colt is wider, it holds more powder capacity, but the wider case leaves less steel between the chambers in a revolver cylinder.
45 Colt Case Dimensions vs 454 Casull
The 454 Casull was developed by Dick Casull and Jack Fulmer as a high pressure magnum version of the 45 Colt.
They share the exact same 0.480 inch base diameter, 0.512 inch rim diameter, and 0.452 inch bullet diameter. The only dimensional difference is the case length. Designers intentionally lengthened the 454 Casull case to 1.383 inches compared to the 45 Colt 1.285 inches. This dimensional safety feature physically prevents a 65,000 psi 454 Casull cartridge from fully seating into a revolver cylinder cut for the low pressure 14,000 psi 45 Colt. A modern 454 Casull revolver, however, can safely chamber and fire the shorter 45 Colt cartridge.
45 Colt Case Dimensions vs 45 ACP
Despite both firing a .45 caliber bullet, the 45 Colt and the 45 ACP are fundamentally different designs for completely different weapon systems.
The 45 Colt is a long, rimmed revolver cartridge with a 1.285 inch case length and a 0.512 inch rim. The 45 ACP is a short, rimless semi-automatic pistol cartridge with a 0.898 inch case length and a 0.480 inch rimless base that headspaces on the case mouth. Their case dimensions are entirely incompatible.
45 Colt Chamber And Case Dimensions
A revolver cylinder chamber must be fractionally larger than the cartridge it accepts. The relationship between 45 Colt case dimensions and chamber dimensions centers entirely on the rim.
Because there is no shoulder, headspace for the 45 Colt is measured from the rear face of the cylinder to the recoil shield of the frame. The 0.060 inch rim thickness slots perfectly into this gap. Inside the cylinder, the chamber wall remains straight until it reaches a step called the chamber throat. This throat restricts the diameter down to match the 0.452 inch bullet, preventing the brass casing from moving any further forward and guiding the bullet into the forcing cone.
45 Colt Case Forming And Resizing
Because the 45 Colt is a straight-walled cartridge, handloaders can easily resize fired brass using standard tungsten carbide sizing dies. Carbide dies do not require case lubrication, which vastly speeds up the reloading process.
The 45 Colt cannot be formed from other common pistol cartridges. Its 0.480 inch base is unique among standard magnum revolver rounds, making proprietary 45 Colt brass a necessity for reloaders.
45 Colt Manufacturer Specifications vs Actual Measurements
There is a documented difference between absolute standards and the dimensions of a physical cartridge sitting on a reloading bench.
SAAMI lists maximum material conditions. Ammunition manufacturers intentionally produce brass slightly smaller than these maximums to guarantee their cartridges will extract cleanly from dirty or tightly machined revolver cylinders. Tolerance stacking between a minimum specification cartridge and a maximum specification chamber is completely safe due to the solid headspacing provided by the rim.
Common Questions
What are the 45 Colt case dimensions?
The key maximum case dimensions for the 45 Colt include a 1.285 inch case length, a 0.512 inch rim diameter, a 0.480 inch base diameter, and a continuous 0.480 inch case mouth (neck) diameter.
What is the 45 Colt case length?
The maximum SAAMI and C.I.P. case length for the 45 Colt is 1.285 inches (32.64 mm). The standard trim to length for reloading is typically 1.275 inches.
What is the 45 Colt rim diameter?
The 45 Colt rim diameter is 0.512 inches (13.00 mm max).
What is the 45 Colt base diameter?
The base diameter of the 45 Colt, measured just above the rim, is 0.480 inches (12.19 mm max).
What is the 45 Colt shoulder diameter?
The 45 Colt is a straight-walled cartridge and does not possess a shoulder. The case maintains a uniform 0.480 inch maximum diameter from the base to the mouth.
What is the 45 Colt neck diameter?
Because the case is straight-walled, the maximum outside diameter at the case mouth (neck) remains 0.480 inches (12.19 mm).
What is the 45 Colt case capacity?
The nominal case capacity of the 45 Colt is approximately 41.0 grains of water (H2O), or 2.66 cubic centimeters.
What is the 45 Colt overall length?
The maximum overall cartridge length for the 45 Colt is 1.600 inches (40.64 mm) under SAAMI specifications.
How does 45 Colt compare with 454 Casull case dimensions?
The 45 Colt and 454 Casull share the exact same 0.480 inch base diameter and 0.512 inch rim diameter. The only dimensional difference is the case length. The 454 Casull case is lengthened to 1.383 inches compared to the 45 Colt 1.285 inches.
Are 45 Colt and 45 ACP case dimensions the same?
No. The 45 Colt is a long, rimmed revolver cartridge with a 1.285 inch case length. The 45 ACP is a short, rimless semi-automatic pistol cartridge with a 0.898 inch case length. They are entirely incompatible.
What is the 45 Colt maximum pressure?
The SAAMI maximum average pressure for the 45 Colt is 14,000 psi (piezo method), purposely kept low for safety in antique revolvers. C.I.P. specifications rate the maximum pressure slightly higher at 15,954 psi (1100 bar). Modern hunting loads designed exclusively for strong Ruger or Thompson Center firearms often operate at significantly higher pressures well beyond official SAAMI specifications.
