The exact .45 ACP bullet diameter typically measures between 0.451 and 0.452 inches, which converts to 11.45 to 11.48 millimeters. While the .45 ACP is available in various bullet weights, the cartridge’s nominal projectile diameter remains consistent across all factory loads. This measurement refers specifically to the width of the bullet itself, which differs from the internal dimensions of the barrel. To ensure a tight gas seal upon firing, a standard .45 ACP barrel utilizes a narrower bore diameter of 0.442 inches. Jacketed bullets usually measure 0.451 inches, while cast lead bullets are sized slightly larger at 0.452 inches to properly engage the rifling.

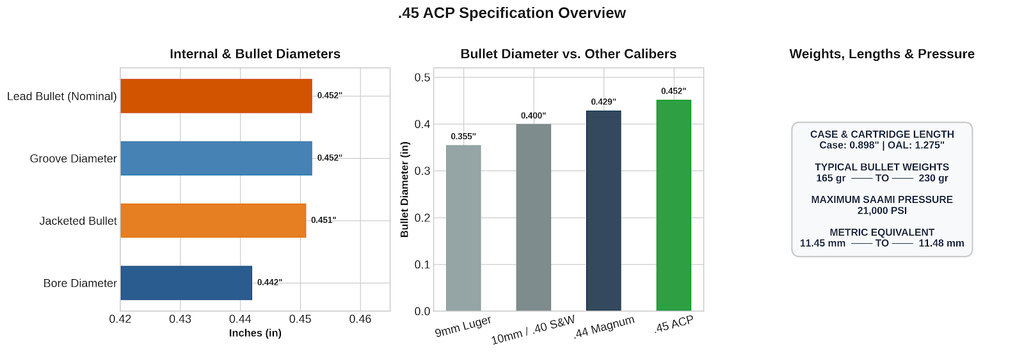

45 ACP Bullet Diameter
| Specification | .45 ACP |
| Nominal Bullet Diameter | 0.452 inches |
| Bullet Diameter In Inches | 0.451″ – 0.452″ |
| Bullet Diameter In Millimeters | 11.45 – 11.48 mm |
| Groove Diameter | 0.452 inches |
| Bore Diameter | 0.442 inches |
| Typical Bullet Weights | 165 gr to 230 gr |
| Case Length | 0.898 inches |
| Overall Cartridge Length | 1.275 inches |
| Maximum Pressure | 21,000 PSI |
What Is The 45 ACP Bullet Diameter?
The 45 ACP bullet diameter is the physical width of the unfired projectile seated in the cartridge case. Designed by John Moses Browning in 1904, the cartridge was engineered to fire a .45-caliber bullet to deliver significant stopping power for the U.S. military. The bullet must be wide enough to securely engage the barrel’s rifling but correctly sized to chamber reliably in semi-automatic pistols like the M1911.
45 ACP Bullet Diameter In Inches
According to the official Sporting Arms and Ammunition Manufacturers’ Institute (SAAMI) specifications, the 45 ACP bullet diameter in inches is standard at 0.451 inches for jacketed bullets and 0.452 inches for unjacketed cast lead bullets. Factory loaded ammunition will consistently fall within this 0.451″ to 0.452″ threshold.
45 ACP Bullet Diameter In Millimeters
For those using metric measurements, the 45 ACP bullet diameter in mm is typically listed between 11.45 mm and 11.48 mm. Because 1 inch equals 25.4 millimeters, multiplying a 0.451-inch bullet by 25.4 yields 11.455 mm, while a 0.452-inch bullet yields 11.48 mm.
45 ACP Bullet vs Bore Diameter
A common point of confusion is the difference between the bullet’s width and the barrel’s internal dimensions. The 45 ACP bore diameter is 0.442 inches. The bore diameter measures the distance across the “lands” (the raised portions of the rifling inside the barrel). The unfired 45 ACP projectile (0.451″–0.452″) is deliberately wider than the bore so the rifling can violently bite into the bullet jacket, imparting the stabilizing spin required for accuracy.
45 ACP Groove Diameter
The 45 ACP groove diameter typically measures 0.452 inches. The groove diameter measures the distance across the deepest cuts inside the rifled barrel. When the slightly oversized bullet is fired, it swages (squeezes) into the barrel, expanding to completely fill the 0.452-inch grooves. This creates a perfectly tight seal that traps the expanding powder gases behind the bullet.
45 ACP Bullet Weights
While the cartridge diameter is fixed, you can select vastly different projectile masses depending on your application. The 45 ACP bullet weight ranges from lightweight 165-grain hollow points up to the heavy, military-standard 230-grain ball ammunition. Changing the weight alters the bullet’s length, velocity, and felt recoil, but the diameter remains completely fixed at 0.451–0.452 inches.
Bullet Diameter vs Other Cartridges
Shooters must be careful when comparing caliber names, as the marketing name does not always reflect the exact physical measurement.
| Cartridge | Bullet Diameter | Diameter In mm |
| .45 ACP | 0.452″ | 11.48 mm |
| .45 Colt | 0.452″ | 11.48 mm |
| .44 Magnum | 0.429″ | 10.90 mm |
| 10mm Auto | 0.400″ | 10.16 mm |
| .40 S&W | 0.400″ | 10.16 mm |
| 9mm Luger | 0.355″ | 9.02 mm |
Key Insight: Notice that the .44 Magnum actually fires a .429-inch bullet, making it significantly narrower than the .45 ACP, despite the way the numbers might intuitively sound to a beginner.
Bullet Weight
Ammunition manufacturers have developed multiple specialized loads for the 45 ACP over its century of service.
| Bullet Weight | Example Load | Bullet Type | Advertised Velocity |
| 165 grain | Federal Hydra-Shok | JHP | 1,060 fps |
| 185 grain | Underwood +P | JHP | 1,200 fps |
| 230 grain | Winchester | FMJ | 835 fps |
| 230 grain | Double Tap | FMJ | 960 fps |
Velocities represent typical factory test barrel data.
Dimensions
To understand how the cartridge safely fits into the 1911 platform and modern polymer handguns, here are the complete SAAMI-verified 45 ACP dimensions:
| Dimension | Measurement |
| Bullet Diameter | 0.452″ |
| Groove Diameter | 0.452″ |
| Bore Diameter | 0.442″ |
| Case Length | 0.898″ |
| Overall Length | 1.275″ |
| Base Diameter | 0.476″ |
| Neck Diameter | 0.473″ |
| Rim Diameter | 0.480″ |
| Rim Thickness | 0.049″ |
| Maximum Pressure (SAAMI) | 21,000 PSI |
45 ACP vs 45 Colt
Because both cartridges share a 0.452-inch bullet diameter, many shooters wonder how the 45 ACP compares to the classic .45 Colt (often called .45 Long Colt).
Despite sharing a bullet diameter, they are entirely different cartridge designs:
- Platform: The .45 Colt is a rimmed, straight-walled revolver cartridge developed in 1872 for the Colt Single Action Army. The .45 ACP is a much shorter, rimless cartridge designed specifically to auto-load in magazine-fed semi-automatic pistols.
- Dimensions: The .45 Colt has a much longer case (1.285 inches) compared to the .45 ACP (0.898 inches).
- Interchangeability: They are completely incompatible. You cannot load .45 ACP into a standard .45 Colt revolver cylinder (without specialized moon clips and specific cylinder cuts), nor can you fit a massive .45 Colt round into a 1911 magazine.
45 ACP Bullet Diameter: Exact Measurement
The exact .45 ACP bullet diameter is 0.451 to 0.452 inches, or 11.45 to 11.48 millimeters.
While the actual projectile measures 0.452 inches across, it is violently forced through a barrel with a 0.442-inch bore diameter and a 0.452-inch groove diameter,. This intentional sizing discrepancy forces the copper jacket or lead casting of the bullet to squeeze tightly into the barrel’s rifling grooves. This process creates a perfect pressure seal behind the bullet, preventing the 21,000 PSI of expanding gases from escaping past the projectile while simultaneously ensuring the bullet stabilizes in flight,.
FAQs
What is the bullet diameter of 45 ACP?
The nominal bullet diameter is 0.451 inches for jacketed rounds and 0.452 inches for cast lead rounds.
What is 45 ACP bullet diameter in mm?
In metric measurements, the diameter translates to 11.45 mm – 11.48 mm.
Is 45 ACP actually .45 inches?
Yes, it is true to its name. The actual projectile measures 0.451–0.452 inches across, making it a true .45 caliber.
What is the bore diameter of 45 ACP?
The barrel’s internal bore diameter (measured land-to-land) is 0.442 inches.
What is the groove diameter of 45 ACP?
The barrel’s internal groove diameter (measured groove-to-groove) is 0.452 inches.
What bullet weights are available for 45 ACP?
Factory loads typically range from lightweight 165-grain defense rounds up to traditional 230-grain ball ammunition.
What is the case diameter of 45 ACP?
The case is nearly perfectly straight-walled. It has a base diameter of 0.476 inches and narrows imperceptibly down to a neck diameter of 0.473 inches.
How does 45 ACP bullet diameter compare with 9mm?
A standard 9mm Luger bullet measures 0.355 inches, making the .45 ACP (0.452 inches) almost a full tenth of an inch wider.
How does 45 ACP bullet diameter compare with 44 Magnum?
The 45 ACP (0.452″) is wider than the .44 Magnum, which utilizes a smaller 0.429-inch projectile.
Is 45 ACP the same as 45 Colt?
No. They share the same bullet diameter (0.452″), but the .45 Colt is a long, rimmed revolver cartridge, while the 45 ACP is a short, rimless semi-automatic pistol cartridge.
